Name: 4K60 Zero Delay Video Wall Controller with 1 HDMIDP Input and 6 HDMI Outputs for MultiScreen Display
Brand: Bitvisus
Price: 1 USD

Home >

4K60 Zero Delay Video Wall Controller with 1 HDMI/DP Input and 6 HDMI Outputs for Multi-Screen Display

Categories	Video Wall Controller
Brand Name:	Bitvisus
Place of Origin:	Guangdong, China
MOQ:	1
Price:	Contact us
Model Number:	BIT-VWC-106
Certification:	CE,HDMI,HDCP,RoHS,FCC
Payment Terms:	T/T,PayPal
Supply Ability:	1000
Delivery Time:	5-8 days
Packaging Details:	37247
Input interface:	HDMI 2.0/DP 1.2, HDCP2.2
Output interface:	HDMI 1.3x6 (≤15m)
Input pixel frequency:	600MHz
Output pixel frequency:	165MHz
Input resolution:	3840x2400@60Hz
Output resolution:	1920x1080@60Hz/1920x1200@60Hz
Sound frequency:	HDMI follow out, 3.5mm audio splitter connector
Control method:	Pushbutton, infrared remote control, serial port RS232
Power supply:	DC 12V 2A
Power wastage:	12W
Storage temperature:	-10～50ºC
Working temperature:	0～50ºC
Package weight:	1.6KG
Material:	Metal
Rotation support:	180°

Contact Now

Add to Cart

Company Info.

Shenzhen Bitvisus Technology Limited

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

4K60 Zero Delay Video Wall Controller with 1 HDMI/DP Input and 6 HDMI Outputs for Multi-Screen Display

BIT-VWC-106 Video Wall Controller

Factory Direct 2x2 2x3 Video Wall with 1 HDMI/DP Input, 6 HDMI Outputs, Zero Delay 4K60 Video Wall Controller for Exhibition Display Large Screen

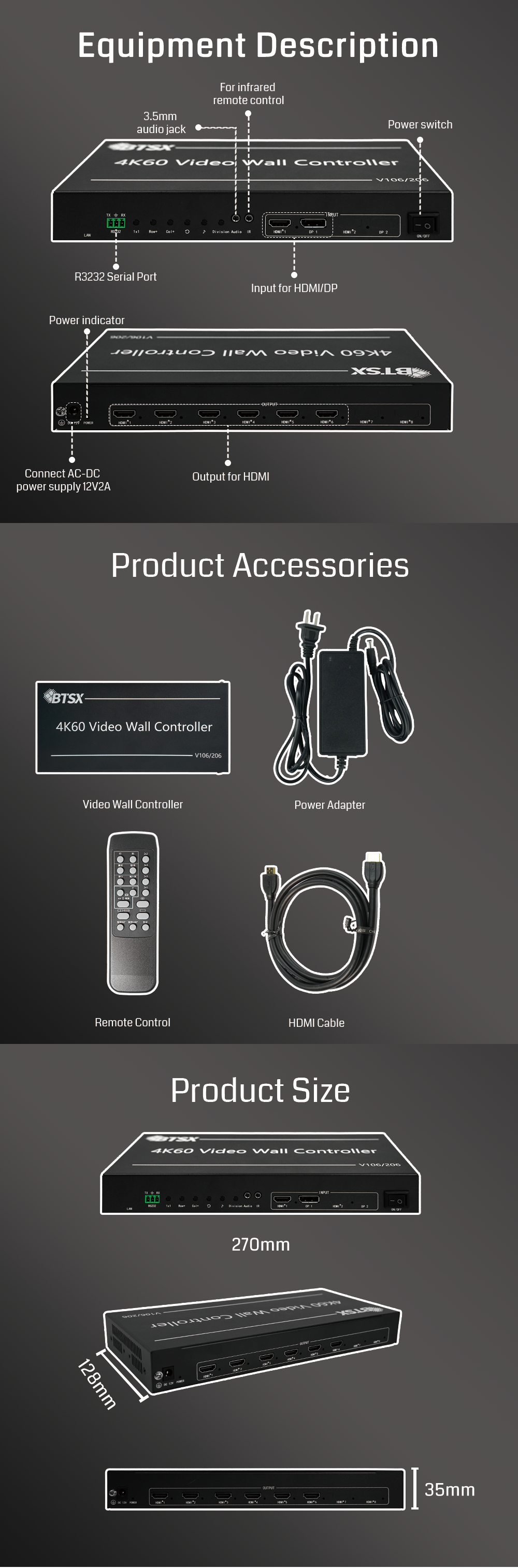

BIT-VWC-106 Video Wall Controller front view

Product Features

1 HDMI/DP input interface with 6 HDMI output interfaces

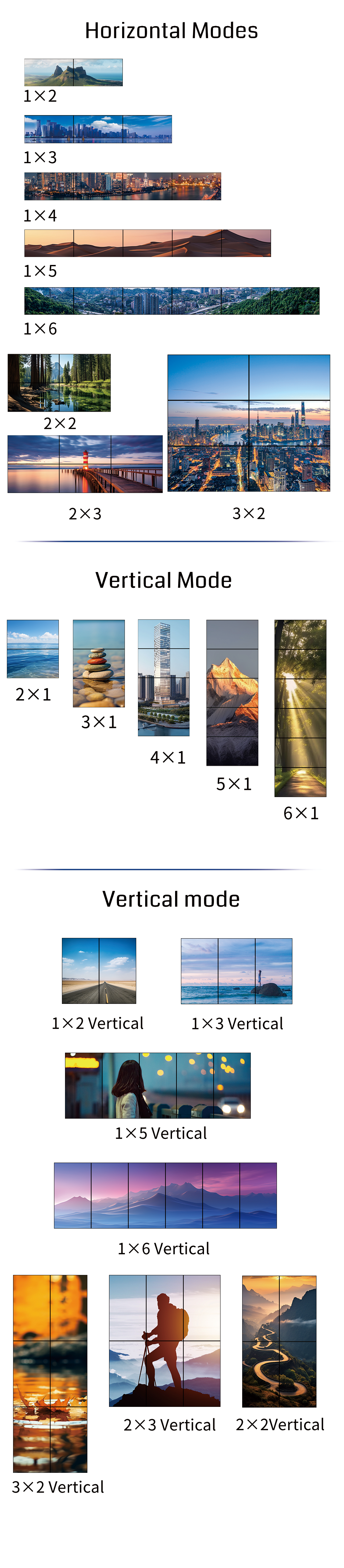

Supports various splicing modes: horizontal, vertical, and field shape combinations
Input supports up to 3840x2400@60Hz with backward compatibility
Output supports single channel up to 1920x1200@60Hz
180° rotation capability for first line output
No stretching, distortion, or compression of input source
Supports single display mode (1x1)
Multiple control methods: pushbutton, infrared remote control, RS232 serial port
Low power consumption with internal conduction heat dissipation

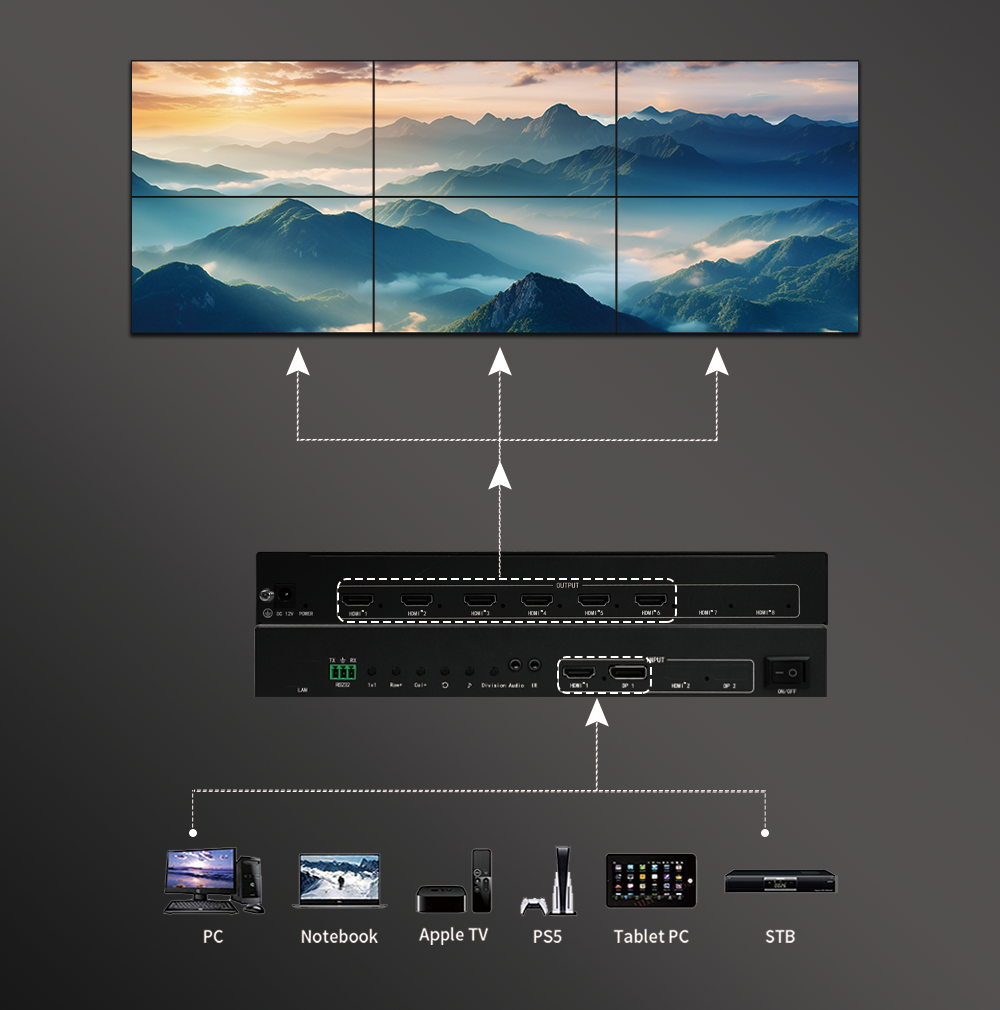

Compatible with computers, Android boxes, game consoles, and other devices
40nm process high-end programmable FPGA chip for ultra-fast processing without delays

Product Images

BIT-VWC-106 Video Wall Controller side view

Technical Specifications

Product Name	BIT-VWC-106
Input Interface	HDMI 2.0/DP 1.2, HDCP2.2
Output Interface	HDMI 1.3 x 6 (≤15m)
Input Video Pixel Frequency	600MHz
Output Video Pixel Frequency	165MHz
Input Resolution	2x3: 5760x2160@30Hz 3x2: 3840x3240@30Hz 5x1: 1920x5400@30Hz 6x1: 1920x6480@30Hz
Output Resolution	1920x1080@60Hz / 1920x1200@60Hz
Audio	HDMI follow out, 3.5mm audio splitter connector
Control Method	Pushbutton, infrared remote control, serial port RS232
Power Supply	DC 12V 2A
Power Consumption	12W
Storage/Working Temperature	-10～50ºC / 0～50ºC
Package Weight	1.6KG
Warranty	3 Years
