| Categories | Digital Platform Scale |
|---|---|
| Brand Name: | SMARTWEIGH |
| Model Number: | HTW-B6 |
| Place of Origin: | China |
| Certification: | ISO/CE/SGS |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T,L/C,Western Union,MoneyGram |
| Supply Ability: | 2000 Sets/Month |
| Delivery Time: | 3-5 weeks |
| Packaging Details: | Foam and Carton |
| Type: | Digital Platform Scale |
| Maximum Capacity: | 150kg |
| Readability: | 50g |
| Material: | Platform: Stainless Steel Terminal: Plastic |
| Interfaces: | RS232 |
| Applictaion: | Parcel Weighing |
| Customization: | Available |
| Company Info. |
| SMARTWEIGH INSTRUMENT CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Designed for highway authorities to effectively detect overloading and ensure compliance, this system also serves as a reliable solution for static weighing in industrial environments like factories, mines, ports, and construction sites. It is the trusted solution for handling low-value bulk materials.
| Specification | Unit | Value |
|---|---|---|
| Rate load | t | 20 |
| Sensitivity | mV/V | 0.5±0.2 |
| Total error | %FS | ±0.2 |
| Zero balance | %FS | ±1 |
| TC0 | %F.S/10℃ | ±0.1 |
| TC Span | %F.S/10℃ | ±0.1 |
| Input Resistance | Ω | 3500±50 |
| Output Resistance | Ω | 3500±10 |
| Insulation Resistance | MΩ | 5000MΩ |
| Compensated Temp Range | ℃ | 40 |
| Operating Temp Range | ℃ | 40 |
| Safe Load | %F.S | 120 |
| Lateral Load Limit | %F.S | 150 |
| Recommend Excitation | V DC | 5 12 |
| Maximum Excitation | V DC | 15 |
| Protection Class | IP66 |

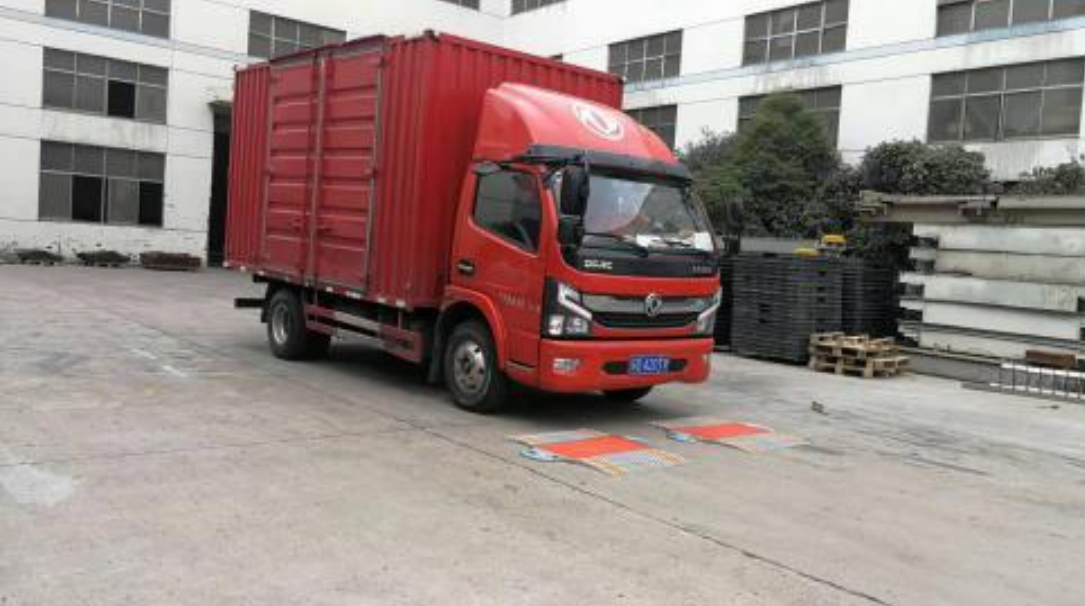

1.Used by traffic and road departments to check highway vehicle overload, aiding their work.
2.Used for static weighing of low-value materials in factories, mines, docks, freight yards and construction sites.

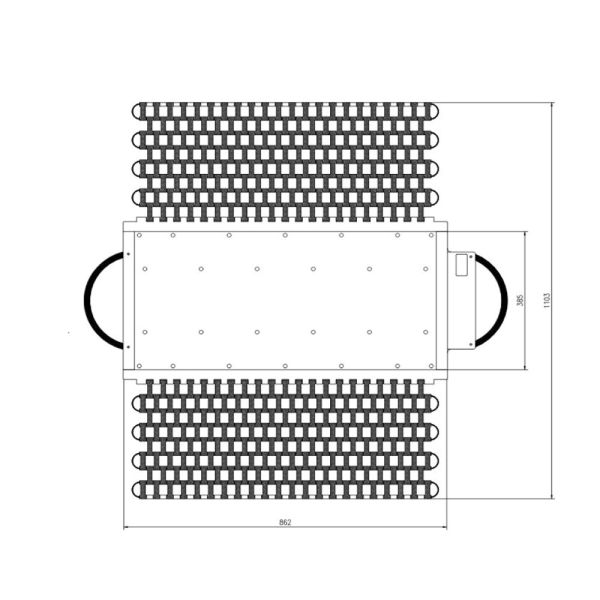

| Package Size (mm) | 1080*620*120 |
|---|---|
| Package Gross Weight | 33kg/one pad |

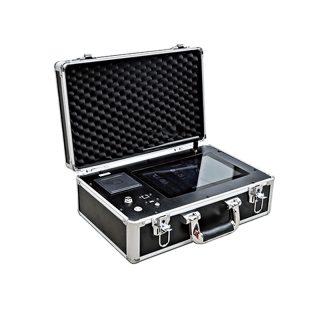

1. Features a 10.1-inch color touchscreen, offering high definition and user-friendly operation via touch or wireless mouse.
2. Runs on the Android OS for excellent compatibility and performance.
3. Dual-channel design with a high-precision integrated weighing platform ensures high detection accuracy and low failure rate.
4. Displays individual axle weights and total weight.
5. Data output via standard RS232/485 and USB2.0 interfaces.
6. Powered by a DC 10.8V lithium battery.
7. Built-in high-speed thermal printer for details like license plate number, total weight, load limit, time, and date.
| Indicator packing size(mm) | 500*350*240 |
|---|---|
| Indicator Weight | 9kg |
Let us know your requirement or application, we will give you a quotation in 24 hours. Then we will send the PI after you confirm the order.
Generally speaking, 1 piece for sample checking is available. But the sample price is high. In the mass production, unit price depends on the rough idea of Qty., the more the better.
Our products are rich in variety and can be used in petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry.
Our company is located in Changzhou, Jiangsu Province, China, just an hour's high-speed rail ride from Shanghai.
|
