| Categories | On Grid Controller |
|---|---|
| Brand Name: | Greef |
| Model Number: | AC PCS |
| Place Of Origin: | China |
| Certification: | CE |
| MOQ: | 1Set |
| Price: | Negotiable |
| Packaging Details: | Foam+plywooden Case |
| Delivery Time: | 25 Working Days |
| Payment Terms: | T/T,Western Union,,L/C |
| Supply Ability: | Supply Ability |
| Display Contents: | Generator Speed(rpm),Input Voltage (Vdc), Input Current(Vac) ,Output Power(kW), Grid Voltage (Vac),Grid Current(A), Power Generate Today(kWh),Power Generate This Month, Power Generate Last Month, Power Generate This Year, Power Generate Last Year,Power Cur |

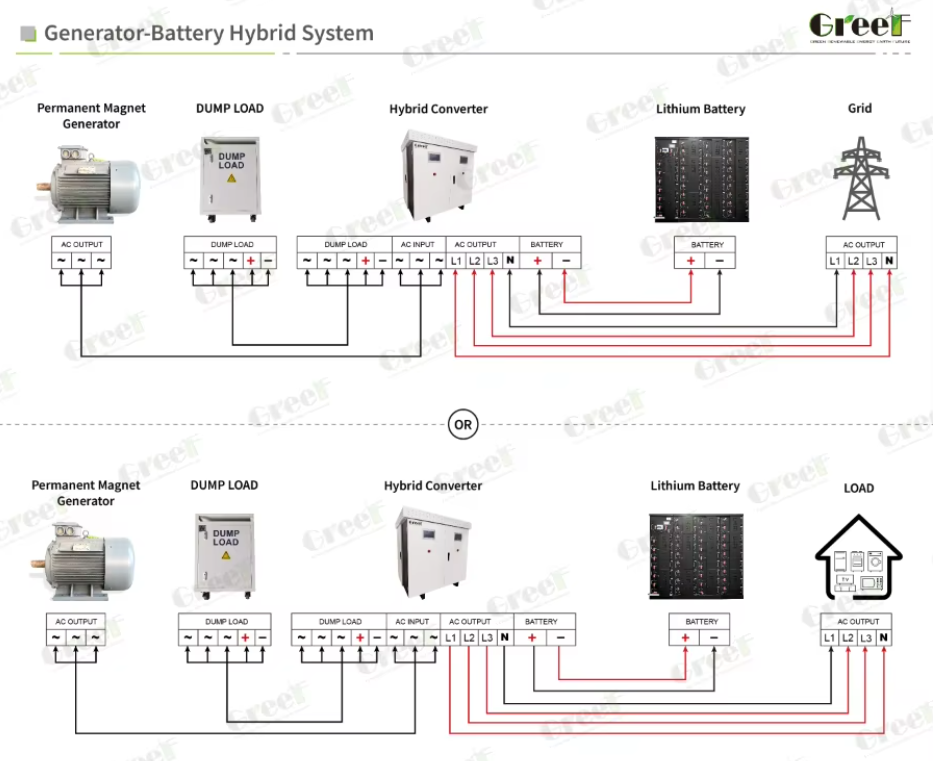

| Topology: | AC-DC Reticifier ,DC- DC Buck Boost ,DC-AC Invertor.EMS |
| Rated grid voltage(V): | 400 |
| Display: | LCD SMART Touch Screen |
| Maximum efficiency(%): | 95% |
| Communication mode: | Ethemet, RS485, WIFI |
| Cooling method: | Intelligent Air Cooling |
| AC votlage working range(Vac): | 240 ~ 550 |
| Company Info. |
| Qingdao Greef New Energy Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| Parameter Category | Specifications |
|---|---|
| Generator AC Input | Rated Power: 100 kW Rated Voltage: ≥320 Vac Optimal Voltage: 450 Vac Operating Range: 240-550 Vac Max AC Current: 180 A |
| Battery Input | Battery Type: Lithium-ion Voltage Range: 350-450 Vdc Rated Voltage: 400 Vdc Max Charge/Discharge Current: 250 A |
| Grid-Connected Output | Rated Power: 100 kW Maximum Power: 120 kW Rated Current: 144 A Max Current: 173 A Grid Voltage: 400 V Voltage Range: 300-460 V Grid Frequency: 50Hz/60Hz THD: <3% Power Factor: >0.99 |
| Performance & Protection | Maximum Efficiency: 95% Overload Capacity: 1.2x nominal power for 1 minute Operating Temperature: -40°C to 60°C Protection Level: IP54 Max Altitude: 4,000 meters |


|
