Fluke VT06 Visual IR Thermometer Infrared Thermometer VT06

Categories	Differential Pressure Gauge
Brand Name:	fluke
Model Number:	VT06
Certification:	/
Place of Origin:	China
MOQ:	1pc
Price:	USD 410/PC
Payment Terms:	T/T
Supply Ability:	1000pc/month
Delivery Time:	1-3 working days
Packaging Details:	original packing
Infrared resolution:	120×90
IR frequency band:	7.5~14 μm(long wave)
Frame rate:	9 Hz
Thermal sensitivity/NETD:	<60 mk
Spatial resolution:	7.6 mrad

Contact Now

Add to Cart

Company Info.

Mengchuan Instrument Co,Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

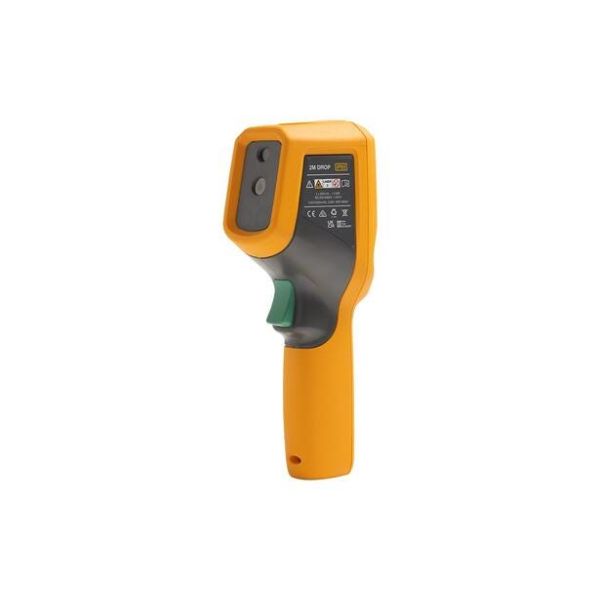

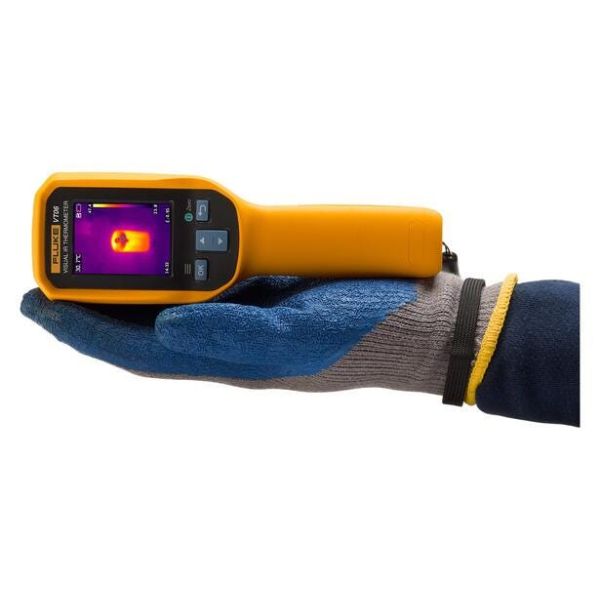

Fluke VT06 Visual IR Thermometer Infrared Thermometer VT06

Fluke VT06 Visual IR thermometer

Name: Fluke VT06 Visual IR Thermometer Infrared Thermometer VT06
Brand: fluke
Price: 410 USD

Model#: Fluke VT06

Key features

120 x 90 resolution for more details
Wide temperature range, -20°C to 400°C
IP65 rated for dust and water proof, 2m drop test, suitable for harsh industrial environments
Quickly locate the measured target with built-in laser pointer
2 hours charging time, 8 hours battery life
Single-level menu interface, Open-and-View

Product overview: Fluke VT06 Visual IR thermometer

Fluke VT series is built with legendary Fluke ruggedness and quality. With compact design and upgraded function, the temperature measurement is visualized, so that you can obtain a clear and accurate infrared thermal image.

Specifications: Fluke VT06 Visual IR thermometer

Thermal image and optics	VT08	VT06
Infrared resolution	120×90
IR frequency band	7.5~14 μm(long wave)
Frame rate	9 Hz
Thermal sensitivity/NETD	<60 mk
Field of view (H x V)	50° x 37.5°
Spatial resolution	7.6 mrad
Focus system	Focus free
Minimum focusing distance	0.5 m (19.7 in)
Visible light
Visible resolution	320×240	NA
Visible FOV (H x V)	53° x 41°	NA
Image display and storage
Image mode	Thermal image Visible image PIP	Thermal image
Palettes	Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal, Grayscale
Internal storage	>28GB (>100000 images) *14GB Internal Storage for VT06/VT08 manufactured before 6 Aug 2022.
File format	JPEG compression format (.jpg)
PIP mode	Yes	No
Temperature measurement
Temperature range	-20 °C to 400 °C [-4 °F to 752 °F] (not specified for below -10 °C)
Temperature accuracy	±2°C or 2% @ 23°C±5°C, whichever is greater
Emissivity	Adjustable
Background temperature compensation	Yes
Auto high-/low-temperature capture	Yes
Center point temperature	Yes
Alarm	Maximum/minimum temperature alarm in full screen
Interface and lens
Visible lens	Yes	No
Flashlight	Yes	No
Infrared lens	Yes
Laser sighting	Yes
Type-C interface	Yes
TF card slot	No
Tripod interface	Yes
Mobile App	No
Power system
Battery type	Rechargeable Li-ion battery, unremovable
Battery operation time	≥5 hrs (VT08) ≥8 hrs (VT06) Actual battery life depends on environment and settings
Charging Time	<2.5 hrs to full
Battery charging temperature	0 °C to 45 °C
Battery charging system	Charge in the machine (the battery is not removable)
AC adapter	Include power supply, universal adapter Output: 5 VDC, 2 A
Power saving mode	Yes
Environmental specifications
Operating temperature	-10 °C to 50 °C
Storage temperature	-40 °C to 70 °C
Operating altitude	2000 m (1.24 mi)
Storage altitude	12 000 m (7.5 mi)
Others
Warranty	1 year
Standard accessories	Wrist strap, quick reference guide, charger + adapter, Type-C data cable, data-downloading card
Display	6.096 cm (2.4-inch) LCD
Language	English
Size	20.4 cm x 6.6 cm x 7.6 cm
Weight	0.36 kg	0.35 kg
Relative humidity	≤90%, non-condensing
Safety
Safety standards	IEC 61010-1: Pollution Degree 2
Laser	IEC 60825-1: Class 2, 650 nm, <1 mW
Battery	IEC 62133-2, UN 38.3
Protection class	IEC 60529: IP65 (with Type-C port closed)
Drop test	2 m
Electromagnetic Compatibility (EMC)
International	IEC 61326-1: Industrial Electromagnetic Environment CISPR 11: Group 1, Class A
