The Industrial Control Integrated Machine centers on a modular
architecture, integrating high-performance processors,
industrial-grade capacitive/resistive touchscreens, and
multi-protocol communication interfaces (RS485/USB/HDMI) to meet
complex environmental demands. Its all-metal housing and IP65
protection design resist dust, water splashes, and electromagnetic
interference, support wide-temperature operation from -20℃ to 70℃,
and enable 7×24 continuous operation through a fanless cooling
structure. The device is compatible with Linux/Windows/Android
systems and supports remote OTA updates, fulfilling rapid iteration
needs in industrial scenarios.
Industry Applications: Deep Integration of Scenario-Specific
Solutions
Healthcare Sector
In operating rooms and imaging diagnostic centers, the Industrial
Control Integrated Machine, equipped with AI-assisted diagnostic
systems, analyzes CT/MRI images in real-time, reducing error rates
by 12% compared to manual analysis. In pharmacy automation, the
device utilizes RFID technology for drug tracking, increasing daily
sorting efficiency to 3,000 bottles/hour.
Financial Intelligent Terminals
Bank self-service terminals incorporate biometrics + encryption
modules, supporting dual fingerprint + facial recognition
authentication, shortening transaction response time to 0.8
seconds. The anti-glare fully laminated screen on ATM embedded
touch machines improves visibility under strong light by 40%,
reducing misoperation rates by 35%.
Energy Management and Industrial Control
In photovoltaic power stations, the device monitors inverter status
in real-time via Modbus protocol, combining edge computing to
predict power generation efficiency and lowering operational costs
by 20%. The human-machine interface for injection molding machines
supports gesture zooming of process parameter curves, achieving
millisecond-level operational response.
Education and Research Scenarios
In laboratory environments, the touch all-in-one serves as an
interactive terminal for experimental data visualization and
equipment control, enhancing teaching and research efficiency.
Innovation Trends: AIoT and Sustainable Design
AI-Powered Edge Decision-Making: Touch machines equipped with NPU
chips can locally execute defect detection algorithms, achieving
99.6% inspection accuracy on electronic assembly lines and reducing
reliance on cloud computing.
Green Manufacturing Practices: Using ABS eco-friendly materials and
low-power architecture (standby power <3W), compliant with RoHS
certification, helps enterprises achieve carbon neutrality goals.
Flexible Deployment Capabilities: Supports embedded, wall-mounted,
and pendant arm installation, with cutout dimensions compatible
with 10.4-32 inch standards, adapting to diverse deployment needs
like control cabinets and mobile carts.

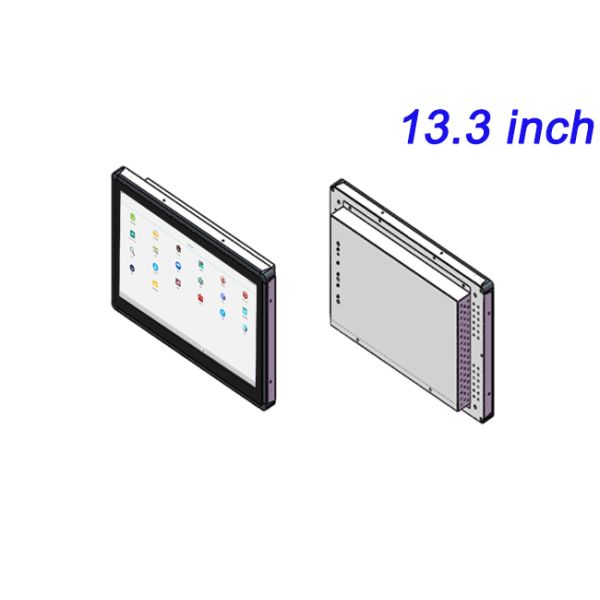

| LCD Panel Parameters | Screen Size | 13.3 Inch |
| Display Area | 293.76 mm.(Height) X 165.24(Width)mm. |
| Aspect Ratio | 16 : 9 |
| LCD Type | a-Si TFT-LCD Monitor |
| Maximum Resolution | 1920 X 1080 |
| Display Color | 262K, 45% NTSC |
| Brightness | 220cd/m² |
| Contrast Ratio | 800 : 1 |
| Viewing Angle (Up/Down/Left/Right) | 85°/85°/85°/85° (Type)(CR≥10) |
| Response Time | 30ms |
| LCD Panel Lifespan (Hours) | 60,000(Hour.) |
| Field Frequency | 60Hertz |
| Audio parameters | Audio system | Stereo |
| Speaker size | ≈ 99 x 45 x 20 mm |
| Impedance | 8 Ohm |
| Power | 2 x 5 Watt |
| Loudness | > 80 Decibel |
| Interface | 4-pin connector |
| Built-in Android PCB Configuration (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz |
| GPU | Mali-T764 | Mali-G52 |
| RAM | 2GB | 4GB |
| ROM | 32GB | 32GB |
| Android System | Android 10.0 | Android 13.0 |
| Ethernet | 1 x RJ45, 1,000 Mbps | Ethernet 1,000 Mbps |
| Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 |
| Bluetooth | 4.2 | 5 |
| Interface | USB2.0 x 2 | OTG USB2.0 x 1 |
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss | ≤ 25 Watt |
| Standby Mode Power Loss | < 1 Watt |
| Features | Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | Below 10℃ ~ +60℃ |
| Package Size | Device Dimensions | 339.4 X 213.4X 49mm. |
| Net Weight | 3 Kilogram |
| Package Size | 40 X 30 X 15Centimeter |
| Gross Package Weight per Unit | 4 Kilogram |
With industrial-grade reliability, scenario-specific adaptability,
and AIoT integration capabilities, the Industrial Control
Integrated Machine is evolving from a single interactive terminal
into a core control hub for smart manufacturing, smart cities, and
other fields, driving industrial equipment toward closed-loop
intelligence of "perception-decision-execution."
if you would like to get the specification about above product, or
you hope to discuss your requirements or need any additional
information on our this product , then please do not hesitate to
send us a inquiry and contact our sales team now.
