Fashionable Exterior: Fresh and Professional
Unlike traditional dark gray and black models, this series features
a high-gloss white shell, pure and elegant, compatible with
high-cleanliness environments such as medical facilities,
laboratories, commercial displays, retail, and precision
manufacturing. Paired with a unibody design, it offers a neat and
tidy appearance that adapts to various modern industrial space
decoration styles.
Flexible Installation: Meeting Diverse Deployment Needs
It supports multiple installation methods, including embedded,
wall-mounted, desktop, and ceiling-mounted, meeting flexible
deployment requirements for different application scenarios.
Whether embedded in control cabinets or installed with independent
brackets, it can be quickly set up, saving time and effort.
High-Definition Display: Vibrant Color Presentation
Equipped with an A+ grade high-quality IPS display, it delivers
true-to-life color reproduction and supports full-angle
high-definition viewing. With 16.7 million vibrant and realistic
colors, the screen remains clear and smooth from any viewing angle.
It is resistant to light reflection, making it suitable for various
environmental lighting conditions.
Industrial Quality: Reliable Performance
Built with an industrial-grade motherboard and a low-power,
high-performance processor, it is compatible with multiple system
platforms such as Windows and Linux, easily running various
industrial software and industry-specific custom applications.
It offers excellent anti-interference, dustproof, and shockproof
capabilities, supporting 7×24 stable operation and adapting to
long-term use in harsh environments.
Configurations include multiple standard industrial interfaces such
as USB, COM, HDMI, and LAN, meeting the needs of multi-device
collaboration.
It supports peripheral expansion, control system integration,
signal acquisition, and other application requirements, helping to
achieve automated intelligent management.

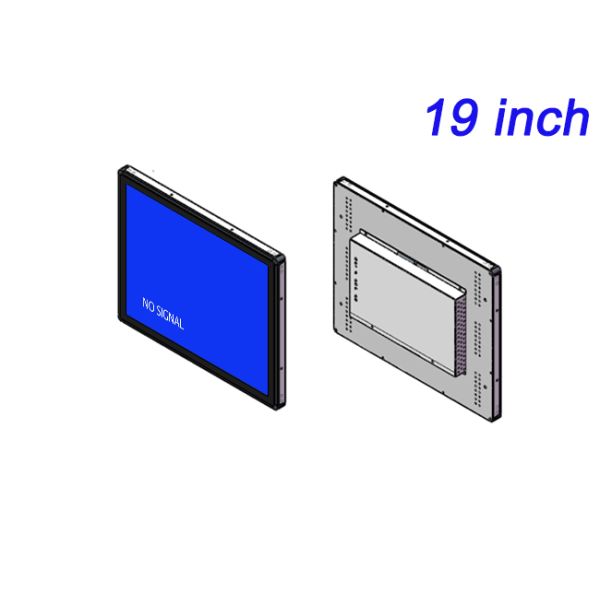

| LCD Panel Parameters | Screen Size | 19 Inch |
| Display Area | 375.2 mm.(Height) X 299.2(Width)mm. |
| Aspect Ratio | 4 : 3 |
| LCD Type | a-Si TFT-LCD Monitor |
| Maximum Resolution | 1280 X 1024 |
| Display Color | 16.7m , 73% NTSC |
| Brightness | 250cd/m² |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) |
| Response Time | 14ms |
| LCD Panel Lifespan (Hours) | 60,000(Hour.) |
| Field Frequency | 100Hertz |
Audio Parameters
(External Speaker Option) | Audio system | Stereo |
| Speaker size | ≈ 99 x 45 x 20 mm |
| Impedance | 8 Ohm |
| Power | 2 x 5 Watt |
| Loudness | > 80 Decibel |
| Interface | 4-pin connector |
| Onboard Interface | HDMI Input | 1 |
| VGA Input | 1 |
| DVI Input | 1 |
| USB Type B or any desired USB Type | 1 |
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss | ≤ 30 Watt |
| Standby Mode Power Loss | < 1 Watt |
| Features | Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | Below 10℃ ~ +60℃ |
| Accessories | Power Cord Length | 1.5m |
| HDMI Cable Length | 2m |
| USB-A to USB-B Cable Length | 1.5m |
| Stereo Speaker Size with Connector | 99*45*20mm |
| Stereo Speaker Length | 1.5m |
| Package Size | Device Dimensions | 422 X 346 X 51.7mm. |
| Net Weight | 6.5 Kilogram |
| Package Size | 47.4 X 40.6 X 10.1Centimeter |
| Gross Package Weight per Unit | 7 Kilogram |
Whether you are in smart healthcare, automated production,
information visualization terminals, or industrial human-machine
interaction platforms, this White High-definition LCD Screen will
empower and enhance your scenarios with its high aesthetics and
high performance.
