| Categories | Linear Voice Coil Motor |
|---|---|
| Brand Name: | SUPT MOTION |
| Model Number: | VCAB Series |
| Certification: | ISO9001,CE,3C |
| Place of Origin: | China,Suzhou |
| MOQ: | 1PCS |
| Price: | $110-$190 |
| Payment Terms: | T/T |
| Supply Ability: | To be negotiated |
| Delivery Time: | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Packaging Details: | Customized packaging etc. |
| Warranty: | 3months-1year |
| Product Model: | VCAB0044-0059-00A |
| Weight(g): | 43 |
| Peak Force (N): | 44 |
| Total Stroke (mm): | 5.9 |
| Max Voltage （V）: | 14.3 |
| Application: | Automatic Product |
| Speed: | High |
| Product Type: | Linear Voice Coil Motor |
| Commutation: | Brush |
| Continuous force(N): | 17.7N |
| Application Fields: | 3C Electronics, Semiconductor, Automation, Optics, Inspection Equipment |
| Precision: | High |
| Company Info. |
| Suzhou Unite Precision Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
SUPT's VCAB0044-0059-00A linear voice coil motor, with its high precision and high-speed performance, excels in semiconductor inspection equipment, automated optical inspection platforms, and advanced manufacturing systems. The motor features low damping and high bandwidth, maintaining minimal positioning errors and high repeatability during high-speed movements. Its cog-free design enables smoother displacement, making it especially suitable for micro-displacement adjustments, probe station positioning, dispensing, chip placement, test fixture positioning, and fast inspection platforms. Its outstanding acceleration capability also meets the strict requirements for rapid response on high-throughput production lines.
In semiconductor automation, the Linear Voice Coil Motor has become an essential actuator thanks to its high acceleration, nanometer-level precision, zero-cogging motion, and fast dynamic response. The direct-drive mechanism ensures ultra-smooth motion without mechanical backlash, enabling superior performance in wafer handling, micro-positioning, lithography autofocus systems, packaging alignment, and high-speed inspection platforms.
Stroke:5.9mm
Continuous Force:17.7N
Peak Force:44N
Force Constant:8N/A
Resistance:6.2Ω
Mass:good
Dimensions:200*400*400cm
Working Current:2.3A
| Product Model | Peak Force (N) | Continuous Force at 25℃(N) | Total Stroke (mm) | Max Voltage (V) | Back EMF Constant (V/m/s) | Weight of the coil (g) | Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |

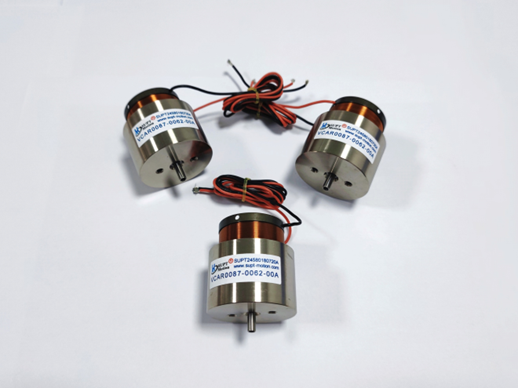

| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Lithography Autofocus Stage:Achieve nanometer-level focus fine-tuning and platform compensation.
|
