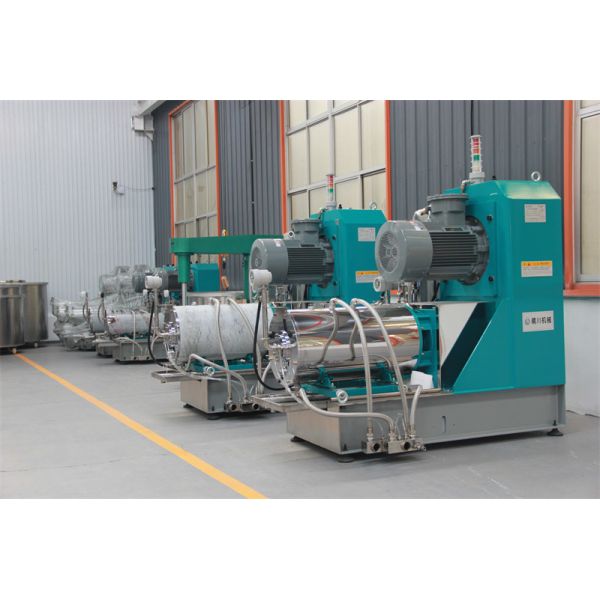

Product: 100L High-Flow Horizontal Sand Mill - Precision Grinding
for Nano-Scale Applications
Meta Description:
1. Core Value Proposition
The 100L High-Flow Horizontal Sand Mill delivers nano-scale
precision and industrial-scale productivity. With a tungsten steel
dynamic separator and German oil-free sealing, it achieves
unparalleled particle uniformity and contamination-free grinding
for high-value industries.
2. Targeted Pain Points
Poor Particle Control: Inability to achieve stable sub-micron
fineness (e.g., 200-500nm) due to imprecise separation systems.
Contamination Risks: Oil-lubricated seals or low-grade materials
introduce foreign particles, damaging product quality.
Inefficient Cooling: Thermal degradation during grinding causes
inconsistent results and shortened equipment life.
3. Our Precision Engineering Solutions
Tungsten Steel Dynamic Separator
A fully adjustable gap (0.1-0.4mm) crafted from pure tungsten
carbide ensures precise separation. Configured to 0.17mm for
200-500nm fineness, it enables the use of high-impact 0.6-0.8mm
zirconia beads (S.G. 4.0) for faster cycles and higher yield.
German Oil-Free Mechanical Seal
Leak-proof design with 8,000+ hours service life. Self-lubricating
without oil, using compatible solvents to eliminate contamination
risks.
4-Point Cooling System
Comprehensive thermal management across mechanical seal, grinding
cylinder, front plate, and shaft ensures stable temperature and
product consistency.
4. Technical Advantages
| Feature | Benefit |
|---|
| Explosion-Proof Design | Safe operation in flammable environments (e.g., solvents) |
| Dual-Stage Tungsten Steel Pins | Intensified shear force for 100% higher productivity |
| Dead-Zone-Free Chamber | Rapid cleaning and color changes by a single operator |
| Centralized Control Panel | Simplified operation with real-time parameter monitoring |
5. Ideal Applications
Coatings & Inks: Nano-particle dispersions for automotive and UV
inks.
Pigments & Dyes: High-color-strength pastes with uniform tinting
strength.
Electronic Ceramics: Precision slurries for battery electrodes and
substrates.
6. Frequently Asked Questions
Q: How is the separator configured for nano-grinding?
A: The tungsten steel gap is precision-set to 0.17mm, paired with
0.6-0.8mm zirconia beads to efficiently achieve 200-500nm fineness.
Q: Can this mill handle high-viscosity materials?
A: Yes. The dual-stage pin design and high-flow pump enable
efficient processing of viscosities up to 50,000 cP.
7. Call-to-Action
Achieve Nano-Scale Precision at Industrial Speed
Request a free grinding test with your materials and receive a
customized solution report within 48 hours.
High Flow Horizontal Bead Mill 100L For Maximum Productivity & Safety
