Automated X Ray Inspection designed for easy operation requiring only two hours

Automated X-Ray Inspection System
In-line Microfocus X-Ray Inspection System IL-3000 designed for easy operation requiring only two hours of training.
Key Advantages
  • Japan Hamamatsu X-ray tube - the world's best closed type X-ray tube with over 10,000 hours lifetime, maintenance-free
  • New generation IRay 5" HD digital flat panel detector (FPD)
  • Automatic navigation window - table moves to where you click
  • Belt transmission with width adjustment by lead screw & guide rail, max width 620mm
  • 6-axis motion system equipped with servo motor, X-ray tube and FPD move in sync
  • Customizable inspection procedures for automated high-volume inspection
  • Easy to operate with quick defect identification - only 2 hours training required
Hardware Specifications
X-ray Source
BrandJapan Hamamatsu
TypeClosed, microfocus
Max Tube Voltage90KV
Max Tube Current200μA
Focal Spot Size5μm
FunctionAuto preheat
Flat Panel Detector
BrandIRay
Effective Area130mm × 130mm
Pixel Size85μm
Resolution1536 × 1536
Frame Rate20fps
Tiltable Angle60°
Inspection System
TransmissionBelt
Motorservo motor
Detectable AreaLength 520mm, width 80-430mm adjustable
Max Load10kg
MagnificationGeometry 200X | System 1500X
Inspection SpeedMax 3.0s/point
Dimensions2600mm (L) × 1300mm (W) × 1800mm (H)
Host Machine Dimensions1400mm (L) × 1300mm (W) × 1800mm (H)
Weight2200kg
Power SupplyAC110-220V 50/60HZ
Max Power3000W
Industrial PCI7 CPU, 16G RAM, 240GB SSD + 1T HDD
Displayer24" HDMI LCD
Safety Features
Radiation LeakageNo leakage, international standard: ≤1μSv/h
Lead Glass Observation WindowTransparent lead glass window shields radiation to observe the inner status
Window and Back Door Safety InterlockX-ray tube powers off immediately when window or back door is opened
Electromagnetic Safety SwitchLocks when X-ray is on, preventing observation window opening
Emergency StopLocated next to operation position, press to power off
Tube ProtectionSoftware prevents user exit without closing X-ray tube
Software Functions
Function ModuleOperation
X-ray Tube ControlMouse-click operation for on/off control with real-time voltage/current display and adjustment
Status BarDisplays interlock status, pre-heat status, and X-ray status with red/green flashing indicators
Image Effect AdjustmentFree adjustment of brightness, contrast and gain for optimal image quality
Product ListSave and recall inspection parameters for improved efficiency with same products
Navigation WindowClick anywhere in camera photo to automatically move table to selected position
Motion Axis StatusReal-time coordinate display
Inspection ResultOrdered display of measurement results (voids rate, distance, area, etc.)
Speed ControlAdjustable movement speed for each axis (slow, normal, fast)
Voids Rate MeasurementAutomatic calculation with rectangle selection, parameter adjustment, and manual void addition capabilities
Other Measurement FunctionsDistance, distance rate, angle, radius, and perimeter measurements for comprehensive analysis
Automatic InspectionManual setting, array configuration, and automatic identification of inspection points
Working Principle

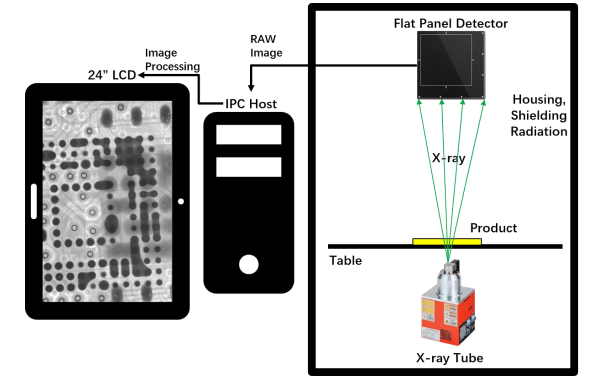

Working principle diagram of X-Ray Inspection System showing internal components and radiation path
Working Principle Diagram of X-Ray Inspection System
Application Examples
Application example showing X-Ray Inspection System in use for electronic component analysis
Application Example of X-Ray Inspection System
Another application example demonstrating X-Ray Inspection System capabilities
Additional Application Example of X-Ray Inspection System
