Pointek CLS200 - Digital

Pointek CLS200 - Digital Level Detection Switch
The Pointek CLS200 (digital version) is a versatile inverse frequency shift capacitance level and material detection switch with optional rod/cable choices and configurable output. Ideal for detection of liquids, solids, slurries, foam, and interfaces with the ability to tune out buildup on the probe. The digital version includes PROFIBUS PA, an LCD display, and advanced diagnostic features.

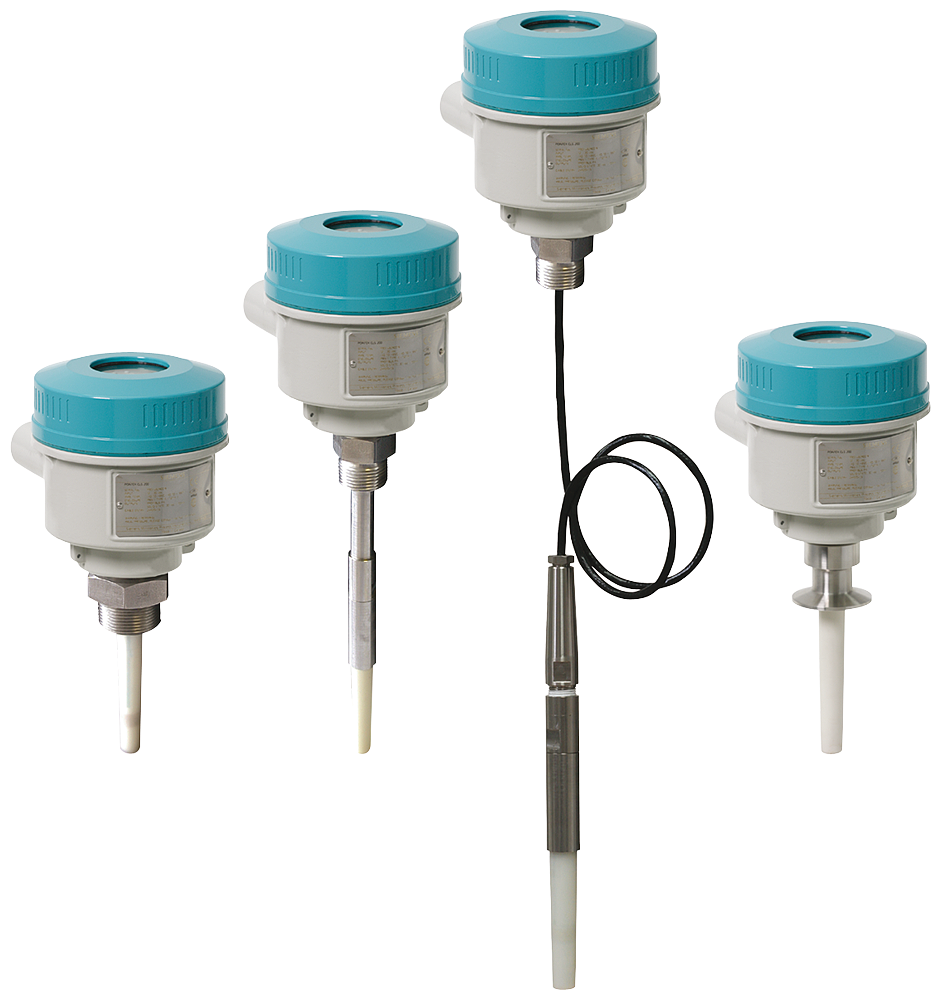

Product Images
Pointek CLS200 Digital Level Switch front view Pointek CLS200 Digital Level Switch side view Pointek CLS200 Digital Level Switch installation example Pointek CLS200 Digital Level Switch display close-up Pointek CLS200 Digital Level Switch probe detail
7ML5640-.....-.... | 7ML5641-.....-.... | 7ML5642-.....-.... | 7ML5643-.....-.... | 7ML5644-.....-....
Key Benefits
  • Potted construction protects signal circuit from shock, vibration, humidity, and/or condensation
  • High chemical resistance for demanding industrial environments
  • Level detection independent of tank or pipe earth reference
  • Insensitive to product buildup due to high frequency oscillation
  • High sensitivity allows installation in wide range of liquids, solids or slurry applications
  • Integral LCD display enables easy menu-driven setup and configuration
  • PROFIBUS PA communication with SIMATIC PDM compatibility
Applications
Pointek CLS200 digital version provides an integral LCD display for stand-alone use, and PROFIBUS PA communication (Profile version 3.0, Class B) for network connectivity. The power supply is galvanically isolated and accepts a wide voltage range (12 to 30 V DC). With thermal isolator, the stainless steel and PPS (PVDF optional) probe construction provides temperature rating up to 125°C (257°F) on process-wetted portions.
The switch detects materials with dielectric constant of 1.5 or higher by monitoring changes in oscillating frequency, configurable for detection before contact or on contact with the probe. Menu-driven setup provides precise control of switch point, signal damping, and alarm functions. Advanced diagnostics and setup are available when connected to PROFIBUS network using SIMATIC PDM.
Key Application Areas:
  • Liquids and slurries
  • Powders and granules
  • Pressurized applications
  • Hazardous areas
  • Non-conductive vessels (concrete or plastic tanks)

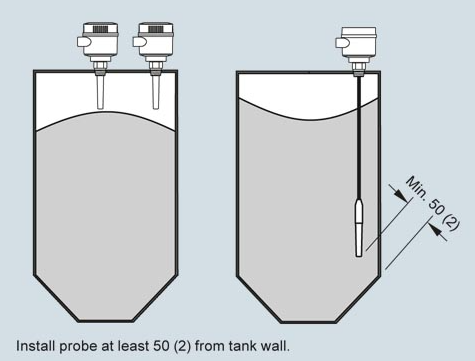

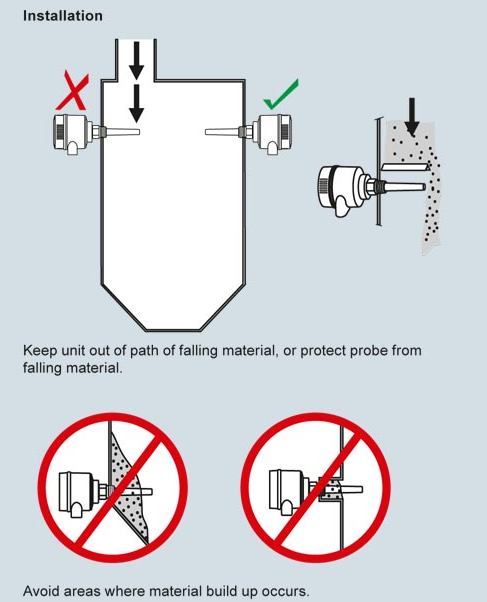

Configuration Diagrams
Pointek CLS200 Digital configuration diagram showing installation options Pointek CLS200 Digital wiring and connection diagram
Technical Specifications
Measuring PrincipleInverse frequency shift capacitive level detection
Measured VariableChange in picoFarad (pF)
Output SignalSolid-state output, galvanically isolated
Max. Switching Voltage30 V DC / 30 V peak AC
Max. Load Current82 mA
Ambient Temperature-40 to +85°C (-40 to +185°F)
Process Temperature-40 to +85°C without thermal isolator
-40 to +125°C with thermal isolator
Process Pressure (Rod)-1 to +25 bar g (-14.6 to +365 psi g)
Process Pressure (Cable)-1 to +10 bar g (-14.6 to +150 psi g)
Dielectric ConstantMinimum 1.5
Degree of ProtectionIP65/Type 4/NEMA 4 (optional IP68)
Power Supply12-30 V DC (Standard), 12-24 V DC (Intrinsically Safe)
CommunicationPROFIBUS PA (IEC 61158 CPF3 CP3/2)
CertificationsCSA, FM, CE, UKCA, RCM, ATEX, and various explosion-proof ratings
Related Products & Accessories
Part NumberDescription
7ML1830-1JBCable Gland, 1/2" NPT, explosion proof
7ML1830-1JCM20 x 1.5 cable gland (general use and dust explosion protection)
7ML1830-1JDCable Gland, M20 x 1.5 HF, (EP)
7ML1830-1JETest Magnet
7ML1830-1JFAmplifier / Power Supply Digital Version
7ML1830-1JKLCD Display for CLS 200, Digital
A5E01163672Spare Synprene gasket, enclosure version, for IP65 versions
A5E01163673Spare Silicone gasket, enclosure version, for IP68 version
A5E01163674CLS200/CLS300/LC300 Spare aluminum blind lid, for standard versions
A5E01163676CLS200/300 Spare aluminum lid with window
A5E01163677Kit, sensor for cable units, PPS, standard, Viton
A5E01163678Kit, sensor for cable units, PPS, digital, Viton
A5E01163679Kit, sensor for cable units, PPS, standard, FFKM
A5E01163680Kit, Sensor for cable units, PPS, Digital, FFKM
A5E01163681Kit, Sensor for cable units, PVDF, Standard, FKM
A5E01163682Kit, sensor for cable unit, PVDF, Digital, FKM
A5E01163683Kit, sensor for cable unit, PVDF, Standard, FFKM
A5E01163684Kit, sensor for cable unit, PVDF, Digital, FFKM
A5E01163685Spare, 316L stainless steel mounting bracket
A5E01163686Spare, PROFIBUS connector, IP65 versions only
A5E03251681Kit, CLS200 standard, transmitter
