Stainless Steel Flat Flex Wire Mesh Conveyor Belt

Categories Metal Wire Mesh
Brand Name: Qijie
Model Number: flat flex conveyor belt
Certification: sgs
Place of Origin: China
MOQ: 10pcs
Price: Discuss
Payment Terms: L/C, T/T
Supply Ability: 1500pcs
Delivery Time: 15-18days
Packaging Details: paper cartons
Material: stainless steel
thickness: 1.0mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

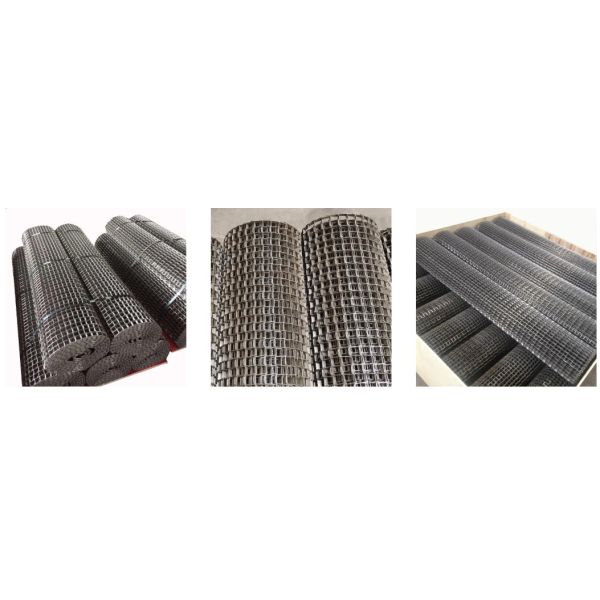

Stainless Steel Flat Flex Wire Mesh Conveyor Belt

Stainless Steel Flat Flex Wire Mesh Conveyor Belt


Flat wire conveyor belt, constructed of cross rods and flat metal strips, are made out of thousands of metal "U" shapes that are riveted together. They are best for situations that require a solid, flat surface that promotes maximum air circulation. Excellent fluid drainage as well as ease of cleaning. Meanwhile, they are easy to maintain just replacing the section that is damaged or worn down. They are used in some of the following applications: food processing, canning, baking, freezing, agricultural applications, as well as Parts washing, drying, cleaning, painting, transferring; also used as matting and drag mats.

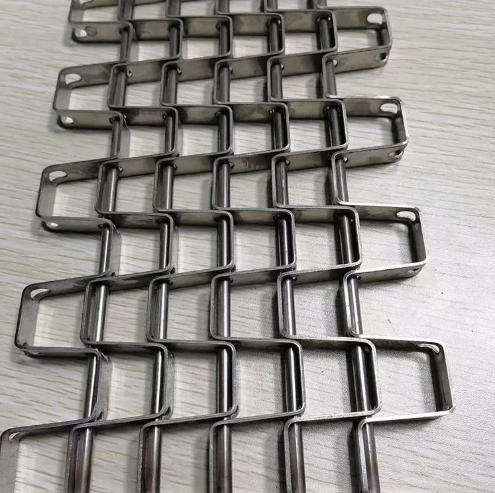

flat flex conveyor belt mesh


flat flex conveyor belt mesh

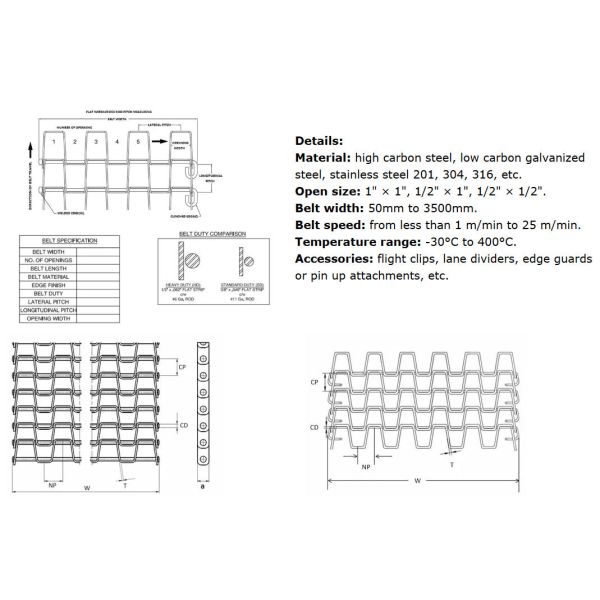

StylesTypesMesh sizeBelt widthCross rod diameterFlat strip (Height × Thickness)Tension (max)Approx. weight
Standard duty & clinched edgeCG-C11" × 1"4.5" to 240"0.105"3/8" × .046"480 lbs./ft1.85 lbs./square feet
CG-C2½" × 1"4.125" to 240"0.105"3/8" × .046"660 lbs./ft2.20 lbs./square feet
CG-C3½" × 1"4.125" to 240"0.105"3/8" × .046"660 lbs./ft2.50 lbs./square feet
CG-C4¾" × 1"4.5" to 240"0.12"3/8" × .046"550 lbs./ft2.00 lbs./square feet
Standard duty & welded edgeCG-W11" × 1"3" to 240"0.105"3/8" × .046"480 lbs./ft1.85 lbs./square feet
CG-W2½" × 1"3.25" to 240"0.105"3/8" × .046"660 lbs./ft2.20 lbs./square feet
CG-W3½" × ½"3" to 240"0.105"3/8" × .046"750 lbs./ft3.25 lbs./square feet
CG-W4½" × 1"3.25" to 240"0.12"3/8" × .046"660 lbs./ft2.50 lbs./square feet
Heavy duty & clinched edgeCG-C11" × 1"10" to 192"0.192"1/2" × .062"1350 lbs./ft3.55 lbs./square feet
CG-C2½" × 1"10" to 192"0.192"1/2" × .062"1750 lbs./ft3.55 lbs./square feet
