2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface

2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface

2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
Categories Bar Type TFT
Brand Name: HuaXin
Model Number: HX0268S003T003
Certification: ISO14001/ISO9001/IATF16949
Place of Origin: China
MOQ: 1000
Price: negotiation
Payment Terms: T/T
Supply Ability: 100K per month
Delivery Time: 6weeks~8weeks
Packaging Details: blister+foam box+bubble bag+inside carton+master carton
Display Technology: bar type lcd
name: bar type tft
size: 2.68 "
resolution: 142RGB x 428
Brightness: 450
view angle: free view angle
interface: QSPI
Driving IC: NV3007
Touch Panel: CTP
Contact Now
Company Info.
HuaXin Technology (HK) Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface

2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
Product Specifications
Part No.HX0268S003T003
Display Size2.68 inch tft display
Outline Size (mm)24.38(H) ×69.43(V)×2.09(T)
AA Size (mm)21.28(H)×64.14(V)
Resolution142RGB x 428
InterfaceQSPI
Brightness450
View Angleall
Driving ICNV3007
Touch screenCTP

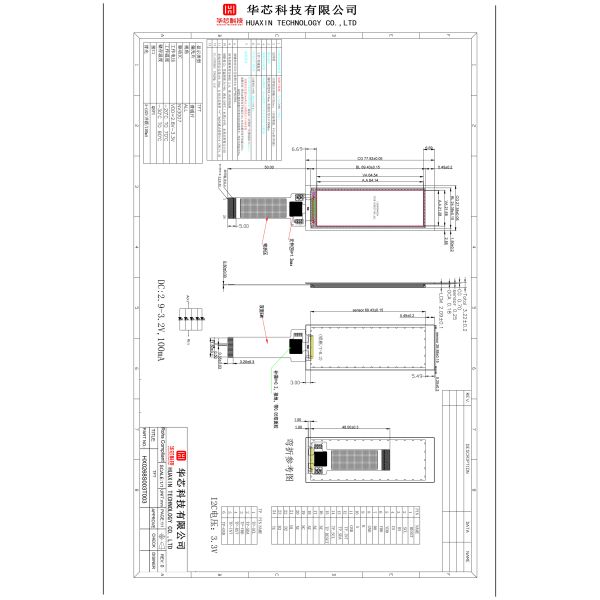

Technical Drawing

TFT Technology Overview
TFT Substrate and CF Substrate Input Flow
TFT substrate and CF substrate input flow diagram
TFT Structure
TFT structure diagram
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
  • Founded: 2009
  • Location: Hubei, Enshi
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D team: 10% of workforce
  • QC team: 15% of workforce
Company Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Highly automated production processes
  • 20+ years experience in LCD field
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product Type20212022202320242025Unit
LCD Production4.59999Thousands/Day
LCM Production70150300450450Thousands/Day
Backlight Production100200300500500Thousands/Day
OLED Production1020304050Thousands/Day
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Size Flexibility: Available in sizes from small handheld to large panels
  • Backlighting: Typically uses LED backlight systems
  • Versatility: Wide range of applications across industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Moderate contrast ratio
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving images
  • Limited flexibility in physical form
  • Restricted color gamut compared to some alternatives
