| Categories | Oxygen Gas Sensor |
|---|---|
| Brand Name: | Winsen |
| Model Number: | ZP13 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000/pcs/month |
| Delivery Time: | 3-5Workingdays |
| Packaging Details: | Standard Package |
| Model No.: | ZP13 |
| Detection Gas: | Propane, smoke |
| Physical Interface: | XH2.54-4P terminal socket |
| Output Data: | A signal on-off output |
| Company Info. |
| ShenzhenYijiajie Electronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

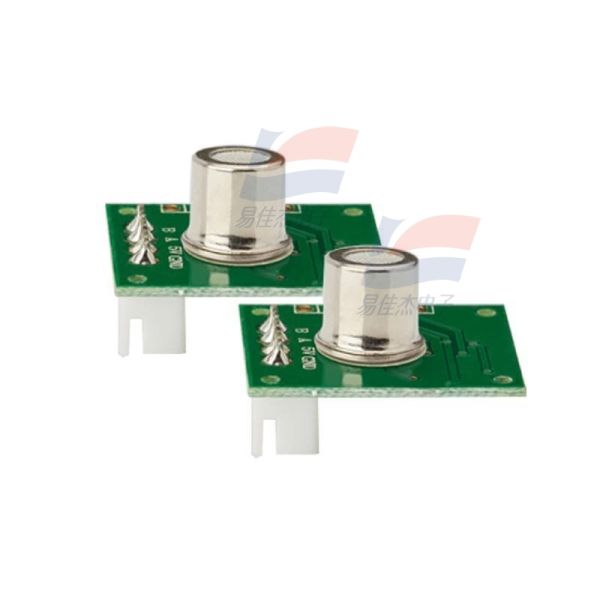

ZP13 Smoke Gas Sensor Plat Surfaced Semiconductor Sensor Highly Sensitivity
Features
Highly sensitivity, good long-term stability, calibrated, 3min
preheating judgement, fault self-diagnosis, lowpower consumption,
long lifespan, high cost-effective.
Main Application
Widely used in smoke alarm for home use, smoke alarm for industrial
use and portable smoke detector
Specification:
| Working voltage | 5.0±0.2V DC(No voltage reverse protection) |
| Output data type | TTL level(200Ω protected resistance inside) |
| Working current | ≤60mA |
| Warm up time | ≤3 min |
| Response Time | ≤20 s |
| Recovery Time | ≤60 s |
| Operating Temperature | 0~50℃ |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -20~60℃ |
| Storage Humidity | ≤60%RH |
| Size | 24.1×20.1×15.6mm(L ×W×H) |
| Weight | ≤20g |
| Sensitivity Attenuator | ≤1%/ year |

|
|
