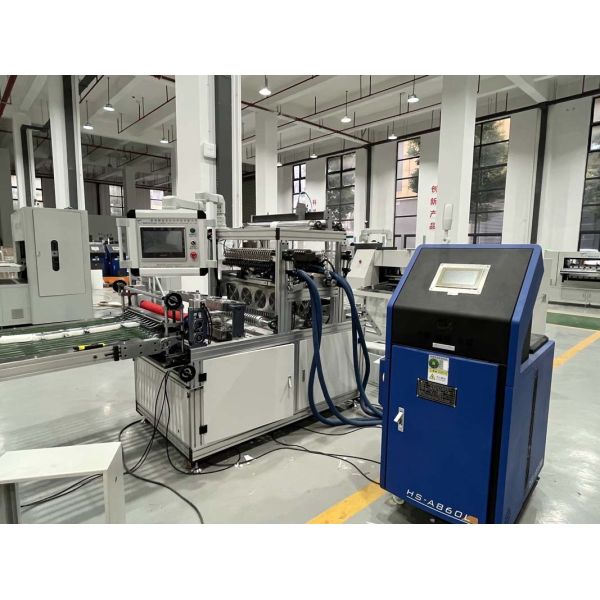

Full-auto Servo Motor Stainless Steel Frame Filter PP Gluing Machine

Full-auto Servo Motor Stainless Steel Frame Filter PP Gluing Machine is a high-precision, fully automated system designed for continuous folding and gluing of filter materials without partition dividers.
It integrates pre-slitting, folding, hot-melt gluing, cooling, and synchronized conveying into one efficient workflow, ensuring consistent product quality and high production efficiency.

Developed for industrial air filters, automotive filters, and other pleated filtration products, this production line features intelligent control systems, servo-driven mechanisms, and adjustable folding parameters, making it suitable for diverse filter specifications.

Product Parameters

Item	Specification
Hot melt glue machine capacity	25 L
Glue gun configuration	2 × 13-point independent glue spraying components with separate solenoid control
Glue line spacing	25.4 mm
Glue gun control	Touchscreen-controlled; adjustable glue volume
Glue spraying functions	Continuous, single-sided, double-sided, surface cutting, offset, fold-count-based injection
Glue machine preheating time	30 minutes
Power supply	380V / 50Hz
Total power	15 kW

Main Features

1. High-Speed Production – Production speed adjustable between 2–15 m/min for optimized output.

2. Adjustable Folding Height – Folding height from 12 to 100 mm, controlled via touch screen.

3. Precision Corrugation – Uniform corrugation spacing ensures high flatness and consistent product quality.

4. Advanced Gluing System – 50L hot-melt glue machine with dual 26-point independent glue guns, each nozzle individually controlled.

5. Flexible Glue Application – Supports continuous, single-sided, double-sided, surface-cutting, offset, and fold-count-controlled glue injection.

6. Synchronized Conveying – Servo-controlled conveyor belt ensures consistent spacing between filter materials.

7. Durable Mechanical Structure – Thickened aluminum profiles, chromium-plated shafts, and robust aluminum alloy frame provide long-term stability.

8. Intelligent Touchscreen Control – 10-inch touch screen for adjusting folding speed, glue volume, and process parameters.

Product Advantages

Improves Filter Appearance - Clean edges enhance the final product quality.
Boosts Production Efficiency - Fast trimming speeds reduce manual work and processing time.
High Accuracy - Precise blade design minimizes errors and ensures consistent trimming.
Compatible with Various Filter Types - AC filters, cabin filters, HEPA frames, nonwoven filters, etc.
Cost-Effective - Low power consumption and minimal maintenance requirements.
Durable Construction - Heavy-duty build designed for continuous industrial operation.

Applications

Automotive air conditioning filters
Cabin air filters
Industrial and HVAC filters
Household air purifier filters
Nonwoven and pleated filter frames
Any filter requiring precise four-side edge strip removal

Ideal for filtration processing factories, air filter assembly lines, and precision finishing workshops.

Company Profile

Bengbu Tongchen Automation Technology Equipment facility

Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.

Production Packaging

Packaging of 350mm Aluminum Foil & Paper Corrugating Machine

Can you give me a discount price?

Discounts depend on order volume. Larger quantities qualify for greater discounts.

How do you guarantee your quality?

Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.

How about your after-sales service?

We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.

Product Tags:


*From:	Your email address is incorrect!
*To:	Bengbu Tongchen Automation Technology Co., ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Air Filter Production Line
Brand Name:	Bengbu Tongchen
Model Number:	TCFH-700
Place of Origin:	Anhui Bengbu
MOQ:	1
Price:	3500-6000
Payment Terms:	T/T
Supply Ability:	Unlimited Supply
Delivery Time:	15-45 Days
Packaging Details:	Wooden Box
Power Source:	Electric
Machinery Test Report:	Provided
Guarantee Time:	1 Year
Dimension:	1250 × 1100 × 1500 mm (LWH)
Computerized:	Yes
Product origin:	Bengbu Anhui China
