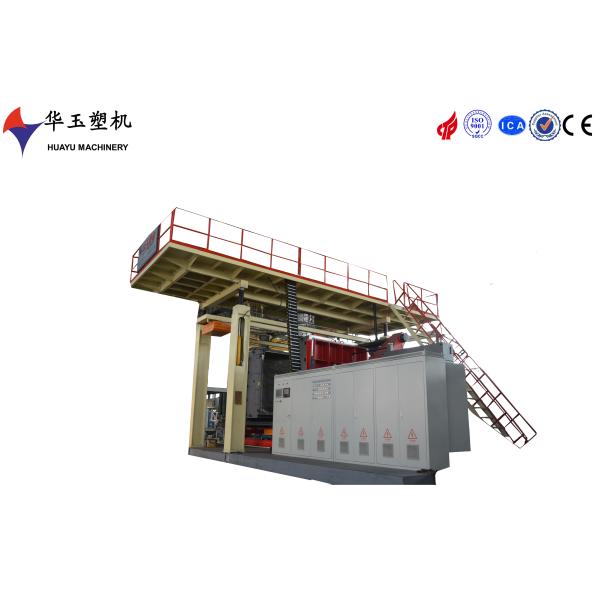

1000L Capacity High Speed Three-Layer Blow Molding Machine with PLC Control

The 1000L three-layer blow molding machine represents advanced manufacturing technology for producing sophisticated containers with specialized functional layers. This system utilizes three independent extruders in an ABC configuration, with each extruder processing different material types that feed into a co-extrusion die head for precise material layering before parison formation.

This innovative configuration enables the creation of containers with optimal barrier properties, featuring an inner layer for product compatibility, a middle layer for barrier functionality, and an outer layer for structural integrity and appearance. The machine achieves production speeds of 16-25 containers per hour for 1000L capacity, with each extruder featuring a 55 kW power rating and 100mm screw diameters.

The key technological advancement is the triple-layer die head with sophisticated flow channels that maintain material separation until the final formation stage, preventing premature mixing while ensuring perfect layer adhesion. Advanced control systems feature modular programming that allows operators to independently adjust parameters for each layer, including temperature profiles, extrusion speeds, and individual layer thickness ratios.
