20mm diameter, 2-phase, 18-degree stepper motor, bipolar stepper motor PM20

20mm diameter, 2-phase, 18-degree stepper motor, bipolar stepper motor PM20

20mm diameter, 2-phase, 18-degree stepper motor, bipolar stepper motor PM20
20mm diameter, 2-phase, 18-degree stepper motor, bipolar stepper motor PM20
Categories Permanent Magnet Stepper Motor
Brand Name: VIC-TECH
Model Number: PM20S-020-515
Certification: RoHS
Place of Origin: Jiangsu, China (Mainland)
MOQ: 1Unit
Price: $2~$5/Unit
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000000 Units/year
Delivery Time: 15-30 work days
Packaging Details: intertional carton box
Step Angle(degrees):: 18
Phase: 2 phase
Voltage: 12V DC
Resistance: 150 ohm
Type: Permanent Magnet
Step angle: 18°/step
Motor diameter: 20mm
Contact Now
Company Info.
Changzhou Vic-Tech Motor Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

20mm diameter, 2-phase, 18-degree stepper motor, bipolar stepper motor PM20

20mm Diameter, 18-Degree Step Angle, 2-Phase Stepper Motor - Model PM20S-020-515
This is a 20mm diameter stepper motor with a 2-phase design, 18° step angle, bipolar four-wire configuration, and round shaft. It operates on 12V DC, with each phase coil having a resistance of 150Ω. Motor parameters can be customized to meet different voltage requirements, including lower voltages such as 5V DC.
All parameters, including cable length, shaft length, connector type, and flange cover design, are customizable. Optional gearbox assemblies are available upon request.

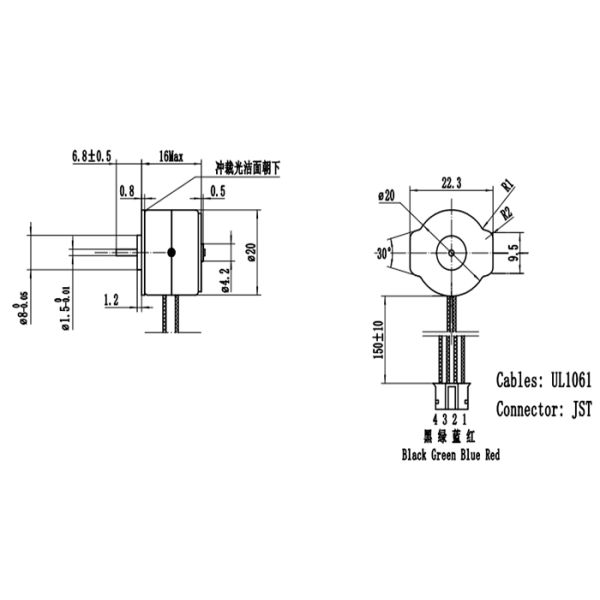

Mechanical Dimension (mm)
20mm stepper motor mechanical dimensions diagram
Technical Features
  • 20mm permanent magnet stepper motor with optional gearbox
  • Compliant with EU Environment Standards
  • Fully customizable parameters
Typical Applications
  • Intelligent security products
  • Camera lenses
  • Door locks
  • Wearable devices
Specifications
Product modelPM20S-020-515
Motor typestepper motor
Motor diameter20mm diameter
Coil resistance150 Ohm±15%
Step angle18 degrees
Holding torque

53gf*cm

No.of phase2 phase

Competitive Advantages
  • High quality at competitive pricing
  • Fast delivery with rich inventory
  • Convenient location near Shanghai port
Wire Connection Options

Available in Pin type, FPC, PCB, Lead wire configurations - fully customizable to customer requirements.

Stepper motor wire connection types diagram
Fixture Cover Options

Standard models shown below with custom sizes available upon request.

Stepper motor fixture cover options

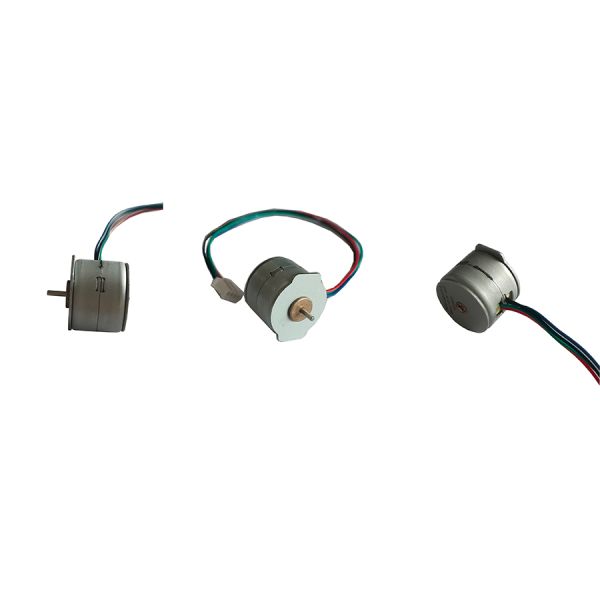

Product Detail

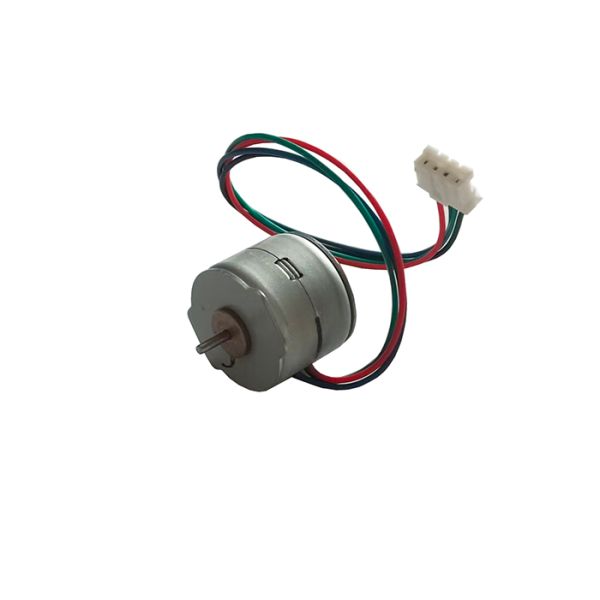

Detailed view of 20mm stepper motor
