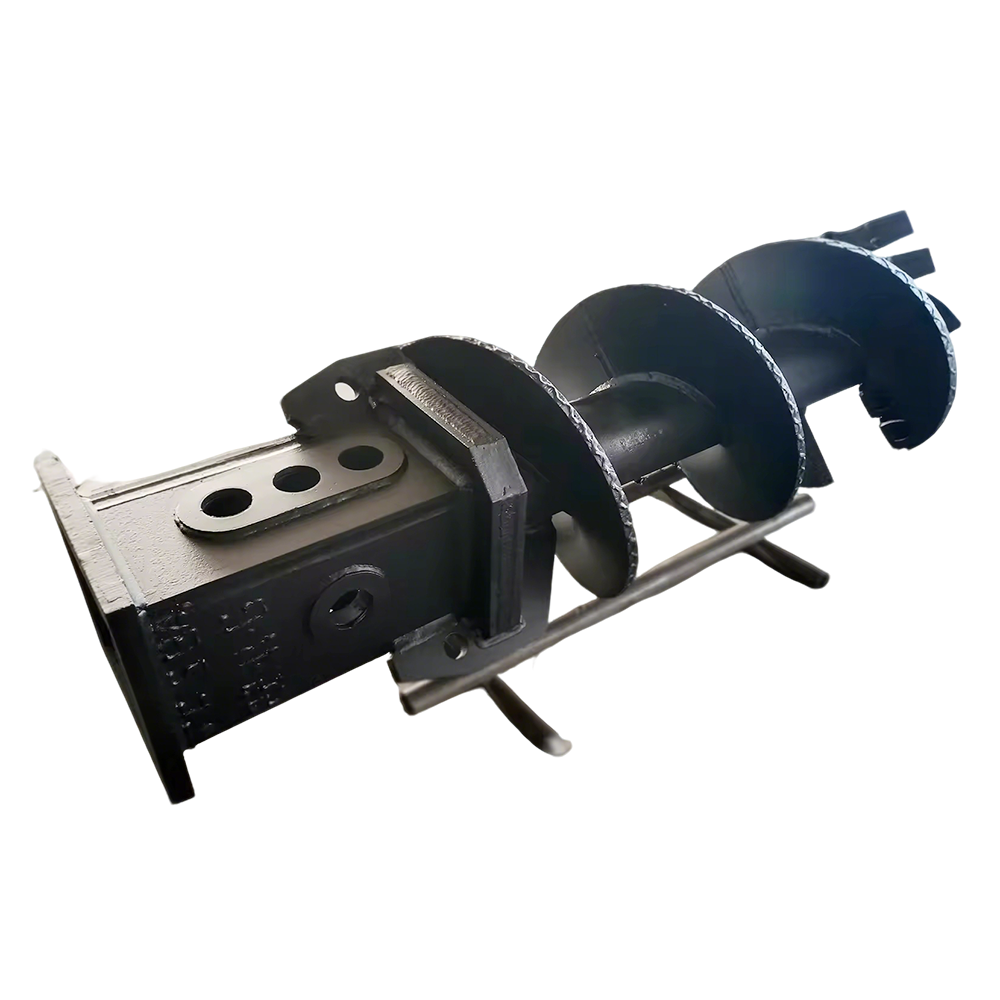

Customized Auger Drilling Rig, Auger Drilling Rig, Rotary Drilling Rig Single-Flute Straight Auger Bit (Toothed) For construction in clay layers, highly weathered layers, and gravel layers
Video outgoing-inspection
clay, high-weathered layer, gravel etc;
Double bottom and double cut ,Single bottom and double cut

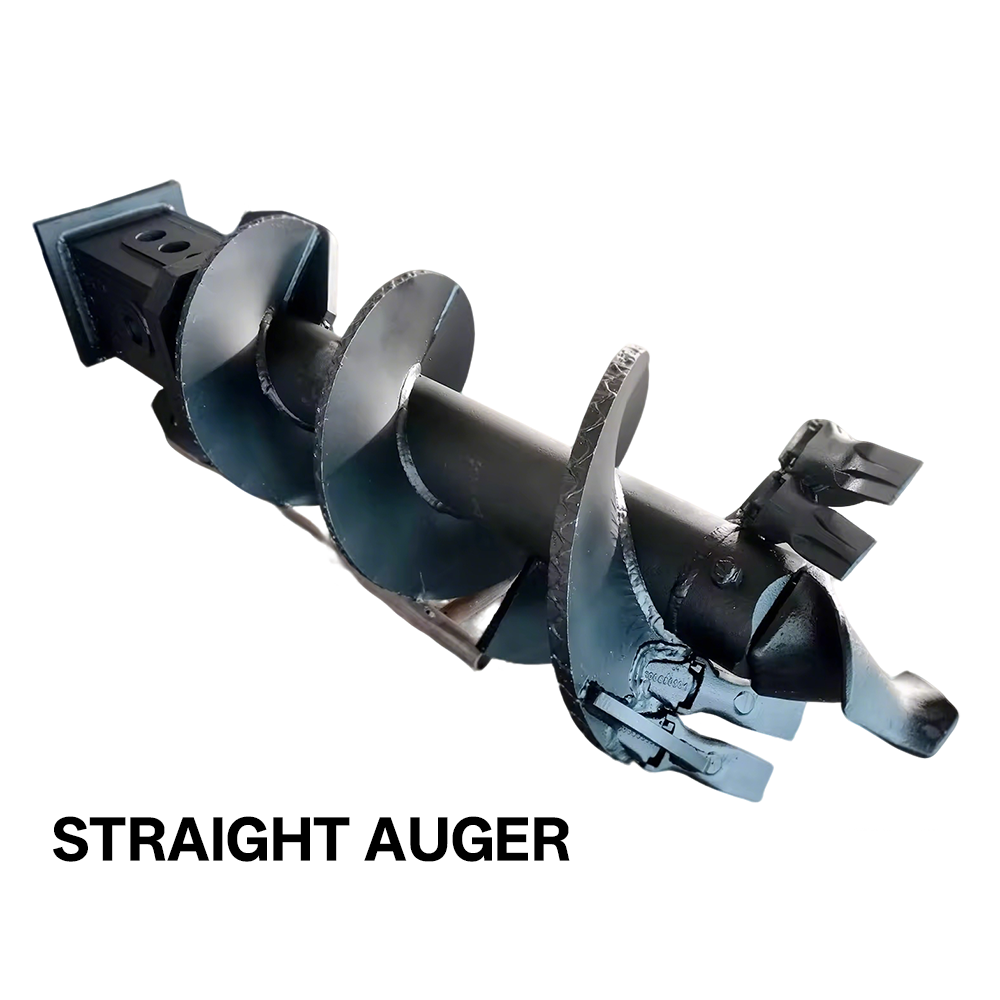

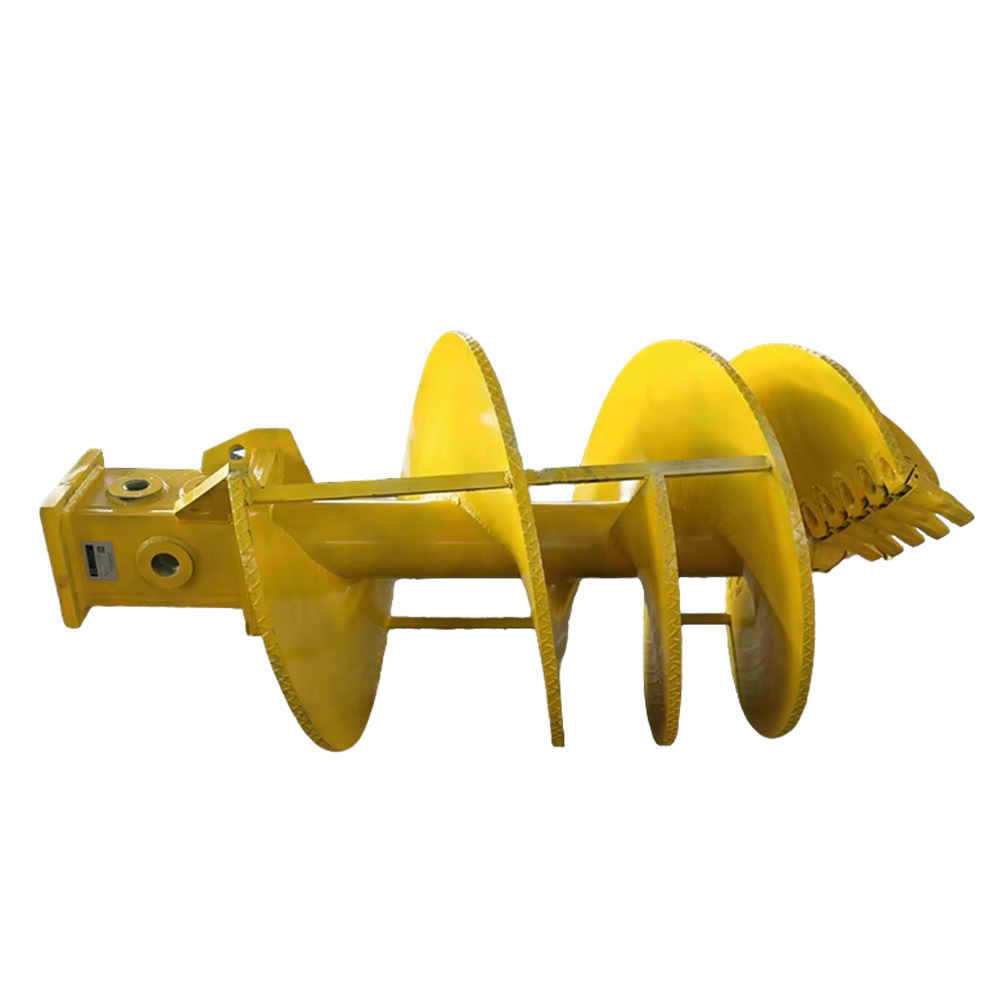

Straight Auger
1. Design as straight type, better for carry soil;
2. Double cutter bearing uniform force, can avoid inclined hole;
3. Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil;
4. Applicable layers: clay, high-weathered layer, gravel etc;
Remark:all measurements in millimeters (mm); weight in kilograms(kg)
|
Pile Dia.(mm)
|
Spiral HIT.(mm)
|
Spiral Pitch(mm)
|
Sprial THK.(mm)
|
Sprial OD.(mm)
|
Teeth No.
|
Weight (kg)
|
|
φ600
|
1500
|
600+400
|
30+20
|
550
|
6
|
550
|
|
φ800
|
1500
|
600+400
|
30+20
|
750
|
9
|
800
|
|
φ900
|
1550
|
600+500
|
30+20
|
850
|
10
|
850
|
|
φ1000
|
1500
|
600+600
|
30+20
|
950
|
11
|
900
|
|
φ1200
|
1500
|
600+600
|
30+30
|
1150
|
13
|
1250
|
|
φ1500
|
1500
|
600+600
|
30+30
|
1450
|
16
|
1750
|
|
φ1600
|
1500
|
600+600
|
30+30
|
1550
|
17
|
1900
|
|
φ1800
|
1500
|
600+600
|
35+30
|
1750
|
21
|
2600
|
|
φ2000
|
1500
|
600+600
|
35+30
|
1950
|
22
|
3050
|
