| Categories | Waterproof Plug Socket |
|---|---|
| Brand Name: | Ulinkcon |
| Model Number: | M25 |
| Certification: | CE/Rohs |
| Place of Origin: | China |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | T/T,D/A,D/P,MoneyGram,L/C |
| Supply Ability: | 100000 pairs each month |
| Delivery Time: | 5~8 working days |
| Packaging Details: | Box |
| Number of Pins: | 3+13PIN |
| Waterproof Rating: | IP67 |
| Temperature Range: | -40℃~+105℃ |
| Connection: | Wire To Board |
| Flame-resistant rating: | UL94-V0 |
| Color: | Green/Blue/Red |
| Company Info. |
| Shenzhen Ulinkcon Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

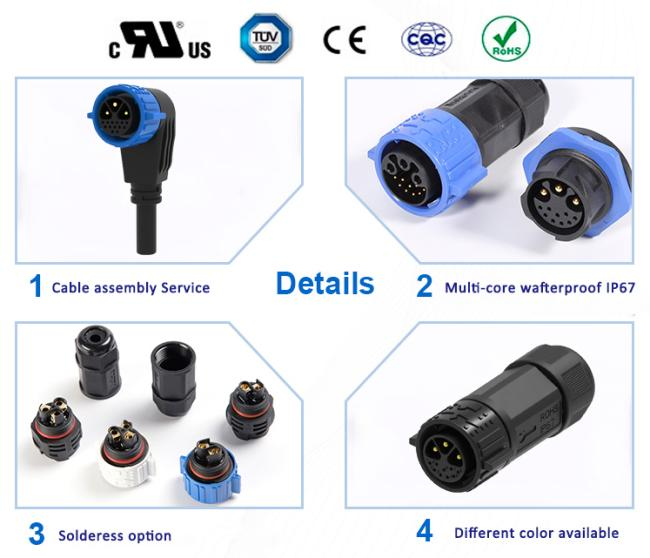

3+13 Pin Plug Socket Waterproof M25 Data And Power Connector IP67 with Quick Locking System
High-Quality PA66 Material: The shell is made of PA66 engineering plastic, which has excellent high and low temperature resistance, impact resistance and corrosion resistance. It is not easy to crack and deform due to environmental aging, and can adapt to complex working conditions such as outdoors and industrial workshops for a long time, extending the service life of the connector.
Diverse Terminal Connection Solutions: Offers two terminal connection methods: screw crimping and soldering. Screw terminals support solder-free quick wiring, adapting to on-site emergency assembly and later line adjustment; soldering terminals have higher connection firmness, suitable for fixed wiring scenarios that require long-term stable operation.
| Feature Category | Specification |
|---|---|
| Connector System | Cable-to-Board |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, Receptacle |
| Shell Type | Plastic Shell |
| Product Type | Connector Kit |
| Number of Positions | 3+13 |
| Number of Signal Positions | 13 |
| Contacts Preloaded | Yes |
| Operating Voltage (VAC) | 600V max. |
| Operating Voltage (VDC) | 600V max. |
| Shell Material | PA66 |
| Circular Connector Insulation Material Type | Low Fire Hazard Thermoplastic |
| Hermetically Sealed | Yes |
| Entry Style | Side |
| Environmental Protection Type | Elastomer Sealed, Hermetically Sealed |
| O-Ring Material | Elastomer Sealed, Hermetically Sealed |
| Environmental Protection | Yes |
| Contact Current Rating (Max) | 15A max. |
| Circular Connector Contact Type | Pin-Socket |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Mating Alignment Type | Keyed |
| Mating Retention | With |
| Wire Size (AWG) | 20AWG, 18AWG, 16AWG, 14AWG |
| Operating Temperature Range | -40°C to 105°C |
| IP Water Sealing Level | IP67 |
| IP Dust Sealing Level | 6 |
| UL Flammability Rating | UL 94V-0 |
A1: Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
A2: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
A3: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
|
