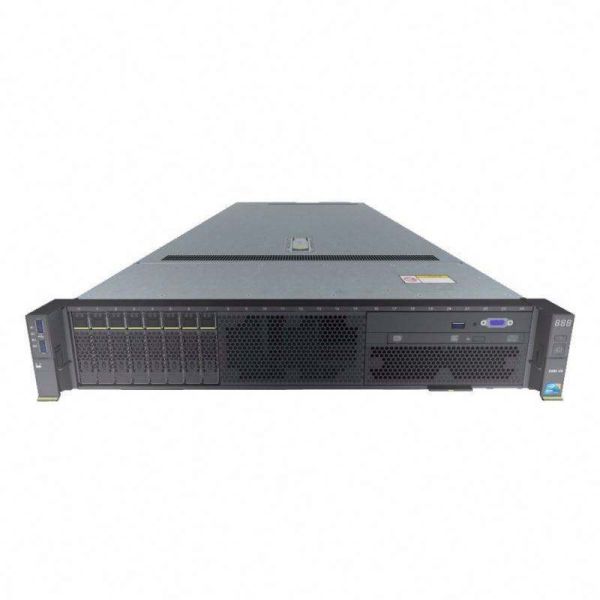

High Performance XFusion FusionServer 2488H V6 V5 2U Rack Server
Description
FusionServer 2488H is a newly launched 2U 4-socket rack server,
suitable for cloud computing, virtualization, high-performance
computing (HPC), databases, SAP HANA, and other computationally
intensive scenarios. Compared to two 2U 2-socket rack servers,
2488H V6 can bring more OPEX savings in virtualization application
scenarios. 2488H V6 can be configured with four third-generation
Intel® Xeon® Scalable processors, 48 DDR4 memory slots, 11 PCIe
expansion slots, and up to 25 additional 2.5" local storage
resources within a 2U space. Integrated with patented technologies
such as DEMT intelligent power management and FDM intelligent fault
management, and optionally equipped with FusionDirector full
lifecycle management software, it can effectively reduce
operational costs and enhance return on investment.
Pictures
Specification
Server Model | 2488H V6 |
Form Factor | 2U rack server |
| 2 or 4 x 3rd Gen Intel® Xeon® Scalable processors (5300/6300/8300
series), TDP up to 250 W |
Local storage
| Supports hot-pluggable drives with the following configuration
options:
• 8 x 2.5'' front SAS/SATA drives
• 24 x 2.5'' front SAS/SATA drives
• 25 x 2.5'' front SAS/SATA drives
• 4 x 2.5'' front SAS/SATA drives and 8 x 2.5'' NVMe SSDs
• 4 x 2.5'' front SAS/SATA drives and 16 x 2.5'' NVMe SSDs
• 24 x 2.5'' front NVMe SSDs1 Flash storage: 2 M.2 SSDs |
RAID support
| RAID 0, 1, 1E, 5, 50, 6, or 60; optional supercapacitor for cache
power-off protection; RAID-level migration, drive roaming,
self-diagnosis, and web-based remote configuration |
LOM network port | 1 x OCP 3.0 NIC (optional): 2 x GE/10GE/25GE/100GE ports,
supporting hot swap, NC-SI, WOL, and PXE
1 Wi-Fi module (optional): allowing mobile terminals to connect to
the iBMC in wireless mode |
PCIe extensions
| Up to 11 PCIe 3.0 slots, including one dedicated PCIe slot for the
OCP 3.0 NIC |
Management
| Huawei iBMC integrates one dedicated management GE network port to
provide comprehensive management features such as fault
diagnosis, automated O&M, and hardware security hardening.
• iBMC supports standard interfaces such as Redfish, SNMP, and IPMI
2.0; provides a remote management interface based on HTML5/
VNC KVM; supports CD-free deployment and the Agentless feature for
smart and simplified management.
• (Optional) Configured with the Huawei FusionDirector management
software to provide advanced management features such as
stateless computing, batch OS deployment, and automated firmware
upgrade, enabling automatic entire-lifecycle management |
Operating system (OS) | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux
Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi. |
Security | Power-on password, administrator password, TCM/TPM 2.0, security
front panel, and out-of-box intrusion alarm, etc |
Heterogeneous accelerator card | 2 dual-slot FHFL or 4 single-slot HHHL GPU heterogeneous
accelerator cards. For details, visit |
Fan Modules | 6 hot-swappable fan modules in N+1 redundancy mode |
Height X Width X Depth | Chassis: 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10
in.) |
Power Supply Units
| 2 hot-swappable PSUs with support for 1+1 redundancy and the
following configuration options:
• 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W
(input: 220 V to 230 V AC) 3000 W (input: 230 V to 240 V AC)
• 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192
V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to
288 V DC)
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192
V to 288 V DC)
• 1500 W HVDC PSUs (input: 260 V to 400 V AC)
• 2200 W DC PSUs (input: -38.4 V to -72 V DC)
• 1200 W DC PSUs (input: -38.4 V to -72 V DC) |
