| Categories | Huawei USG9500 |
|---|---|
| Brand Name: | Huawei |
| Model Number: | USG9520 |
| Certification: | CQC |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | 11250-13000USD |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000 units |
| Delivery Time: | 7 work days |
| Packaging Details: | Original brand carton |
| Product Name: | USG9520 |
| Type: | Firewalls |
| Types of fans: | Pluggable |
| Airflow direction: | Airflow direction |
| Company Info. |
| Chongqing Yujia Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
USG9520 02350FRU 02350FR Terabit-Level Next-Generation Firewall
Description
The HiSecEngine USG9500 series is the industry's first
terabit-level Artificial Intelligence (AI) firewall launched by
Huawei for mitigating known and unknown threats at the network edge
in real-time. It is typically deployed at the egress of cloud
computing data centers, large enterprises, and campus networks to
provide industry-leading protection capabilities.
An advanced hardware architecture design and an array of energy
conservation technologies slash energy consumption, while a full
lineup of Line Interface Processing Units (LPUs) — with a per-slot
interface density of up to 18 x 100 GE — meets heavy-bandwidth
traffic requirements.
The series provides comprehensive, carrier-grade high-reliability
architecture, supporting a multitude of reliability mechanisms,
such as dual Main Processing Unit (MPU) backup, Hot Standby (HSB),
Non-Stop Routing (NSR), and Graceful Restart (GR). A hardware-based
software integrity check mechanism prevents unauthorized software
from running, ultimately building a secure foundation for the
network.
With terabit-level service processing power and a suite of security
features — covering Network Address Translation (NAT),
Carrier-Grade NAT (CGN), Virtual Private Network (VPN),
virtualization, and content security — HiSecEngine USG12000 equips
enterprises to handle the heavy bandwidth traffic and diverse
service threats of the intelligent era.

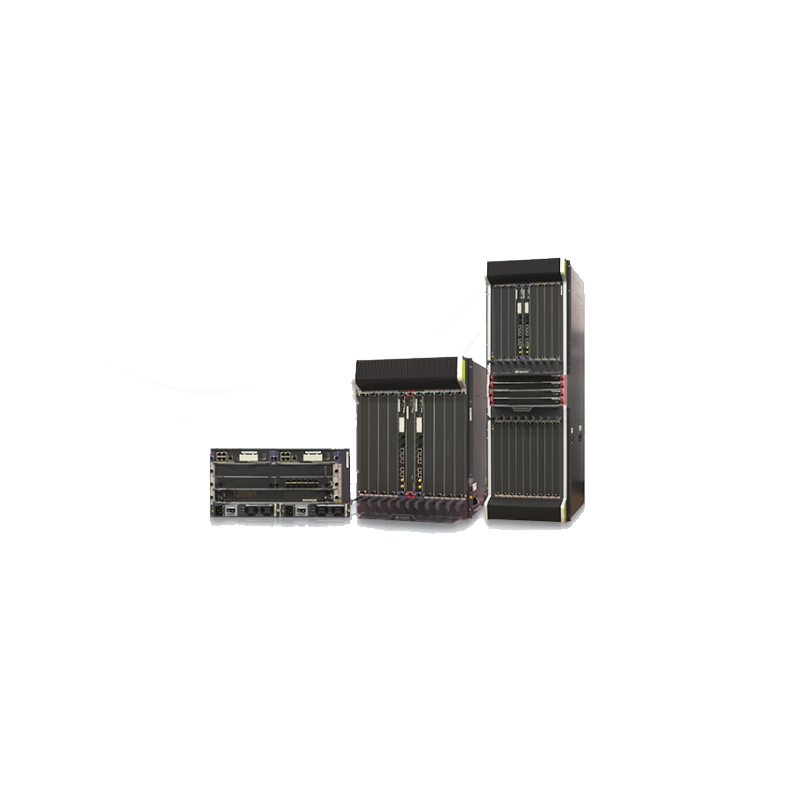

Pictures
Specification
Item | Specifications | |
|---|---|---|
Part number |
| |
System specifications | ||
Processing unit of the MPU | Main frequency: 1 GHz | |
BootROM capacity of the MPU | 1 MB | |
SDRAM capacity of the MPU | 2 GB | |
NVRAM capacity of the MPU | 512 MB | |
Flash capacity of the MPU | 32 MB | |
CF card | 1 x 2 GB | |
Number of slots | MPU | 2 (slots 4, 5) |
SFU | - | |
LPU/SPU | 3 (slots 1, 2, 3) | |
Dimensions and weight | ||
Dimensions (Ha x Wb x D) | DC chassis: 175 mm x 442 mm x 650 mm (6.89 in. x 17.4 in. x 25.59 in. , 4 U) AC chassis: 220 mm x 442 mm x 650 mm (8.66 in. x 17.4 in. x 25.59 in., 5 U) The depth is 750 mm, including the dust filter and cable rack. | |
Installation position | N68E cabinet or a standard 19-inch cabinet | |
Weight | Empty chassis | DC chassis: 15kg AC chassis: 25kg |
Full configuration (maximum) | DC chassis: 30.7 kg AC chassis: 40.7 kg | |
Power specifications | ||
Power supply mode | DC | Double hot-swappable power modules |
AC | Double hot-swappable power modules | |
Rated input voltage range | DC | -48 V DC to -60 V DC |
AC |
| |
Maximum input voltage range | DC | -72 V DC to -38 V DC |
AC |
| |
Typical power (One LPUF-120 and two SPUs are configured.) | DC | 1066 W |
AC | 1185 W | |
Maximum Power (One LPUF-120 and two SPUs are configured.) | DC | 1272 W |
AC | 1414 W | |
Heat dissipation | ||
Fan module | 1 hot-swappable fan module that has two fans | |
Air flow | Left-to-back airflow | |
Air filter | 1 air filter in the air intake vent of the air channel | |
Environment specificationsc | ||
System reliability | MTBF (year) | 25 |
MTTR (hour) | 0.5 | |
Ambient temperatured | Long-term | 0°C to 45°C |
Short-terme | -5°C to 50°C | |
Storage temperature | -40°C to 70°C | |
Ambient relative humidity | Long-term | 5% RH to 85% RH, no coagulation |
Short-term | 5% RH to 95% RH, no coagulation | |
Storage relative humidity | 0% RH to 95% RH | |
Long-term altitude | Lower than 3000 m | |
Storage altitude | Lower than 5000 m | |
