Small Vertical Axis Wind Turbine Generator for home use off-grid system

Categories	5kw vawt
Brand Name:	BF
Model Number:	BF-H-5K
Certification:	CE
Place of Origin:	China
MOQ:	1
Price:	4500$
Payment Terms:	T/T,L/C
Supply Ability:	500UNITS PER MONTH
Delivery Time:	20-25 DAYS
Packaging Details:	PLYWOOD CASE
Material:	Q235&FRP
Working tempreture:	-45-60℃
Rotor diameter (m):	4
Height of blades:	3.6
Rated rotor speed (m/s):	150r/min
Speed regulation method:	Electromagnetic control
Top weight (kg):	485kg
Start up wind speed(m):	3.2m/s
Sweep wind area(㎡):	6.68
Survival wind speed(m):	50
Rated wind speed(m/s):	11
Height of Tower:	8m/10m
Generator Type:	3 phases AC output alternator
Number of Blades:	5

Contact Now

Add to Cart

Company Info.

Qingdao Bofeng Wind Power Generator Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Small Vertical Axis Wind Turbine Generator for home use off-grid system

BF-H Series 5kW Vertical Axis Wind Turbine

Our BF-H series wind power generating system features advanced vertical axis technology with magnetic suspension structure, delivering exceptional wind energy efficiency and reliable performance for residential and small business applications.

Key Features

High wind energy coefficient with low startup wind speed (3.2m/s)
Superior anti-wind capability and stable operation
Noise-free performance with maintenance-free design
Advanced anti-corrosion treatment and sealing for long service life
Captures wind from any direction without yaw mechanism
Ideal for urban and suburban environments with turbulent wind flows

Technical Specifications

Rated Power	5kW
Rated Voltage	3000V
Rotor diameter (m)	4
Height of blade (m)	3.6
Material of blades and numbers	Glass Fiber Reinforced Plastic/5
Rated rotor speed	150 r/min
Speed regulation method	Electromagnetic control
Wind energy utilized coefficient	30%-40%
Range of working temperature	-45℃ - 60℃
Top weight (kg)	485
Start up wind speed (m/s)	3.2
Sweep wind area (㎡)	5.84
Survival wind speed (m/s)	50
Rated wind speed (m/s)	11
Tower type	Guy cabled tower
Service life	20-25 years

Generator Body

Features high-grade Neodymium Iron Boron permanent magnets, each tested for magnetic flux by authorized institutions. Engineered for low starting torque while maintaining high generating efficiency through optimized internal structure.

Wind turbine generator internal components

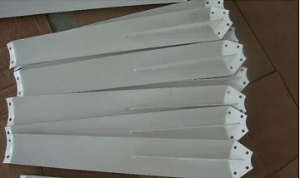

Blade Specifications

Streamline shape with 3 reinforced fiber plastic blades. Manufactured using unidirectional fiber fabric and epoxy resin molds with inner foam core construction. Designed for low noise operation, excellent balance, and superior fatigue resistance.

Wheel Hub & Connectors

Precision-made steel wheel hub connects blades to generator. Blades connectors constructed from Q235 plate with anti-corrosion surface treatment for durable performance.

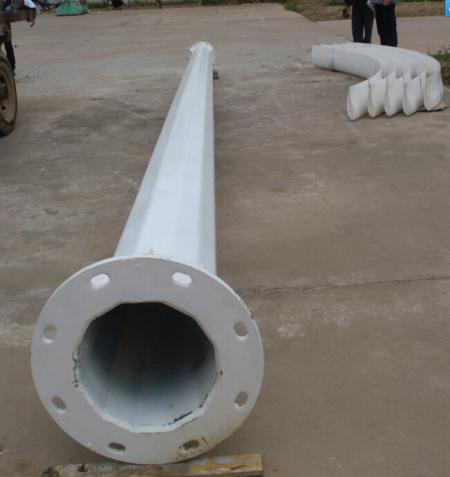

Tower Options

Available in Q235 guy wire tower with anti-corrosion painting or free stand tower with hot dip galvanized plastic spraying for various installation requirements.

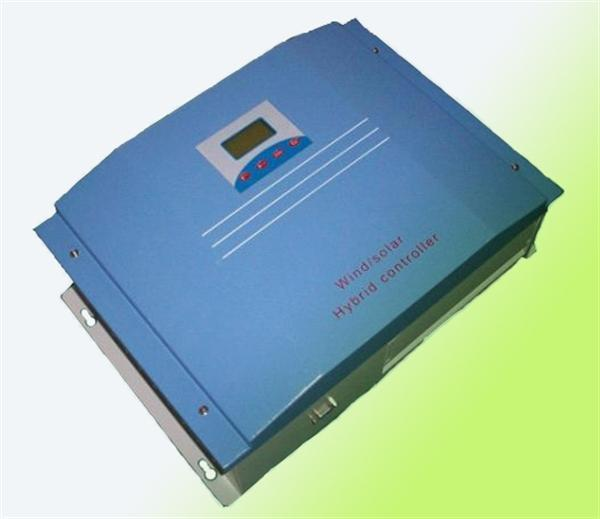

Off-grid Controller

Wind-solar hybrid controller which rectifies AC current generated by wind generator into DC current and charges the battery bank. Unload function activates when strong wind produces excess current. The controller brakes when batteries reach full capacity (125% voltage) and resumes charging when voltage reduces to 108%. Includes manual brake button for emergency stops.

5kW On-Grid Controller Specifications

Power of the equipped wind turbine	5kW
Operating mode	Continuous
Function	Commutation, control
Operating environment	Temperature -10～40℃, humidity≤80%
PWM unloading voltage (DCV)	≥360V
Brake voltage (DCV)	410±5V
Stop delay time (min)	10-20 minutes
Low voltage indicator (V)	≤200V
PWM unloading fuse (A)	6A
DC output fuse (A)	10A

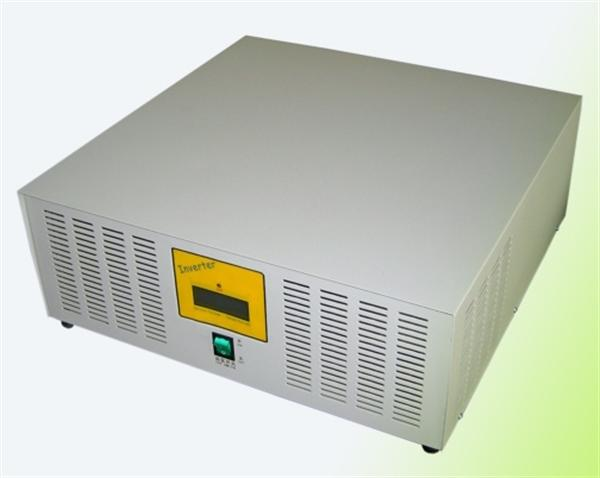

Off-grid Inverter

Pure sine wave output capable of driving any household appliances. Features integrated circuit design with minimal wiring connections. Utilizes microprocessor technology for enhanced system integration. Includes comprehensive protection systems with high efficiency transformer design and LCD operation status display.

5kW Off-Grid Inverter Specifications

Over Voltage Recovery Point	297VDC
Under Voltage Point	189VDC
Under Voltage Recovery Point	216VDC
No Load Loss	0.12A
Display Parameter	Battery Voltage, Output Voltage, State Parameter
Output Frequency	50/60 Hz±0.05Hz
Dielectric Strength	500VAC, one minute
Protection Type	Battery over voltage protection, Battery under voltage protection, Battery reverse-connect protection, Output over load protection, Output short circuit protection, Over temperature protection
Operation Ambient Temperature	-20～50℃
Operation Ambient Humidity	0~90%, no condensing

Additional Technical Specifications

Generator Type: Permanent magnetic synchronous style
Surface Treatment: Multi-layer painting including base coat (2 layers), anti-corrosion paint, and surface finish
Complete System Includes: Base flange, guy wires, wire tighteners, ground anchors, nuts, screws, bolts, and cables
Off-Grid System Requirements: 4 x 12V 100AH batteries (not included in base price)
Certifications: CE product certificate and ISO factory report
