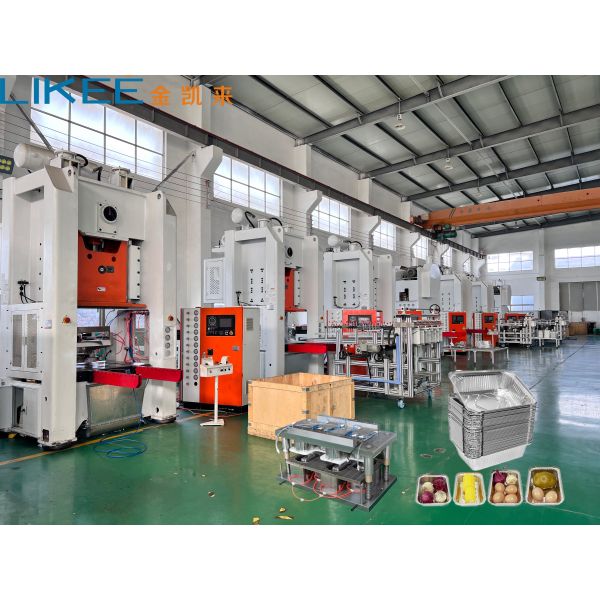

LK-T80 Aluminum Foil Container Machine H-Type Structure for Maximum Stability

The LK-T80 Aluminum Foil Container Machine is engineered with a heavy-duty, integral H-type frame at its core. This design provides unmatched structural rigidity compared to standard C-frame presses. By evenly distributing the immense forces generated during high-speed stamping, the H-frame eliminates flex and minimizes vibration.

This superior stability delivers direct production advantages. It ensures exceptional forming precision, resulting in containers with consistent dimensions, sharp rims, and uniform quality, which reduces material waste and rejects. The significant reduction in vibration also protects your investment by extending the service life of precision molds and core mechanical components, lowering long-term maintenance costs.

Built for demanding environments, the LK-T80 is ideal for continuous, high-output operations. Its stable foundation supports consistent performance and is designed to accommodate future upgrades. Every automated function and the reliable PLC control system operate on this robust platform. Choosing the LK-T80 means investing in a machine designed for reliable, high-quality production day after day.

Core Advantages :

• H-Type Heavy-Duty Frame: Fabricated from high-quality steel plates for superior rigidity and exceptional resistance to impact deformation.
• Precision 8-Column Guidance: The slide is guided by eight high-precision columns with long-life lubricated bushings, ensuring parallel closing and prolonging mold life.
• Dynamic Balancing System: The transmission system is dynamically balanced to suppress vibration sources at the root.
• Reinforced Bed Plate: Thickened steel bed plate provides a solid, flat mounting surface for molds, preventing deflection under load.
• Modular Maintenance Design: External main lubrication points and easy access to key components facilitate maintenance without compromising robustness.

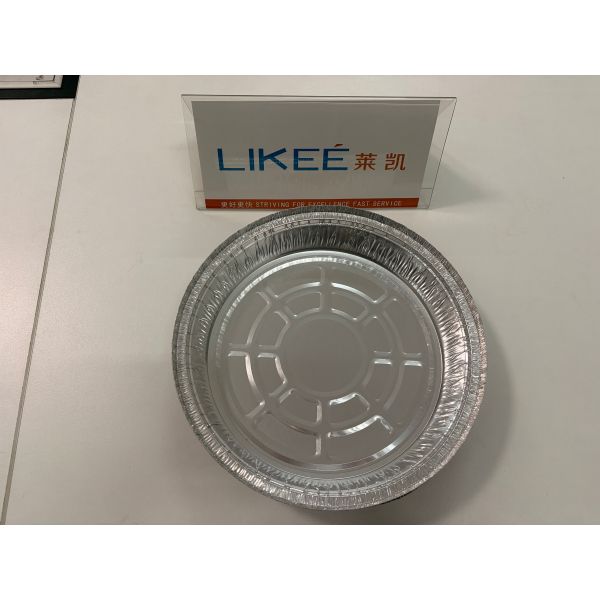

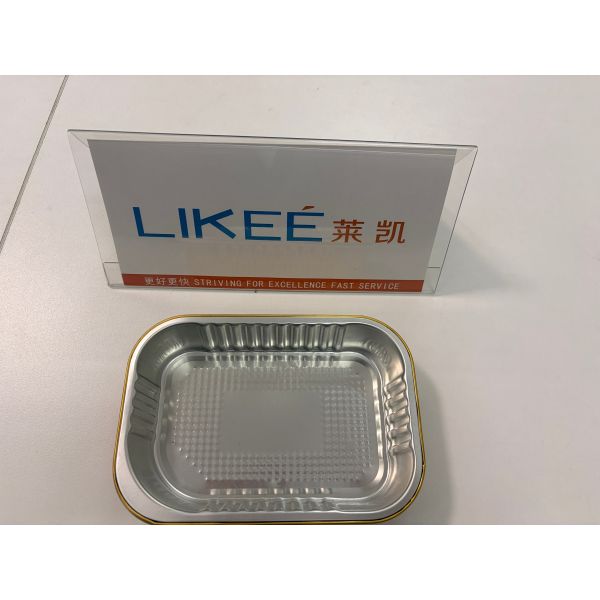

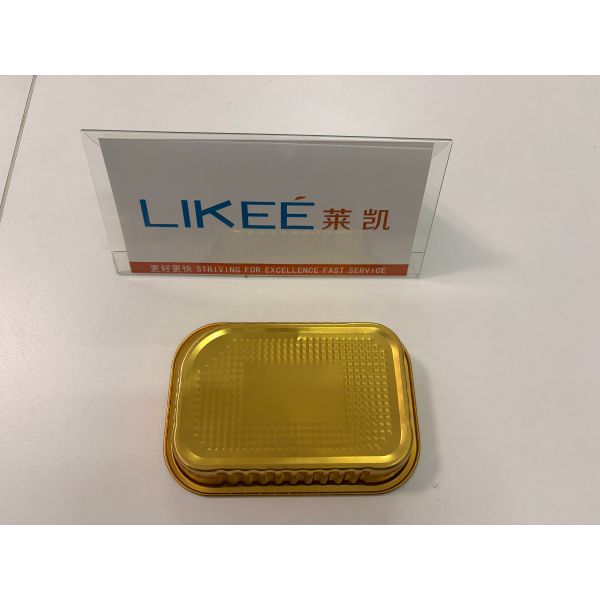

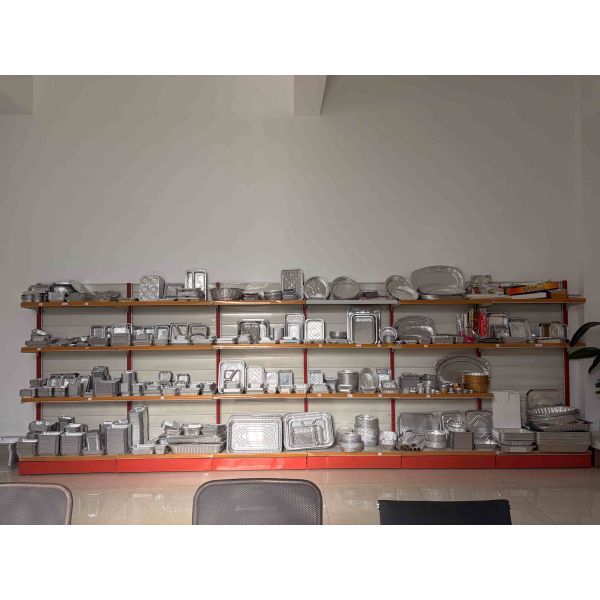

Container Sample:

Q1: What is the main advantage of the H-type frame over a common C-type frame?
A1: H type is more stable.

Q2: How does this structural stability specifically improve production quality?
A2: Greater frame stability leads to higher mold closing accuracy. This results in more uniform container dimensions, sharper edge definition, and neater stacking, significantly reducing quality issues like scratches or burrs caused by vibration.

Q3: How does the H-type structure affect mold service life?
A3: Severe vibration is a major cause of mold damage. The H-frame drastically reduces vibration, minimizing the shock loads on precision mold components like guide pins and inserts. This effectively prevents abnormal wear, loosening, or cracking, thereby greatly extending mold life.

Q4: What is the benefit of the H-type structure for future upgrades to higher speed or larger molds?
A4: The H-type structure provides ample performance headroom. Its sturdy foundation means the machine can maintain stability even when running at higher speeds or with larger tonnage molds, protecting your upgrade investment and avoiding the need for a complete machine replacement due to insufficient frame rigidity.

Q5: Is this structure easier to maintain?
A5: Yes. Its design is typically more regular and organized, with clear primary load paths. While the frame itself is heavy, daily lubrication points and key monitoring areas (like connecting rods and bearing housings) are more accessible for maintenance.
