VEGAPULS 68 Radar Sensor for Bulk Solids with 75 m Measuring Range Non-Contact ATEX Approved

PS68.CXEGD2HAMXX VEGAPULS 68

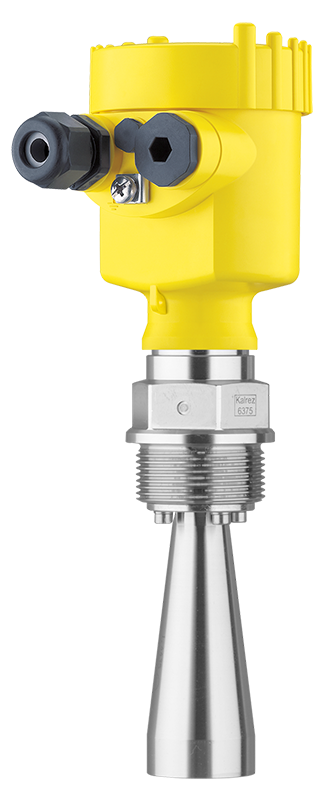

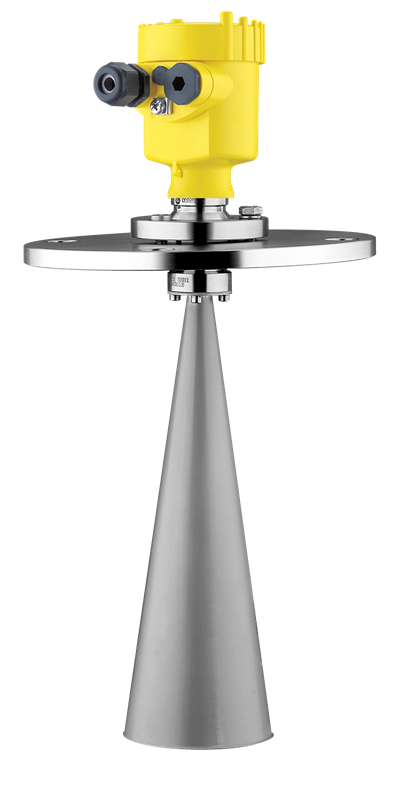

Radar sensor for continuous level measurement of bulk solids

Application area

The extended selection of process fittings and materials allows use in extreme temperature and pressure ranges.
The VEGAPULS 68 is a radar sensor for continuous measurement of bulk solids also under difficult process conditions and with large measuring ranges. The sensor is ideal for level measurement in high silos, large bunkers, stone crushers and in the furnace. The VEGAPULS 68 with different antenna versions and materials is the optimum solution for virtually all applications and processes. Through the wide temperature and pressure range, the sensor can be used universally and enables a simple planning.

Your benefit

  • High plant availability, because wear and maintenance-free
  • Maintenance-free operation through non-contact measuring principle
  • Reliable measurement independent of vapour, dust and noise

  • VEGAPULS 68

    Approval directive / Scope
    ATEX / Europe
    Approval
    CXATEX II 1G, 1/2G, 2G Ex ia IIC T6
    SIL qualification
    • without

    Version / Material
    Ewith horn antenna (ø95mm) / 316L
    Process fitting / Material
    GDThread G1½ PN40, DIN3852-A / 316L
    Overvoltage protection of the supply cable
    • without

    Seal / Process temperature
    2FKM (SHS FPM 70C3 GLT) and PTFE / -40...+130°C
    Electronics
    HTwo-wire 4 ... 20 mA/HART
    Instrument generation
    plics®plus
    Address setting
    • No

    Housing / Protection
    AAluminium single chamber / IP66/IP68 (0.2bar)
    Cable entry / Cable gland / Plug connection
    MM20x1.5 / with / without
    Display/adjustment module PLICSCOM
    Xwithout
    Additional equipment
    Xwithout
    Max. measuring range
    75 m
    Customer-specific adjustment
    • No

    Customer or application-specific parameter adjustment
    without
    Linearization
    No
    Language of the PLICSCOM menu
    EN - English
    Operating instructions
    DE - German
    Number of operating instructions
    1 ... 1000
    Customer Tag
    • without


    Additional cleaning procedure
    • without

    Test certificate
    • without

    Certificate / Standard
    without
    Dye penetration test
    • without
    Pressure test
    • without

    Radiographic test
    • without
    Helium leak test
    without
    PMI test
    • without

    High voltage test
    • without

    Low temperature test at -60 °C
    • without

    Durability test more than 360 h
    • without

    Suitable for tropical regions
    • without

    Supply certificates
    • no choice
    Process pressure min.
    -1
    Max. process pressure in bar
    40
    Customs tariff number (HS code)
    90318080
