Over Temperature Alarm Magnetization Closed Type Coil Flaw Detector with Demagnetization

Over Temperature Alarm Magnetization Closed Type Coil Flaw Detector with Demagnetization

I. Main parameter

1, Input current: 8A, determined according to the set values of magnetization and demagnetization, the standby current is 0.5A;

2, Power supply: AC200-240V 50 / 60Hz;

3, Magnetizing current: 8A (8A * 400T = 3200AT);

4, Central magnetic field: Max 110Gs;

5, Demagnetization current: 8-0A;

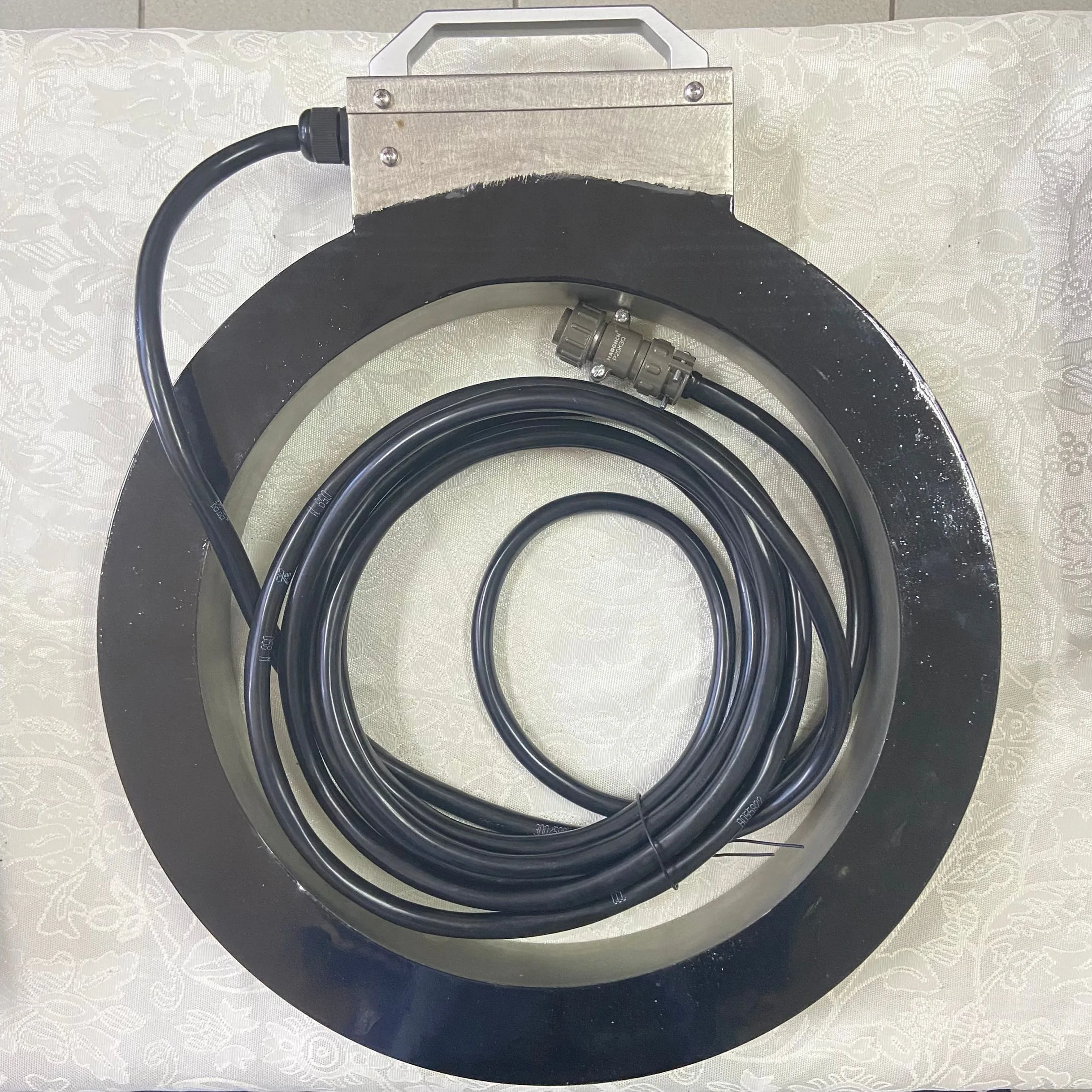

6, Coil size: Φ 300mm, 400 turns in total;

7, Temporary load rate: > 30%;

II. Model guide

Model name	Coil diameter	AC mode, working current	FWDC mode, working current	AC&FWDC mode, working current
HCDX-C200	8inch	15A
HCDX-C250	10inch	15A
HCDX-C280	11inch	15A
HCDX-C300	12inch	15A
HCDX-C350	14inch	20A
HCDX-C400	16inch	25A
HCDX-C200DC	8inch		10A
HCDX-C250DC	10inch		10A
HCDX-C280DC	11inch		10A
HCDX-C300DC	12inch		10A
HCDX-C350DC	14inch		15A
HCDX-C400DC	16inch		15A
HCDX-C200AD	8inch			15/8A
HCDX-C250AC	10inch			15/8A
HCDX-C280AD	11inch			15/8A
HCDX-C300AD	12inch			15/7A
HCDX-C350AD	14inch			20/10A
HCDX-C400AD	16inch			25/12A

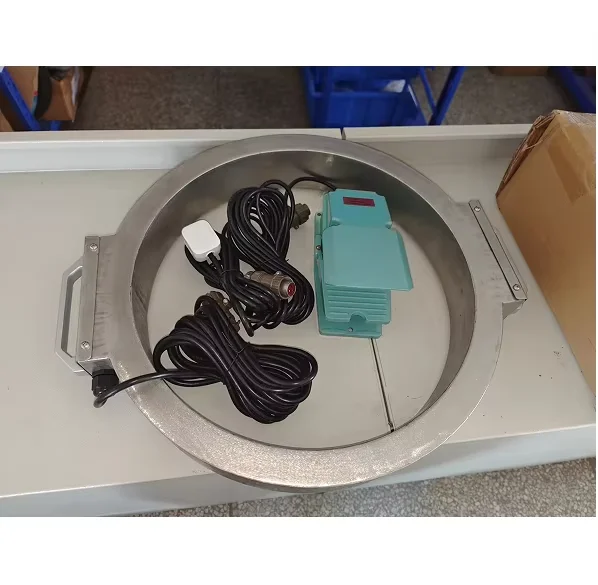

Optional function: Demagnetization, foot switch

III. Function introduction

1, Magnetization - start the electromagnetic field to magnetize the workpiece;

2, Demagnetization - demagnetization field starts to demagnetize the workpiece;

3, Over temperature alarm - the coil has a built-in 75 ℃ temperature sensor. When the set temperature is exceeded, it enters the protection state;

IV. Installation and commissioning

Installation:

1. The equipment shall be installed in a dry environment without metal dust, corrosive gas and inflammable and explosive articles;

2. The temperature of surrounding medium shall not be lower than - 10 ℃ and not higher than + 40 ℃;

3. The relative humidity of the air shall not be greater than 85%;

4. The pipe and wire connection between the installation equipment and each auxiliary facility shall be connected according to the indication sign and plug base;

5. Power supply (power supply, air source, etc., according to equipment installation environment and operation conditions), and the equipment shell is reliably grounded;

Product Tags:


*From:	Your email address is incorrect!
*To:	HUATEC GROUP CORPORATION
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Non Destructive Testing Equipment
Brand Name:	HUATEC
Model Number:	HCDX-C series
Certification:	CE
Place of Origin:	China
MOQ:	1 SET
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month
Delivery Time:	7-10 working days after receipt of your payment
Packaging Details:	carton packaging
Power supply:	AC200-240V 50 / 60Hz
Magnetizing current:	8A (8A * 400T = 3200AT)
Central magnetic field:	Max 110Gs
Demagnetization current:	8-0A
Temporary load rate:	> 30%
