Brand Name: LongJoin
Model Number: JL-722A3
Place of Origin: China
Price: negotiable
Packaging Details: Different packaging methods are adopted according to different modes of transport.
Payment Terms: Western Union,MoneyGram,T/T
Power Supply: Rated voltage：12~24VDC Rated current：12V/45mA；24V/30mA
Power Consumption: 12V/3.5mA；24V/3.5mA
Dimming: DALI2.0
IP Level: IP66
Certifications: RoHS,CE,D4i
Real-world Scenarios: Tunnel & Underpass Lighting
Contact Now
Company Info.
Shanghai Long-Join Intelligent Technology Inc
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Sensor Integration Light Sensing Microwave DALI2.0 Roads Lawns Courtyards Parks

Sensor Integration Light Sensing Microwave DALI2.0
Product Overview

JL-722A3 light controller products are intelligent rotary lock light controllers developed based on ZHAGA BOOK18 interface standard. It adopts light sensing and microwave mobile combined sensor, which can output DALI2.0 dimming signal. The light controller is suitable for lighting scenes such as roads, lawns, courtyards, parks, car parks and construction sites.

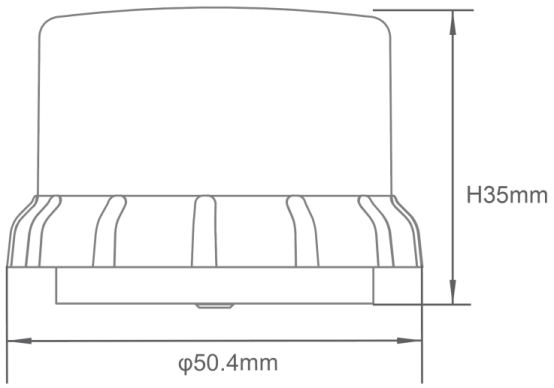

Product Dimensions
JL-722A3 product dimensions and size specifications
Product Features
  • 12 to 24 VDC power supply, low power consumption
  • ZHAGA BOOK18 interface standard
  • Φ50.4*35mm size, suitable for installation in most lamps
  • 0~10V dimming interface
  • Support WIFI&BLE dual-mode configuration and control
  • Support third-party voice control, such as Alexa, Google Assistant, SmartThings, IFTTT, Xiaodu, Tencent Xiaowei, Dingdong, etc.
  • IP66 protection rating
Technical Specifications
ModelJL-722A3
Power SupplyRated voltage: 12~24VDC
Rated current: 12V/45mA; 24V/30mA
Power Consumption12V/3.5mA; 24V/3.5mA
DimmingDALI2.0
Spectral Acquisition Range350~1100nm, Peak wavelength 550nm
Turn on Illuminance50Lux(±10)
Turn off IlluminanceReflected light + 40Lux(±10) after each turn on
Lower limit: 50+40Lux(±10)
Upper limit: 6000Lux(±100)
Reflected light compensation upper limit6000Lux(±100)
InitializationAfter power on, the light is turned on by default and maintains 5S, then automatically turns off the light and enters the auto-sensing operation mode
Turn on delay5S
Turn off delay60S
0%~20%; 20%~100% Brightness change time1S
100%~20%; X%~0% Brightness change time8S
100% brightness hold time after microwave trigger30s
Stand-by Dimming20%
Maximum hanging height of microwave15M
Sensing radius4-8M (by 15m hanging height)
Microwave induction angle92°
Microwave anti-false triggerCan prevent wind, rain, leaves, and small animals
Mechanical VibrationIEC60068-2-6
Flammability LevelUL94-V0
Operating Temperature-40℃~70℃
Storage Temperature-40℃~85℃
Operating Humidity5%RH~99%RH
IP LevelIP66
CertificationsProduct certifications and compliance standards
Frequently Asked Questions
What is a Sensor Integration Light Sensing Microwave DALI2.0 lighting controller?
It is an integrated intelligent lighting controller that combines light sensing and microwave detection, supports DALI2.0 digital dimming, and is used for automatic and energy-saving control of outdoor lighting.
What is the advantage of integrating light sensing and microwave detection?
Light sensing controls lighting according to ambient brightness, while microwave detects moving people or vehicles. The dual-sensor linkage realizes high-precision automatic control and significant energy saving.
What are the features of DALI2.0 in this integrated sensor controller?
DALI2.0 provides stable digital dimming, two-way communication, addressable control, high anti-interference, and precise brightness adjustment for professional lighting systems.
How does this sensor-integrated controller improve energy efficiency?
It automatically turns off or dims lights when no one is present and brightness is sufficient, avoiding long-term full-bright operation and greatly reducing power consumption.
In which scenarios is this sensor integration controller mainly applied?
It is widely used in roads, lawns, courtyards, parks, residential areas and other outdoor public lighting places.
