Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function

Products Description

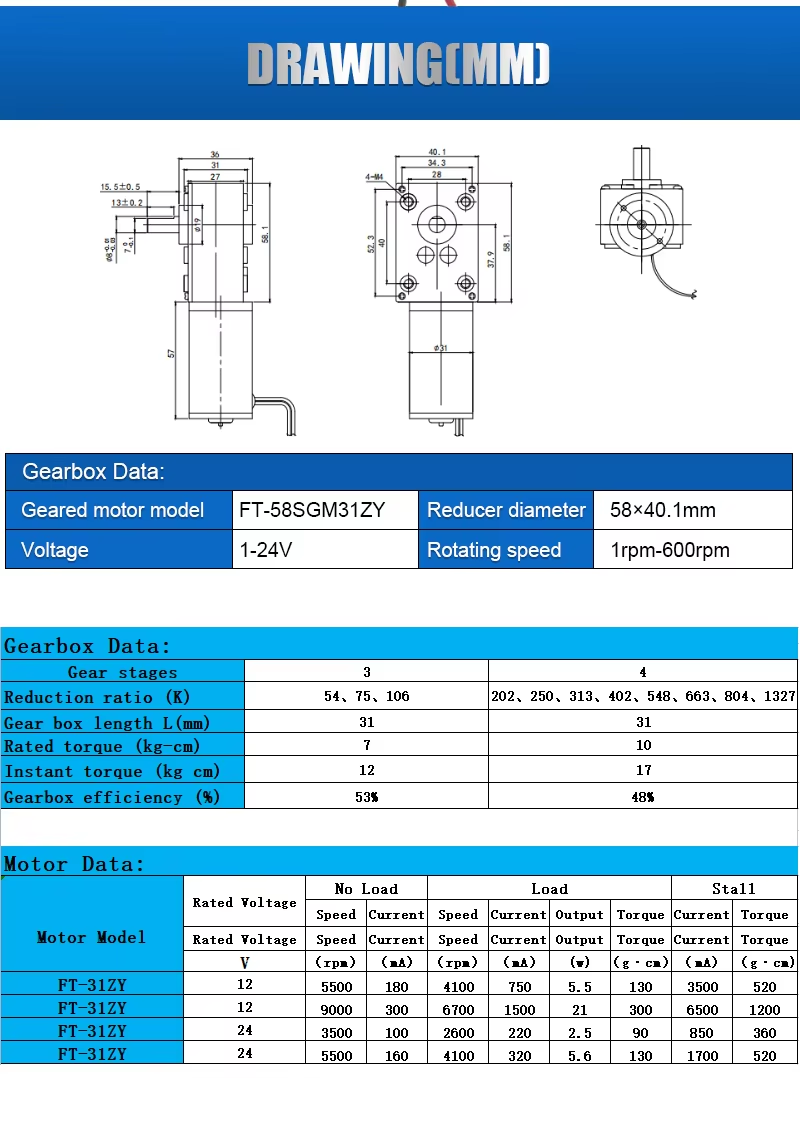

FT-58SGM31ZY Full Metal High Torque Silent 12v 24v Mini Low Speed Rpm Worm Gear Motor with Self-Locking Function

FT-58SGM31ZY Product Feature:

1. Very sturdy construction inside and outside. The outside shell is well build and has excellent access to mounting M4 screws.

2. Double Ball bearing and brushes have carbon pads construct, even under max load , Super quiet and smooth operation and last much longer life.

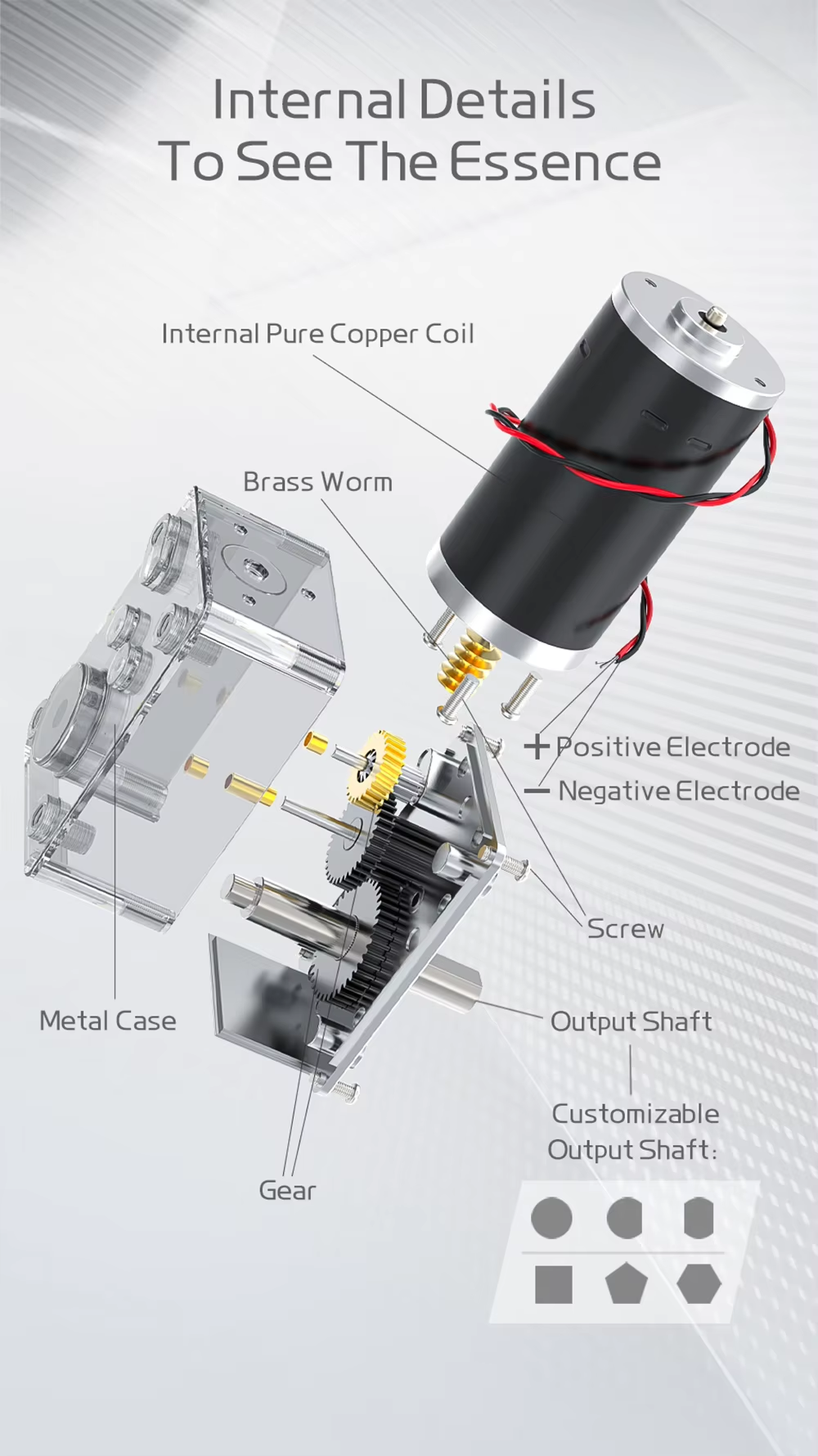

3. The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation (CW / CCW);

4.Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock;

5.The reducer output shaft arranged vertically with the motor shaft, whole motor output shaft relatively-short than general gear motor, widely used to be installed the dimensions requirements strictly occasion.

FT-58SGM31ZY Product Advantages

Definition: The gear reduction motor is based on the ordinary DC motor and is equipped with a matching gear reducer.

Features: Small size, high strength, low noise long life

Function: Provide lower speed, larger torque,self-locking.

Advantage: Simplify space, increase torque, reduce speed rpm.

Dongguan Futeng Motor Co., Ltd.

Registered Capital: 10 million yuan

Industry: Manufacture of micro reduction motors- Manufacture of motors

Main business:  one-stop service including production, R&D, sales, and processing: processing micro-motors, gear motors, gearboxes, plastic, hardware products, etc.

Widely used in household appliances, medical equipment, smart home, security system, electric,etc.

Founded in May 2017, covering an area of 16,000 square meters, located in Dongguan, China. has always been committed to the research, production and sales of micro DC motors, spur gear reduction motors, planetary gear reduction motors, worm gear reduction motors and other series of non- custom reduction motors.

Obtain ITAF16949 automotive quality management system, ISO9001, ISO45001, ISO1401 quality, environmental and occupational health systems, CE, ROHS and other international certifications, Dongguan Fute Motor Co., Ltd., with the management philosophy "customer first, quality first", continuously innovates and improves product design, improves product performance and service speed, provides competitive solutions for customers, creates value for customers, and is to becoming the world's leading micro motor brand.
