| Categories | Two Wheeler TFT LCD |
|---|---|
| Brand Name: | Jingtai |
| Model Number: | JT-2.8IPSTW |
| Certification: | ISO9001 / ISO14000 |
| Place of Origin: | ShenZhen / China |
| MOQ: | 5pcs |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union,MoneyGram |
| Supply Ability: | 2000K pcs per month |
| Delivery Time: | 1-5 weeks |
| Packaging Details: | Standard Exportation Package |
| Price: | 1-20 |
| Key Words: | 2.8 Inch IPS TW |
| Resolution: | 240*320 |
| Display Mode: | IPS Full Viewing Angle |
| Luminance: | 250cd/m²(Typ) 500cd/m²(Typ) 800cd/m²(Typ) 1000cd/m² (Typ) |
| Interface Definition: | MCU/SPI/RGB/MIPI |
| Touch Screen: | CTP |
| CTP Interface: | 12C |
| CTP Structure: | GF/GFF |
| Company Info. |
| Shenzhen Jingtai Liquid Crystal Display Technology Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Attribute | Value |
|---|---|
| Resolution | 240*320 pixels |
| Display Mode | IPS Full Viewing Angle |
| Luminance | 250cd/m² (Typ), 500cd/m² (Typ), 800cd/m² (Typ), 1000cd/m² (Typ) |
| Interface | MCU/SPI/RGB/MIPI |
| Touch Screen | CTP (Capacitive Touch Panel) |
| CTP Interface | I2C |
| CTP Structure | GF/GFF |
| Application | Industrial Control |
| Active Area | 43.2*57.6mm |
| Aspect Ratio | 4:3 |
| Display Mode | Normally Black |
| Viewing Angle (CR>10) | 80/80/80/80 (Typ) |
| Contrast Ratio | 1000 (MIN), 1200 (Typ) |
| NTSC | 70% (Typ) |
| Operating Temperature | -30℃ to +80℃ |
| Storage Temperature | -30℃ to +85℃ |
2.8-Inch TFT LCD Screen, 240×320 IPS Type, SPI/MIPI/RGB/MCU Serial Interface LCD Module
2.8-Inch TFT Screen – DESCRIPTION
The JT-2.8IPSTW is a 2.8-inch TFT-LCD module designed for portrait mode operation, featuring a resolution of 240 × 320 pixels. This LCD module incorporates the ST7789 driver IC and supports an SPI/MIPI/RGB/MCU interface. Its operating voltage (Vdd) ranges from 2.6V to 3.3V, with a typical value of 2.8V. The module has a 12 o’clock viewing direction and a contrast ratio 1000MIN, 1200 (Typ).
With a typical brightness of 250 nits, the JT-2.8IPSTW is a portrait-mode TFT-LCD suited for various applications. It can operate at temperatures from -30 °C to +80 °C, while its storage temperature range is from -30 °C to +85 °C. This module is an ideal display solution for MP4 players, security door systems, mini audio players, baby monitors, and other handheld devices.

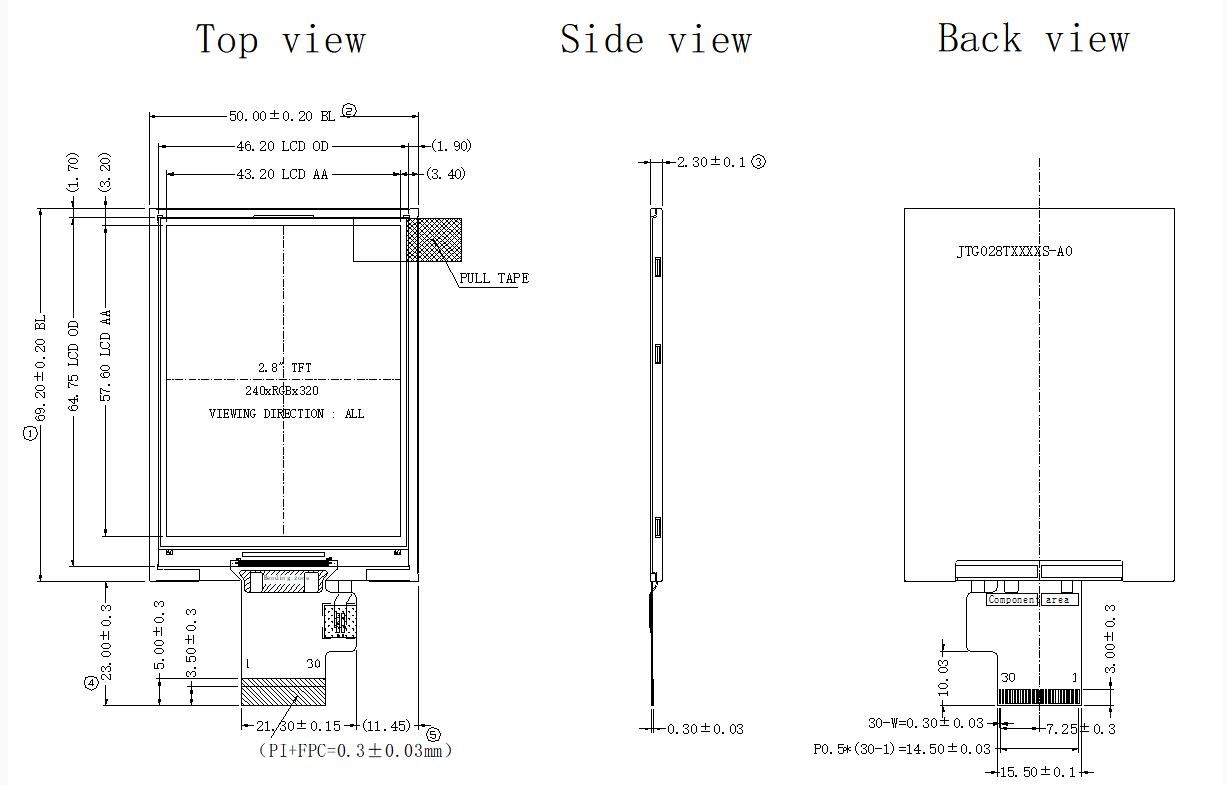

2.8" LCD, 2.8 inch 240*320 MIPI/MCU/SPI/RGB TFT LCD Drawing
|
