Mono Block Bridge Saw Stone Infrared Cutting Machine
Basic Specifications
Model NO.ZDCM-400
ApplicationConstruction, Stone Industry
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlPLC
CertificationCCC, SONCAP, GOST, ISO, CE
Blade DiameterΦ300-Φ400
Max Processing Size3200*2000*80mm
Dimension of Worktable3200*2000mm
Workable Tilting Degree0-85°
Worktable Rotation Degree(Optional)0-90° / 0-360°
Main Motor15kw
Water Consumption3m3/H
Outline Dimension5000*3100*2600mm
Transport PackageLoad in a 40 Feet Container
TrademarkXianda
OriginJinjiang, Fujian, China
HS Code84641090
Production Capacity1000 Sets/Year
Product Overview
ZDCM-400 Monoblock bridge cutting machine (special for Marble and
sintered stone)
This machine adopts Microcomputer system for easy operation and
features an integrated structure for simple installation. The
machine body frame is processed and formed by CNC gantry milling
center at one time, utilizing high-precision linear guide sliders,
grinding-grade ball screws, and high-end servo systems. This design
significantly improves stability, processing accuracy, and
production efficiency while reducing failure rates. Ideal for
processing various large-scale plates with high precision
requirements and high value.
Technical Parameters
| Parameter | Unit | ZDCM-400-A | ZDCM-400-B | ZDCM-400-C |
|---|
| Control System Type | / | PLC | PLC | CNC |
| Blade Diameter | mm | φ300-φ400 | φ300-φ400 | φ300-φ400 |
| Worktable Size | mm | 3200*2000 | 3200*2000 | 3200*2000 |
| Max Processing Size | mm | 3200*2000*80 | 3200*2000*80 | 3200*2000*80 |
| Worktable Tilting Angle | ° | 0°-85° | 0°-85° | 0°-85° |
| Cutting Head Rotation Degree | ° | 0°-90° | 0°-360° | 0°-360° |
| Cutting Head Chamfer Rotating Degree | ° | 0°-45° | 0°-45° | 0°-45° |
| Main Motor Power | kw | 15 | 15 | 15 |
| Water Consumption | m³/h | 3 | 3 | 3 |
| Outline Dimension | mm | 5300*3100*2600 | 5300*3100*2600 | 5300*3100*2600 |

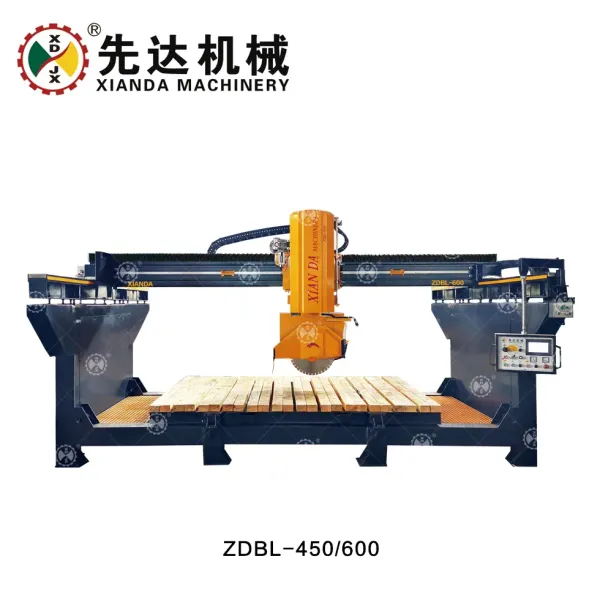

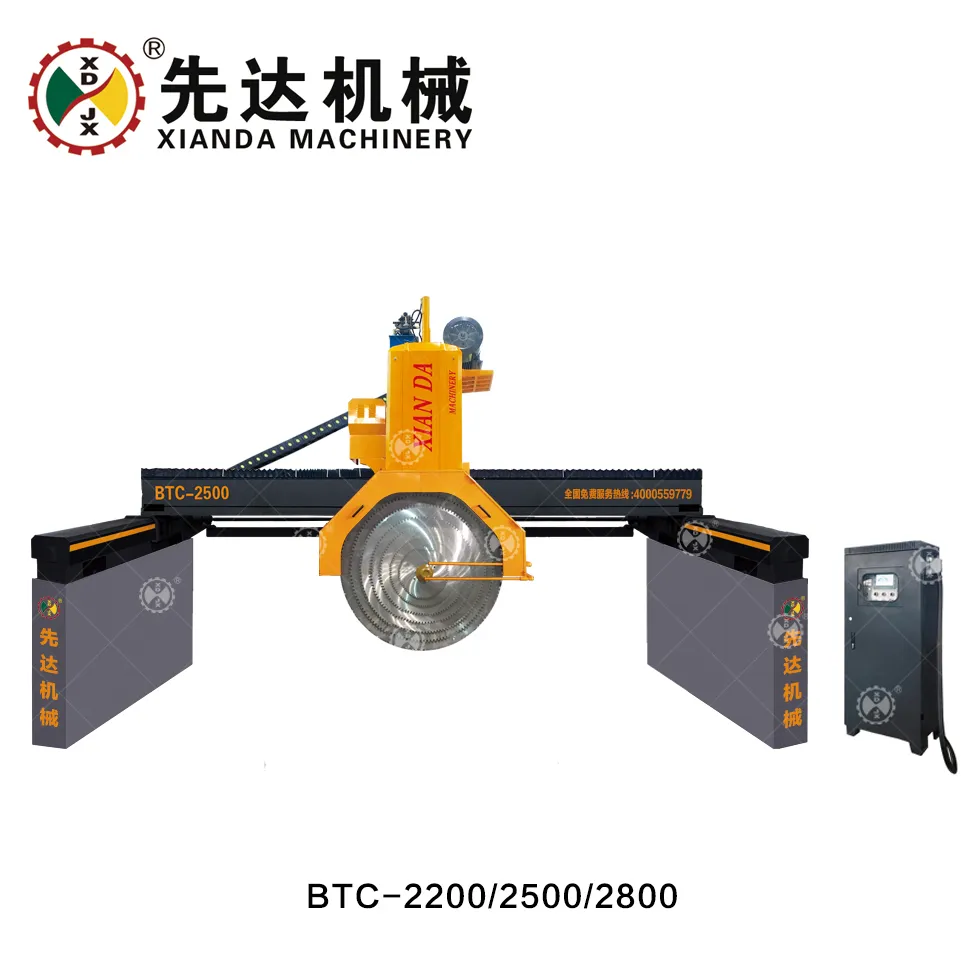

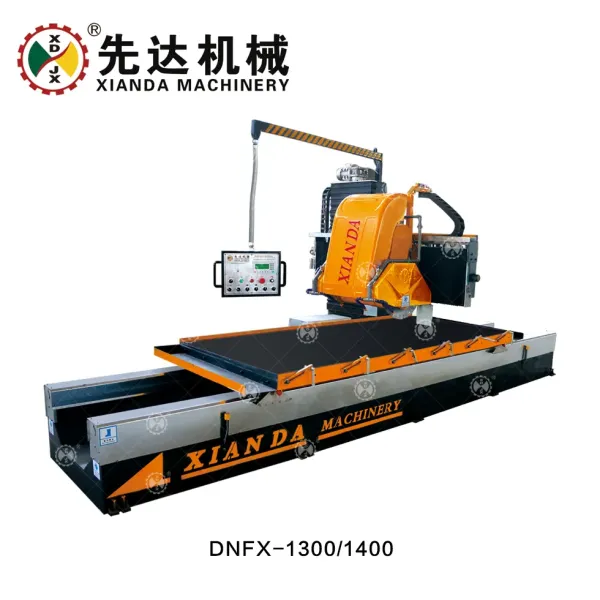

Related Products
