IEC 60529 Dust test chamber

Categories Dust Test Chamber
Brand Name: kingpo
Model Number: KP-DC3200
Certification: ISO 17025 calibration certificate
Place of Origin: CN
MOQ: 1
Price: to be quoted
Payment Terms: T/T
Supply Ability: 10 units per month
Delivery Time: 40 working days
Packaging Details: plywood box
Internal dimension: 2500x3000x3200mm
External Dimensions: 3000 × 3300 × 3400 mm (W×D×H)
Dust Type: Talcum powder (2kg/m³)
Airflow Velocity: Below 2 m/s (adjustable)
Test Standards: IEC 60529, ISO 20653,
Power Supply: Three-phase 380V, 60Hz, 6.0KW
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IEC 60529 Dust test chamber

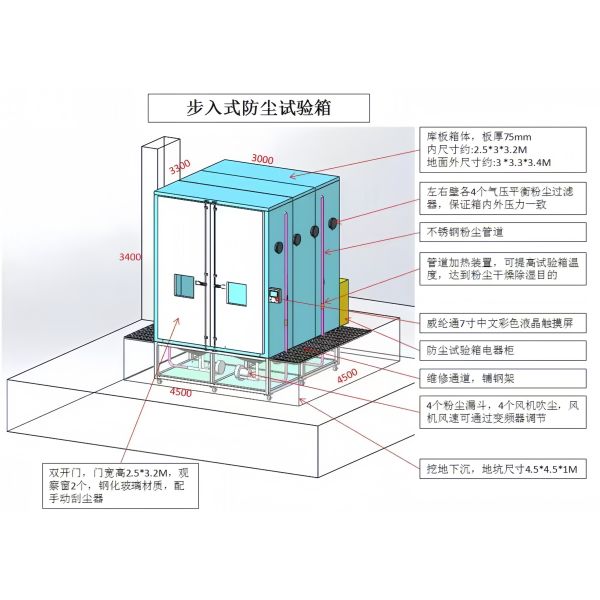

IEC 60529 Dust Test Chamber
Dust Test Chamber
IEC 60529 Dust Test Chamber
Use

Dust Test chamber is applicable to all kinds of auto parts for dust proof testing. The test unit can be used for lights, instruments, electrical dust covers, steering systems, door locks, etc., and for testing product sealing.

Reference Standards
  • IEC60529
  • IEC60598-1
  • ISO 20653
Technical Parameters
ParameterValue
Internal dimensionW2500 × D3000 × H3200 mm
DimensionW3000mm × D3300mm × H3400mm
Metal mesh diameter50μm
Air velocityNo more than 2m/s
The Talcum powder amount2kg/m³
Flow meter A60~600ml/min
Flow meter B0.60~6l/min
Internal materialSUS304 corrosion resistant plate
External materialCold plate rust proof and plastic spraying treatment
DoorTempered glass door
Vacuum pump0 ~ -50Kpa
Temperature controlRT~60℃
Sample weight≤100KG
Timing range0s~999h99m99s
Load cycle control0s~999h99m99s
Working noise≤60dB @ 1 meter away from machine
Dustproof plug base, supplyFor AC 220V 20A power, the constant control timer to control power on or power off
Maximum sample weight5 tons
PowerAC380V 50/60Hz 6KW
