High Efficiency Permanent Magnet Generator with Cast Iron Shell Copper Stator and NdFeB Magnet

Categories Permanent Magnet Generator
Stator Material: Copper
Shaft material: Steel
Brand Name: Greef
Model Number: GDF
Place Of Origin: China
Certification: CE
MOQ: 1 Set
Price: Negotiable
Packaging Details: Foam+plywooden Case
Delivery Time: 25 Working Days
Payment Terms: T/T
Bearing brand: SKF
Generator type: 3phase AC Synchronous Generator
Generatror shell material: Cast Iron
Current Type: AC
Cooling Method: Fan Cooling
Rated Power: 0.5-5000KW
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Efficiency Permanent Magnet Generator with Cast Iron Shell Copper Stator and NdFeB Magnet

AC Current Permanent Magnet Generator with SKF Bearing on Steel Shaft
Reliable Hydro PMG Performance, Delivering Stable Power Under Varying Flow
Product Description
Permanent Magnet Generator (PMG): A Leap in Power Generation Efficiency
A Permanent Magnet Generator (PMG) is an advanced type of electric generator that utilizes high-strength permanent magnets on its rotor to create a powerful magnetic field, instead of relying on traditional electrically-excited windings.
This innovative design eliminates the need for slip rings and brushes, leading to significant advantages:
  • Higher Efficiency: Reduces energy losses, resulting in superior efficiency, especially under partial loads.
  • Exceptional Reliability: Brushless structure ensures minimal maintenance and a longer operational lifespan.
  • Compact & Lightweight: Offers a higher power density, making it ideal for space-constrained applications.
  • Excellent Performance: Provides superior voltage regulation and faster response.
PMGs are the ideal power solution for wind turbines, marine applications, backup power systems, and any scenario demanding reliable and efficient energy conversion.
Product Parameters
ParameterValueUnit
Rated power0.5-5000kW
Rated rotate speed20-3000rpm
Rated voltage48-1140Vac
Frequency60/50Hz
Number of Poles24
Generator type3phase AC Synchronous generator
Magnet typeNdFeB
Winding MethodY
Magnet temperature levelMax.120℃
Winding temperature levelMax.180℃
Efficiency>95%
Insulate GradeH
Insulating resistance100Mohm Min(500Vdc)
Classification of degreesIP54
Generator shell materialCast Iron
Winding material100% Copper
Shaft materialSteel
Iron CoreCold rolled silicon steel sheet
Bearing brandSKF
Cooling MethodFan Cooling
Weight (N.W /G.W )132kg /152kg
Packing Size870*470*570mm
InstallationHorizontal
Applications
Application Scope of Permanent Magnet Generators (PMGs)
Permanent Magnet Generators (PMGs), known for their high efficiency, reliability, and compact design, have become the preferred power solution in a wide range of modern industrial fields. Key application areas include:
  • Wind Power Generation: The core component in modern direct-drive and semi-direct-drive wind turbines, offering superior efficiency, especially in variable-speed operation.
  • New Energy Vehicles: Widely used in electric and hybrid vehicles as the main traction motor or auxiliary generator.
  • Offshore: Ideal for ship shaft generators and main/auxiliary power systems due to their high reliability and low maintenance.
  • Backup Power Systems: Used in diesel and gas generator sets to provide responsive, stable, and reliable emergency and standby power.
  • High-Speed Applications: Suitable for high-speed drives such as microturbines and flywheel energy storage systems.
  • Industrial Equipment: Employed in special-purpose power systems where high power density and utmost reliability are critical.
Product Images

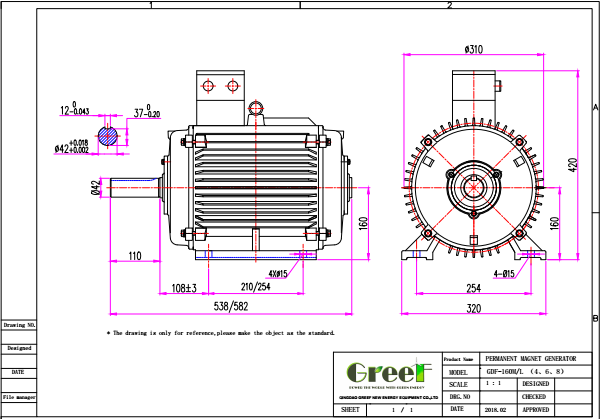

Permanent Magnet Generator technical diagram

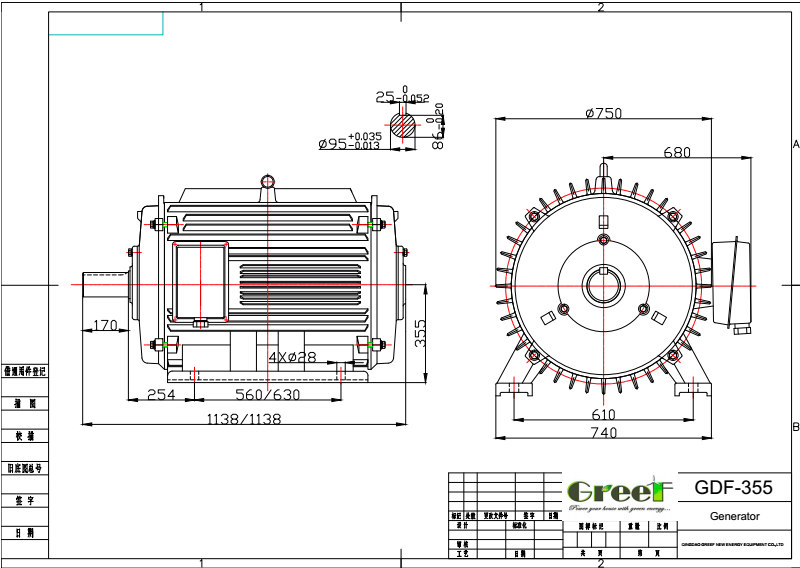

Permanent Magnet Generator components

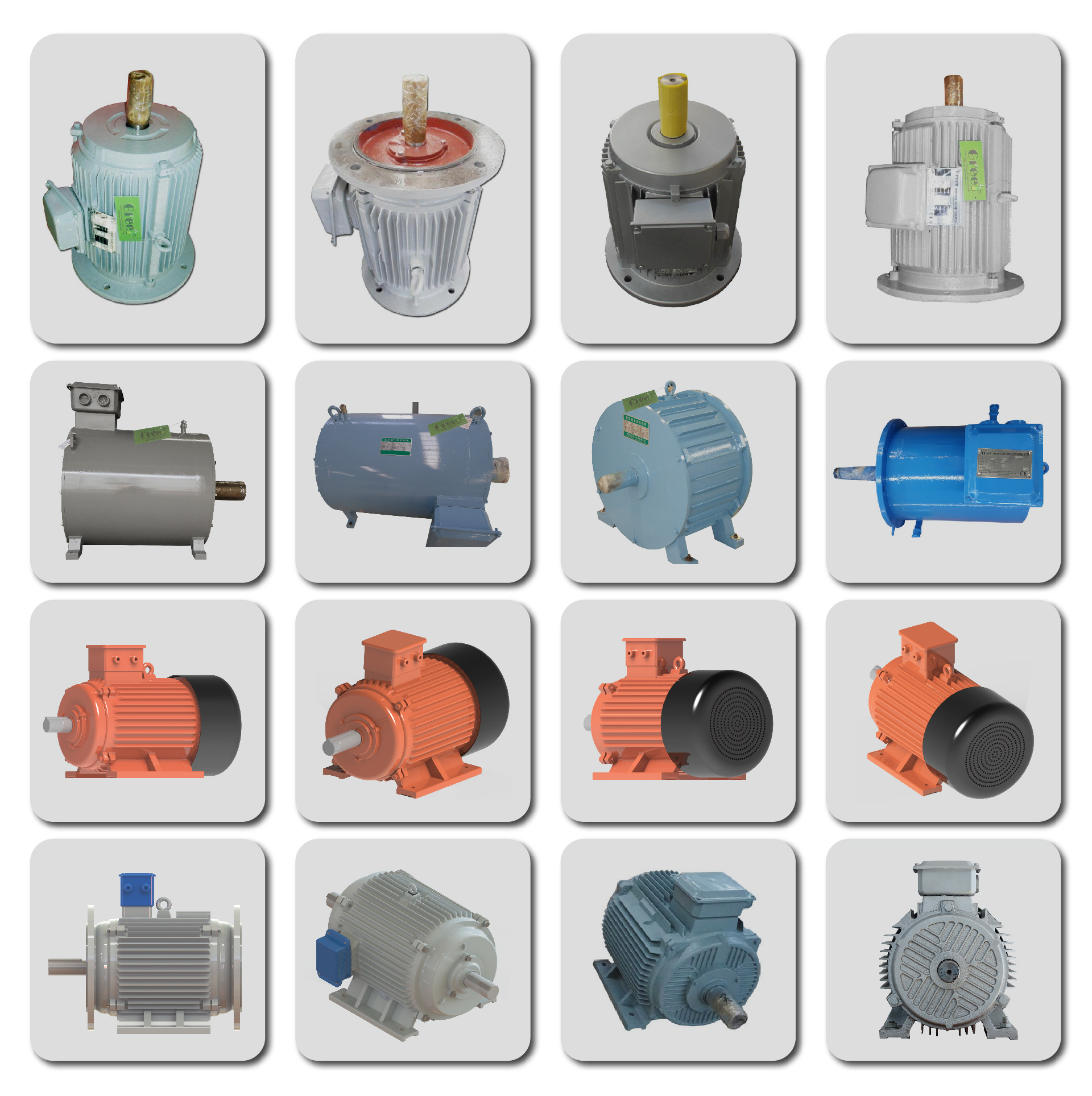

Permanent Magnet Generator product showcase

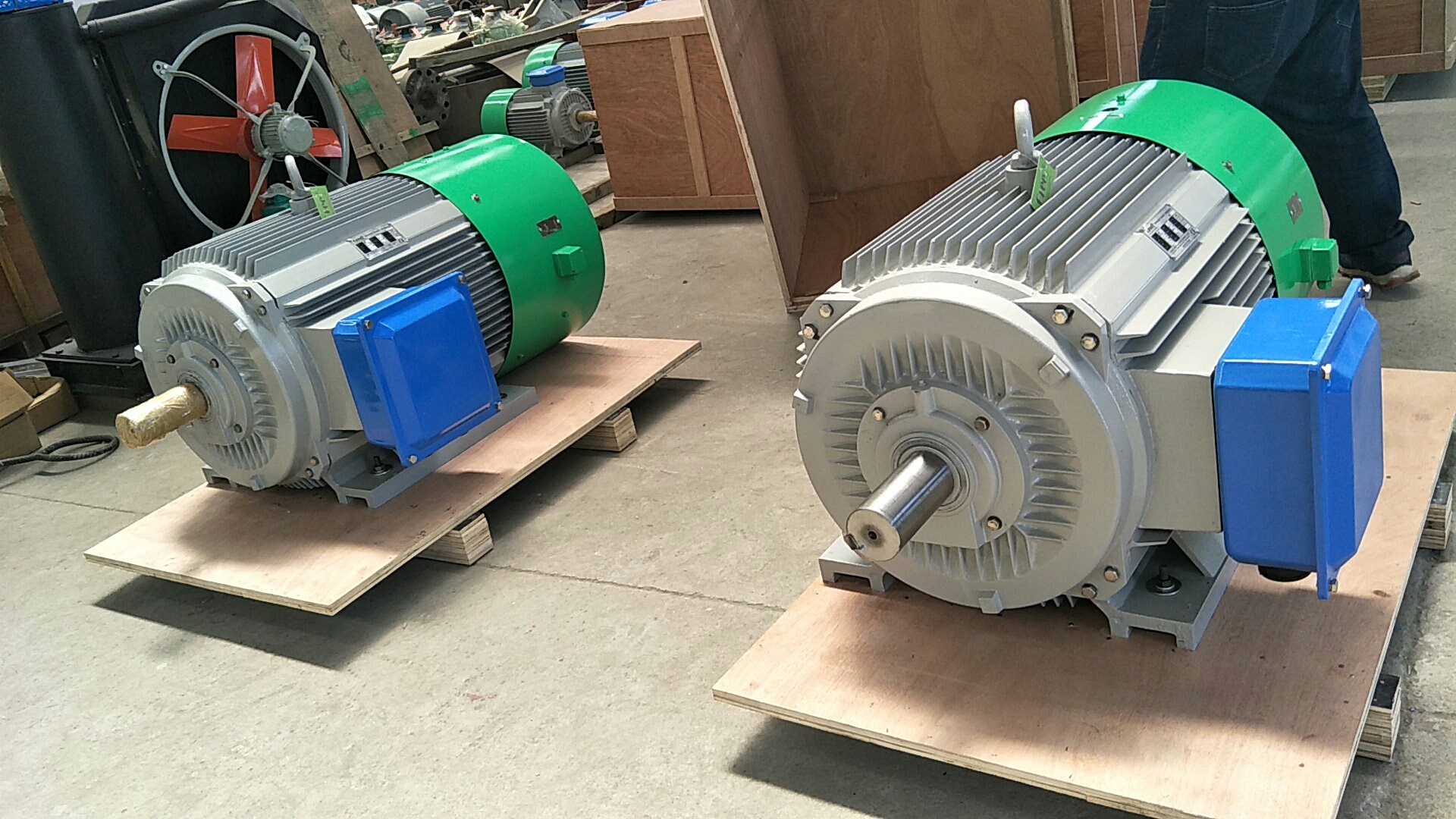

GDF series Permanent Magnet Generators
Complete product line of Permanent Magnet Generators

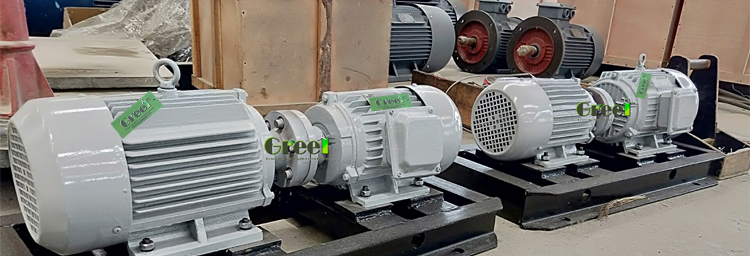

Video demonstration of Permanent Magnet Generator
Customization
Brand Name: Greef
Model Number: GDF
Place Of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Foam+plywooden Case
Delivery Time: 25 Working Days
Payment Terms: T/T
Shaft material: Steel
Magnet type: NdFeB
Cooling Method: Fan Cooling
Generator type: 3phase AC Synchronous Generator
Generator shell material: Cast Iron
Keywords: Permanent Magnet Generator, LOW SPEED, magnetic power generator
Packing and Shipping
Product Packaging:
The Permanent Magnet Generator is carefully packaged in a sturdy cardboard box to ensure safe transportation. The generator is securely wrapped in bubble wrap to prevent any damage during shipping. Inside the box, you will find the generator, user manual, and necessary installation accessories.
Shipping:
We strive to ship your Permanent Magnet Generator as quickly as possible. Once your order is confirmed, the generator will be carefully packed and shipped via a reputable carrier such as UPS or FedEx. You will receive a tracking number to monitor the delivery status of your order. Please allow 3-5 business days for delivery depending on your location.
