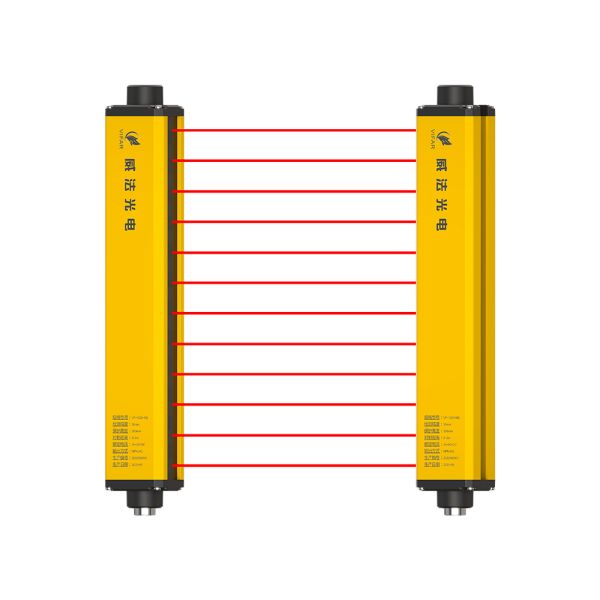

Customizable Light Curtain Machine Guarding Safety Protector 200mA DC 32V IP54

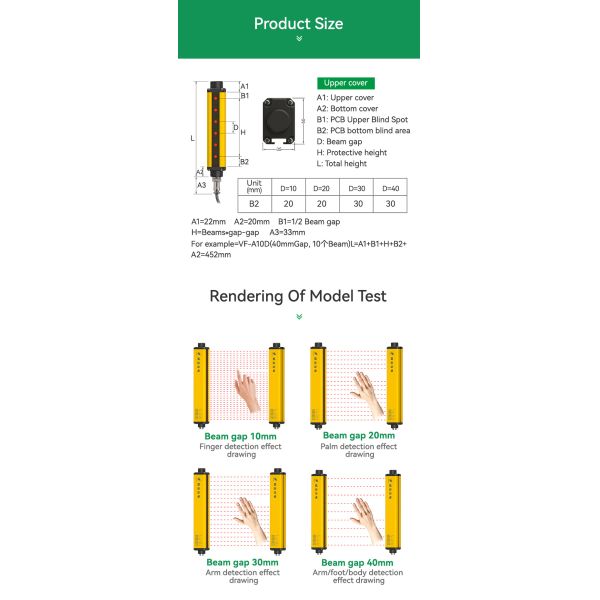

SZIE : 30*35mm /35*50 mm / 32*25 mm/ 32*20 mm/25*12 mm/10*22mm optional

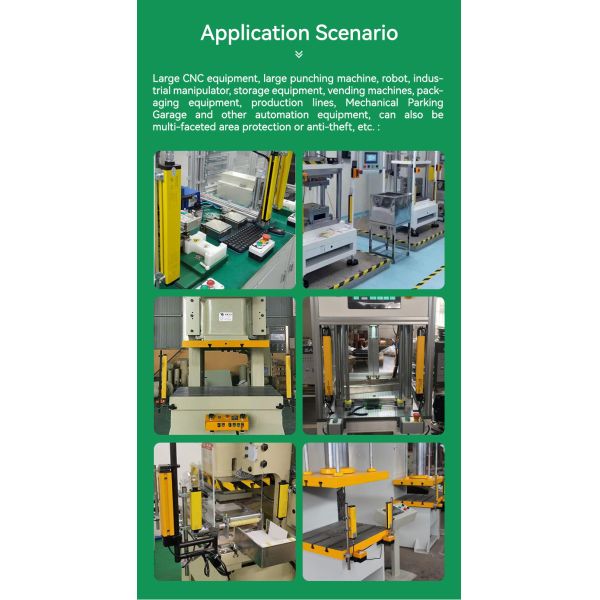

Ideal for equipment with mechanical hazards (rotation, shearing, extrusion) where personnel frequently access dangerous zones (e.g., manual loading/unloading, debugging). It acts as a reliable safety barrier to prevent accidents in industrial environments.

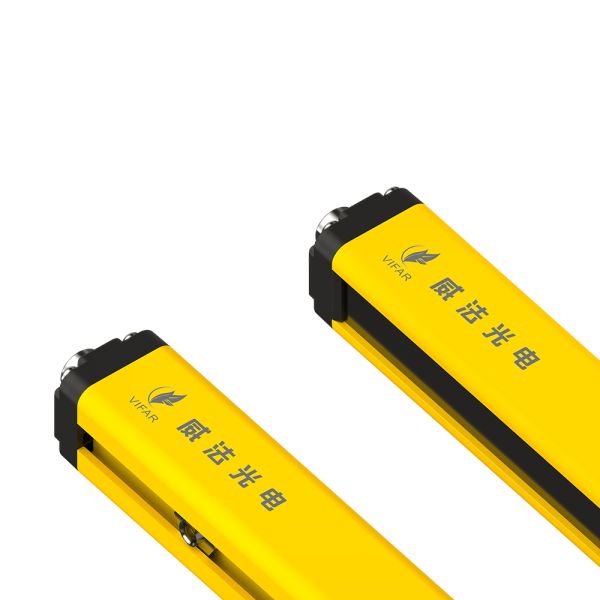

• Robust Aluminum Alloy Housing: Crafted from high-strength, corrosion-resistant aluminum alloy—ensuring durability and long-term performance in harsh industrial settings.

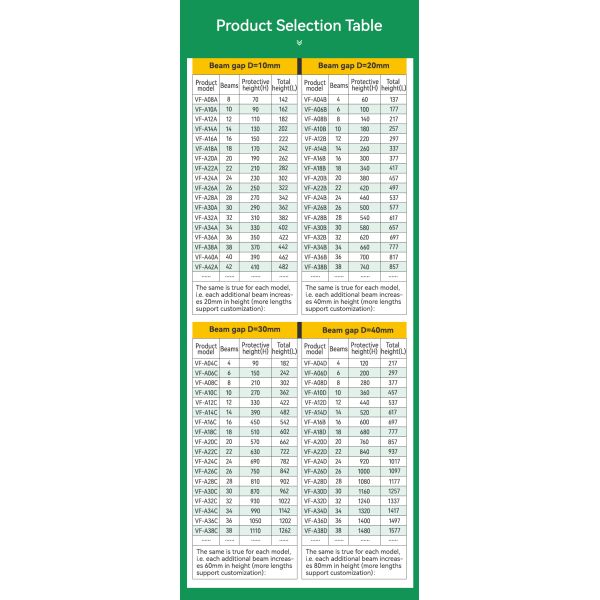

• Versatile Sizing & Detection Options: Available in sizes like 3035, 3550, 32*25, etc. Offers four detection gaps (10/20/30/40mm) and a maximum detection range of 30 meters—adapting to diverse machinery layouts.
• Customizable Aesthetics: Choose from three color options—yellow, gold, and silver—to seamlessly match your workspace’s style.

• Powered by ATmega168 chip for exceptional stability and responsiveness (ultra-fast 0.01s response time).
• Compliant with EU standards (CE certified, Safety Level 4) and trusted globally.

• Voltage: DC10-DC32V; Output: PNP/NPN (optional); Protection Class: IP50/IP54.
• Anti-optical interference (incidence angle <5°), insulation resistance ≥100MΩ, and dielectric strength AC1500V/60S—guaranteeing safe and stable operation.

With its combination of robust build, customizable design, and industry-leading safety certifications, this light curtain is the ultimate solution for safeguarding personnel and machinery in high-risk industrial scenarios. Elevate your workspace’s safety standards while ensuring operational efficiency—trusted by manufacturers worldwide.

Q:How to order our product ?

1).Please tell us the model and quantity and other request you need.

2).We make the PI for you.

3).After you confirm the PI, we arrange the order for you after receiving your payment.

4).After the goods finished, we send the goods out to you and tell you the tracking number.

5).We will track your goods until you receive the goods.

Q: What's your warranty ?

A: One years

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by email, we will reply within 24hrs.

Thank you & Now pls send your kindly inquiry!
