Name: UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and HighTemperature Applications
Brand: MYSUN
Price: 1 USD

Home >

UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications

Categories	PFA Insulated Wire
Model Number:	UL8298
Brand Name:	MYSUN
Place of Origin:	Guangdong, China
MOQ:	3050
Conductor Material:	Tinned Copper
Diameter:	10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26AWG
Insulation Material:	PFA
Rated Voltage:	450V, 750V
Conductor Type:	Solid
Shape:	Round
Temperature Rating:	250℃
Conductor Resistance:	59.78 Ω/KM (0.34mm2), 40.1 Ω/KM (0.50mm2), 26.7 Ω/KM (0.75mm2), 20 Ω/KM (1.00mm2), 14.35 Ω/KM (1.25mm2), 13.7 Ω/KM (1.50mm2), 8.78 Ω/KM (2.00mm2), 7.16 Ω/KM (2.50mm2)
Unit Length:	305/1000 M/FT
Conductor Construction:	7/0.15 (0.34mm2), 7/0.19 (0.50mm2), 19/0.23 (0.75mm2), 19/0.26 (1.00mm2), 19/0.29 (1.25mm2), 19/0.32 (1.50mm2), 19/0.37 (2.00mm2), 19/0.41 (2.50mm2)
Insulation Thickness:	0.305mm (0.34-1.50mm2), 0.350mm (2.00-2.50mm2)
Wire Diameter:	1.36mm (0.34mm2), 1.56mm (0.50mm2), 1.78mm (0.75mm2), 1.91mm (1.00mm2), 2.16mm (1.25mm2), 2.31mm (1.50mm2), 2.55mm (2.00mm2), 2.76mm (2.50mm2)
Conductor Diameter:	0.75mm (0.34mm2), 0.95mm (0.50mm2), 1.17mm (0.75mm2), 1.31mm (1.00mm2), 1.46mm (1.25mm2), 1.61mm (1.50mm2), 1.85mm (2.00mm2), 2.06mm (2.50mm2)
Voltage Rating:	450/750V
Insulation Type:	PFA

Contact Now

Add to Cart

Company Info.

Shenzhen Mysun Insulation Materials Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications

UL8298 PFA Wire - High Temperature Sensor Wire

Premium PFA Wire Supplier for Fortune 500 Companies

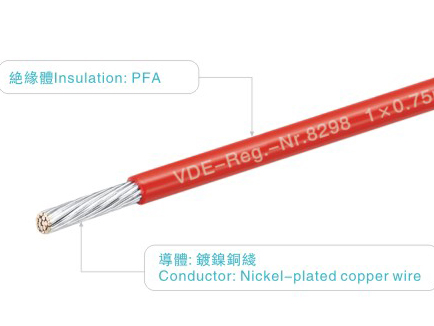

Technical Specifications

UL8298	UL1330	Conductor	Insulation	Max. Cond Resistance (Ω/KM)	Unit Length (M)(Ft)
Size (mm²)	Construction (No.mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)
0.34	7/0.15	0.75	0.305	1.36	59.78	610/2000
0.50	7/0.19	0.95	0.305	1.56	40.1	305/1000
0.75	19/0.23	1.17	0.305	1.78	26.7	305/1000
1.00	19/0.26	1.31	0.305	1.91	20	305/1000
1.25	19/0.29	1.46	0.305	2.16	14.35	305/1000
1.50	19/0.32	1.61	0.305	2.31	13.7	305/1000
2.00	19/0.37	1.85	0.350	2.55	8.78	305/1000
2.50	19/0.41	2.06	0.350	2.76	7.16	305/1000

Click Contact us Get the Best Quote

Company Profile

Our Product Range

Applications

Global Clients

Industry Exhibitions

Certifications

Frequently Asked Questions

Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
What We Provide: High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
Why Choose Us: Free samples, competitive pricing, high quality standards, and customized services.
Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment methods: T/T, L/C, PayPal, Western Union, Cash.
