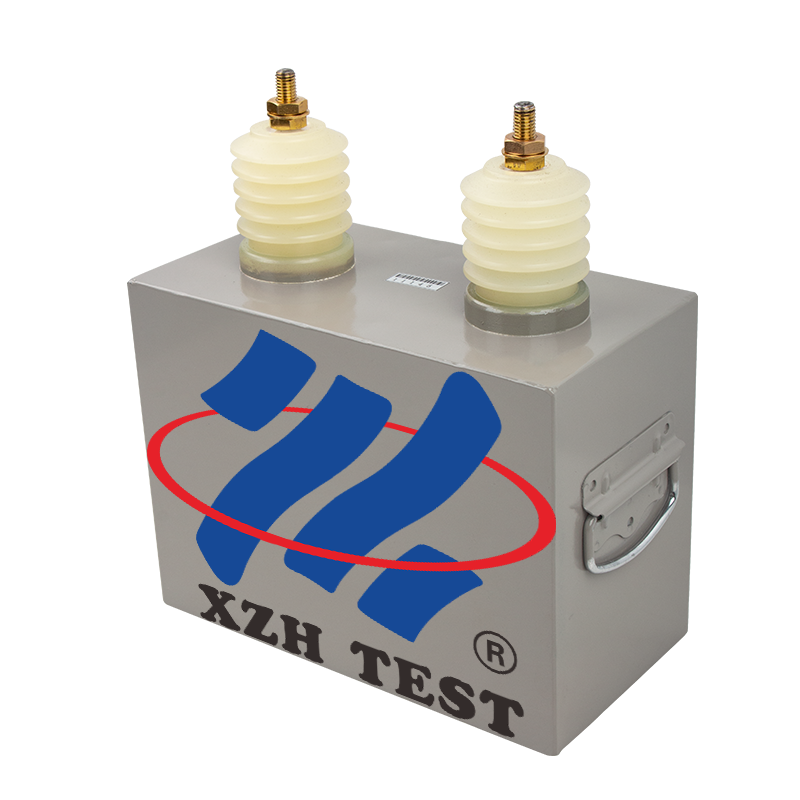

35KV 2UF Pulse Capacitor for Energy Storage

XHCC-2/35

Overview

Employing imported films and a non-inductive winding design, pulse energy storage capacitors deliver superior self-healing capabilities and explosion-proof properties. Their key characteristics include robust structural reliability, leak-free operation, eco-friendly performance (no pollution), moistureproof and fireproof features, extended lifespan, small footprint, and reduced weight.

Applications

These capacitors accumulate energy from low-power sources through charging over set time periods, then discharge the stored energy instantaneously in a fraction of a second to produce intense impulse current and high impulse power. Primary uses encompass high-voltage impulse discharge experiments, high-energy physics research, oscillation loop systems, and geological exploration projects.

Technical Parameters
Ambient temperature: -20 to +50℃;
Altitude: ≤2000 meters, specifications for altitudes above 2000 meters will be provided separately;
Capacitance tolerance: ±5%;
Rated capacitance 2uF
Rated voltage level 35kV

Precautions and Common Faults
1. Avoid impacting or bumping the pulse energy storage capacitor; otherwise, the internal film may be easily damaged.
2. When using the pulse energy storage capacitor, please read the instruction manual and the capacitor label to prevent overvoltage use.
3. During use, pay attention to the voltage rating of the connecting wires and the safety distance.
4. After the test is completed, the high-voltage terminal must be fully discharged.
5. If there is an abnormal sound inside the capacitor during use, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If the capacitor casing shows bulging or protrusions, it is recommended to stop using it, as there is a risk of internal material deterioration and reduced insulation.
After-Sales Service

The instrument is covered by a free one-year warranty from the date of purchase for product quality issues, and lifetime repair and technical services are provided. If you find that the instrument is not functioning normally or has a fault, please contact us in time so that we can arrange the most convenient and effective solution for you.

If you are interested in this type of equipment, please feel free to contact us. We also accept customized services.

Product Tags:


*From:	Your email address is incorrect!
*To:	Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Cable Fault Locator
Brand Name:	XZH Test
Model Number:	XHCC-2/35
Certification:	CE/ISO
Place of Origin:	China
MOQ:	1uint
Payment Terms:	T/T
Supply Ability:	2000unit/year
Delivery Time:	5-8 work days
Packaging Details:	wooden box
