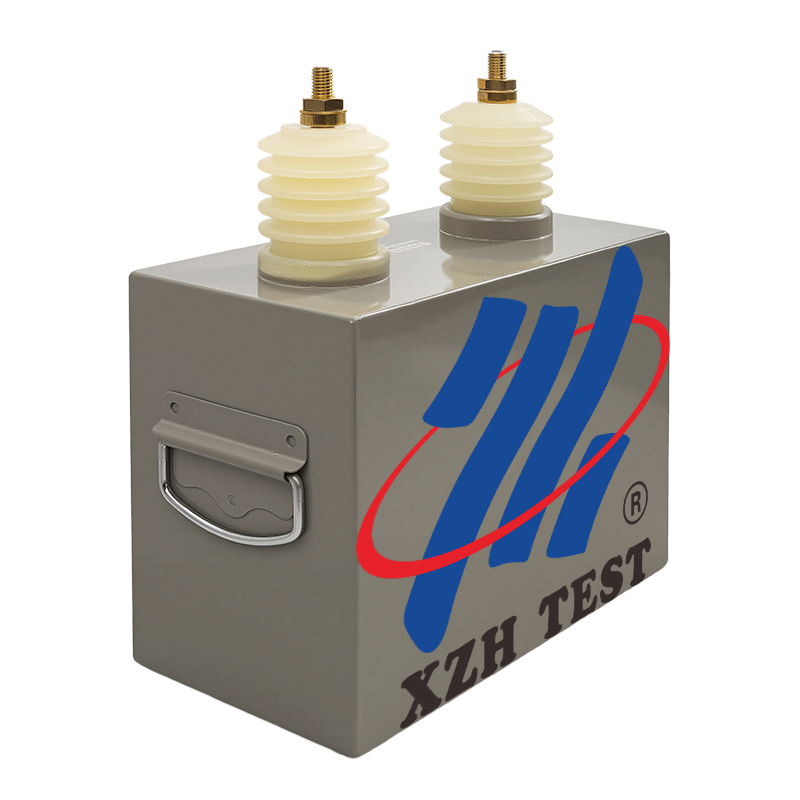

35kv 2UF Pulse Energy Storage Capacitor

XHCC-2/35

Overview

Pulse energy storage capacitors utilize imported films and adopt a non-inductive winding structure, boasting excellent self-healing and explosion-proof performance. They feature reliable construction, zero leakage, no pollution, moisture resistance, fire resistance, long service life, compact size, and light weight.

Applications

Pulse energy storage capacitors store the electrical energy charged by low-power power supplies at regular intervals, and release the stored energy rapidly in an extremely short moment when needed, generating powerful impulse current and high impulse power. They are mainly applied in fields such as high-voltage impulse discharge testing, high-energy physics, oscillation circuits, and geological prospecting.

Technical Parameters
Ambient temperature: -20 to +50℃;
Altitude: ≤2000 meters, specifications for altitudes above 2000 meters will be provided separately;
Capacitance tolerance: ±5%;
Rated capacitance 2uF
Rated voltage level 35kV

Precautions and Common Faults
1. Avoid impacting or bumping the pulse energy storage capacitor; otherwise, the internal film may be easily damaged.
2. When using the pulse energy storage capacitor, please read the instruction manual and the capacitor label to prevent overvoltage use.
3. During use, pay attention to the voltage rating of the connecting wires and the safety distance.
4. After the test is completed, the high-voltage terminal must be fully discharged.
5. If there is an abnormal sound inside the capacitor during use, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If the capacitor casing shows bulging or protrusions, it is recommended to stop using it, as there is a risk of internal material deterioration and reduced insulation.
After-Sales Service

The instrument is covered by a free one-year warranty from the date of purchase for product quality issues, and lifetime repair and technical services are provided. If you find that the instrument is not functioning normally or has a fault, please contact us in time so that we can arrange the most convenient and effective solution for you.

If you are interested in this type of equipment, please feel free to contact us. We also accept customized services.

Product Tags:


*From:	Your email address is incorrect!
*To:	Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Cable Fault Locator
Brand Name:	XZH Test
Model Number:	XHCC-2/35
Certification:	CE/ISO
Place of Origin:	China
MOQ:	1uint
Payment Terms:	T/T
Supply Ability:	2000unit/year
Delivery Time:	5-8 work days
Packaging Details:	wooden box
