Small Steam Shrink Tunnel for Cosmetic Containers

Categories steam shrink tunnel
Brand Name: Howfond
Model Number: HF-1500M
Certification: CE
Place of Origin: china
MOQ: 1 set
Price: USD2000
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500 sets per month
Packaging Details: export wooden case
material: stainless steel
length: 1500mm
Blower powder: Ø12, 0.25KW
Powder supply of blower: 220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height: Max 350mm
Running pressure: Max 0.6Mpa
Weight: 200kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

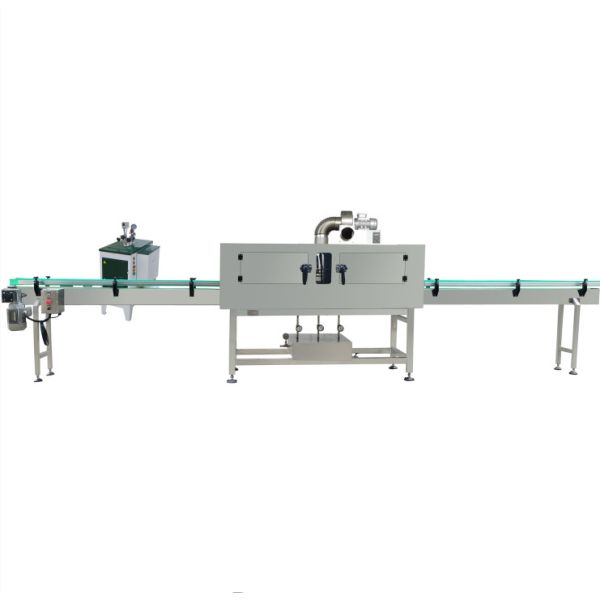

Small Steam Shrink Tunnel for Cosmetic Containers

Keywords :


small steam shrink tunnel, cosmetic steam tunnel, mini steam shrink machine, cream jar steam tunnel, small bottle steam tunnel, compact steam packaging machine


1. Small Steam Shrink Tunnel for Cosmetic Containers Brief Introduction:


This small steam shrink tunnel is perfect for cosmetic bottles, cream jars and small plastic containers. It features compact design, easy operation and stable performance. Ideal for small businesses, laboratories and cosmetic workshops with low to medium production capacity.


To get smooth shrink effect, we usually adjust the heights and positions of the 3 sections of steam spray tubes insides of steam shrink tunnel for bottled drinking water

. Bottles run on the conveyor, the shrink usually goes from down to top of bottles.



2.Advantage of steam shrink tunnel for juice bottles :


(1)Full body of tunnel is made of SS304 stainless steel.

(2)Inside of tunnel , flexible tubes are made of SS316,
(3)Round steam jet pipes save 30% steam at least.
(4)No rusting because of Electropolishing for steam jet pipes and flexible tubes.
(5)Blower motor for steam exhausting is varied and adjustable.
(6)Needle valve,precise steam consumption controlling.
(7)SICION tube to ground for water out
.


3. Parameters FOR Economic steam shrink tunnel

Item ModelsHF-1200MHF-1500MHF-2000MHF-2300M
Length of tunnel1.2meters1.5meters2.0meters2.3meters
Blower powderØ12, 0.25KWØ12, 0.25KWØ12, 0.25KWØ12, 0.25KW
Powder supply of blower220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit heightMax 350mm
Entrance /exit width130~210mm (fixed size once confirmed)
Running pressureMax 0.6MpaMax 0.6MpaMax 0.6MpaMax 0.6Mpa
Weight180kg200Kg220kg230kg
Steam consumption18kg/h21kg/h24kg/h24kg/h
Conveyor speed0~35m/minute0~35m/minute0~35m/minute0~35m/minute
Outline size (m)L1.2*W0.4*H1.5L1.5*W0.4*H1.5L2.0*W0.4*H1.5L2.3*W0.4*H1.5
