Black Oxide High Precision U Drill Multi Purpose Drilling On CNC Machine 3D

Product Description:

The U Drill , also recognized as an indexable insert drill, is a premium drilling equipment extensively applied in contemporary CNC machining. It is engineered for swift, effective, and cost-efficient drilling of both through and blind holes, commonly with a diameter exceeding 10 mm.

Distinguished from conventional solid drills, the U Drill showcases interchangeable carbide inserts affixed on a sturdy steel body. This setup enables simple upkeep, financially advantageous performance, and augmented productivity, particularly in large-scale production setups.

Features:

Indexable Insert Design: The replaceable inserts in this tool design help eliminate the need for regrinding and significantly reduce tool change time.

Internal Coolant Channels: The internal coolant channels allow for coolant to flow through the drill body directly to the cutting edge. This enhances chip evacuation and extends the tool's life span.

Various Lengths Available: This tool is available in different lengths, including 2×D, 3×D, 4×D, and 5×D effective drilling depths to suit various drilling needs.

High Rigidity: The robust body construction of this tool ensures stability, making it suitable for high-speed or heavy-duty machining operations.

Wide Material Compatibility: This tool is compatible with a wide range of materials including steel, stainless steel, cast iron, aluminum alloys, and more, making it a versatile choice for machining applications.

Technical Parameters:

Cat.No	( m m )						Insert	Insert	Screw	Wrench

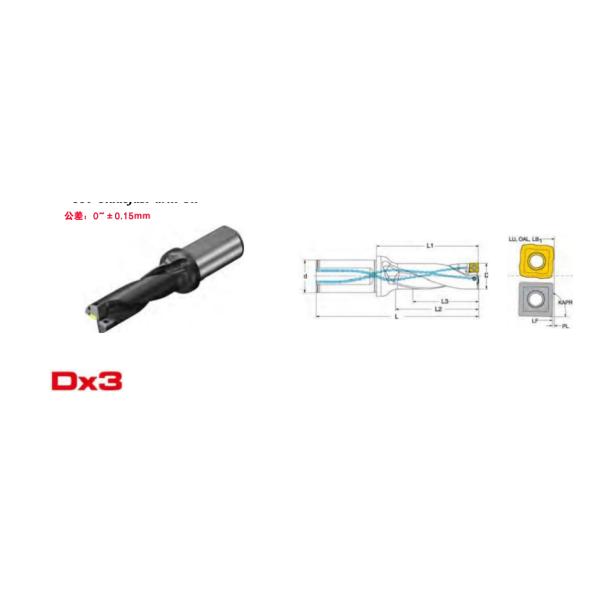

Cat.No	D	L	L1	L2	L3	d	Insert	Insert	Screw	Wrench
880-12-3D-C20	12	122	66	41	36	20	880-010203N	880-010203E	M1.8x4.2	T6
880-12.5-3D-C25 880-13-3D-C25 880-13.5-3D-C25	12.5 13 13.5	123.5 125 126.5	67.5 69 70.5	42.5 44 45.5	37.5 39 40.5	20	880-010203N	880-010203E	M1.8x4.2	T6
880-14-3D-C25 880-14.5-3D-C25 880-15-3D-C25 880-15.5-3D-C25 880-16-3D-C25	14 14.5 15 15.5 16	128 129.5 131 132.5 134	72 73.5 75 76.5 78	47 48.5 50 51.5 53	42 43.5 45 46.5 48	25	880-020204N	880-020204E	M1.8x4.2	T6
880-16.5-3D-C25 880-17-3D-C25 880-17.5-3D-C25 880-18-3D-C25 880-18.5-3D-C25 880-19-3D-C25 880-19.5-3D-C25	16.5 17 17.5 18 18.5 19 19.5	135.5 137 138.5 140 141.5 143 144.5	79.5 81 82.5 84 85.5 87 88.5	54.5 56 57.5 59 60.5 62 63.5	49.5 51 52.5 54 55.5 57 58.5	25	880-030305N	880-030305E	M2.0x5	T6
880-20-3D-C25 880-20.5-3D-C25	20 20.5	146 147.5	90 91.5	65 66.5	60 61.5	25	880-040305N	880-040305E	M2.2x5	T7
880-21-3D-C32 880-21.5-3D-C32 880-22-3D-C32 880-22.5-3D-C32 880-23-3D-C32 880-23.5-3D-C32	21 21.5 22 22.5 23 23.5	158 159.5 161 162.5 164 165.5	98 99.5 101 102.5 104 105.5	68 69.5 71 72.5 74 75.5	63 64.5 66 67.5 69 70.5	25	880-040305N	880-040305E	M2.2x5	T7
880-24-3D-C32 880-24.5-3D-C32	24 24.5	167 168.5	107 108.5	77 78.5	72 73.5	25	880-050305N	880-050305E	M2.5x6	T8
880-25-3D-C32 880-25.5-3D-C32 880-26-3D-C32 880-26.5-3D-C32 880-27-3D-C32 880-27.5-3D-C32 880-28-3D-C32 880-28.5-3D-C32 880-29-3D-C32 880-29.5-3D-C32	25 25.5 26 26.5 27 27.5 28 28.5 29 29.5	170 171.5 173 174.5 176 177.5 179 180.5 182 183.5	110 111.5 113 114.5 116 117.5 119 120.5 121 122.5	80 81.5 83 84.5 86 87.5 89 90.5 92 93.5	75 76.5 78 79.5 81 82.5 84 85.5 87 88.5	32	880-050305N	880-050305E	M2.5x6	T8

Cat.No	( m m )						Insert	Insert	Screw	Wrench
Cat.No	D	L	L1	L2	L3	d	Insert	Insert	Screw	Wrench
880-30-3D-C32 880-30.5-3D-C32 880-31-3D-C32 880-31.5-3D-C32 880-32-3D-C32 880-33-3D-C32 880-34-3D-C32 880-35-3D-C32	30 30.5 31 31.5 32 33 34 35	185 186.5 188 189.5	125 126.5 128 129.5	95 96.5 98 99.5	90 91.5 93 94.5 96 99 102 105	32	880-060406N	880-060406E	M3.5x8	T15
	30 30.5 31 31.5 32 33 34 35	191 194 197 200	131 134 137 140	101 104 107 110	90 91.5 93 94.5 96 99 102 105	32	880-060406N	880-060406E	M3.5x8	T15
880-36-3D-C32 880-37-3D-C32 880-38-3D-C32 880-39-3D-C32 880-40-3D-C32 880-41-3D-C32 880-42-3D-C32	36 37 38 39 40 41 42	203 206 209 212 215 218 221	143 146 149 152 155 158 161	113 116 119 122 125 128 131	108 111 114 117 120 123 126	32	880-070406N	880-070406E	M5.0x11	T20
880-43-3D-C40 880-44-3D-C40 880-45-3D-C40 880-46-3D-C40 880-47-3D-C40 880-48-3D-C40 880-49-3D-C40 880-50-3D-C40 880-51-3D-C40 880-52-3D-C40	43 44 45 46 47 48 49 50 51 52	239 242 245 248 251 254 257 260 263 266	169 172 175 178 181 184 187 190 193 196	134 137 140 143 146 149 152 155 158 161	129 132 135 138 141 144 147 150 153 156	40	880-080508N	880-080508E	M6.0x14.2	T25
880-53-3D-C40 880-54-3D-C40 880-55-3D-C40 880-56-3D-C40 880-57-3D-C40 880-58-3D-C40 880-59-3D-C40 880-60-3D-C40 880-61-3D-C40 880-62-3D-C40 880-63-3D-C40	53 54 55 56 57 58 59 60 61 62 63	269 272 275 278 281 284 287 290 293 296 299	199 202 205 208 211 214 217 220 223 226 229	164 167 170 173 176 179 182 185 188 191 194	159 162 165 168 171 174 177 180 183 186 189	40	880-09060BN	880-090608E	M6.0x14.2	T30

Applications:

High-speed drilling in CNC lathes and machining centers

Pre-machining for boring, reaming, or tapping

Rough boring of large-diameter holes

Mass production and automated environments
