Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

KWD120 Split-type Ultrasonic Sludge Level Meter
Introduction

The KWD120 Ultrasonic Depth Sounder is a reliable, cost-effective level measurement instrument designed for sludge and liquid applications. This contact-type device measures underwater distance through liquid propagation, offering easy installation and maintenance.

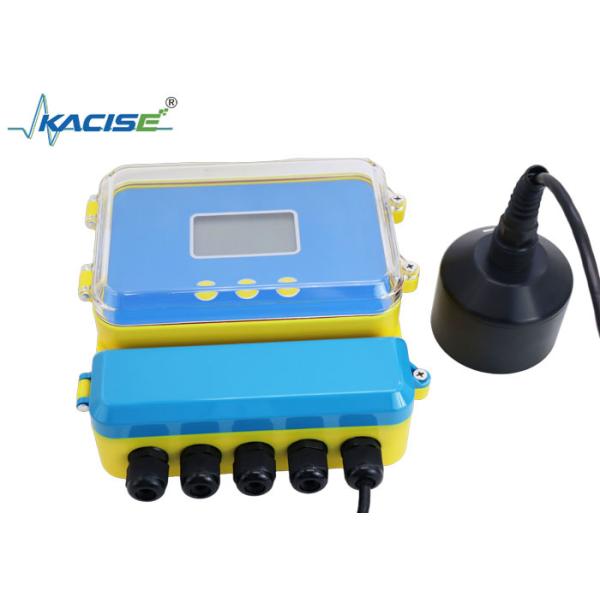

KWD120 Ultrasonic Sludge Level Meter product overview
Technical Parameters
FunctionSplit type
RangeStandard measuring ranges: 5m, 10m, 15m, 20m. Customizable up to 70m or special ranges
Measurement Accuracy1%-3%
Resolution5mm or 0.5% (whichever is larger)
DisplayChinese LCD display
Analog Output4-20mA/510Ω load
Relay Output2-way AC 250V/5A or DC 30V/5A, programmable status
Power SupplyStandard 220V AC ±15% 50Hz, Optional 24VDC 120mA, Custom 12VDC or battery power
Ambient TemperatureDisplay: -20°C to +60°C, Probe: -20°C to +80°C
CommunicationOptional 485, 232 communication (manufacturer protocol)
Protection LevelDisplay: IP65, Probe: IP68
Probe CableStandard 10m, customizable up to 100m (without electromagnetic interference)
Power Consumption (24V)
  • mA output only: 1.5W (standard)
  • 485 output only: 0.9W (optional)
  • Both 485 and mA: 1.6W (optional)
  • Add two relays: +0.8W (optional)
Power Consumption (220V)220VAC split instrument: 5W
Dimensions
KWD120 Ultrasonic Sludge Level Meter dimensions diagram
Probe Dimensions

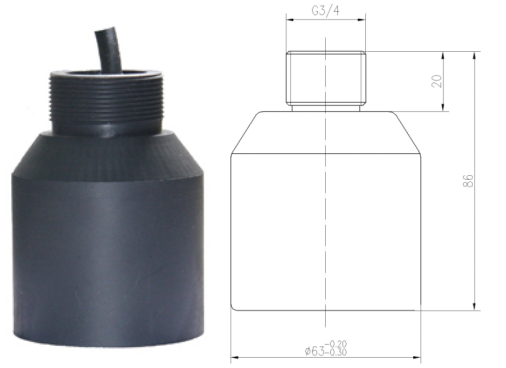

50Khz and 200Khz dual frequency probe dimensions
50Khz and 200Khz dual frequency

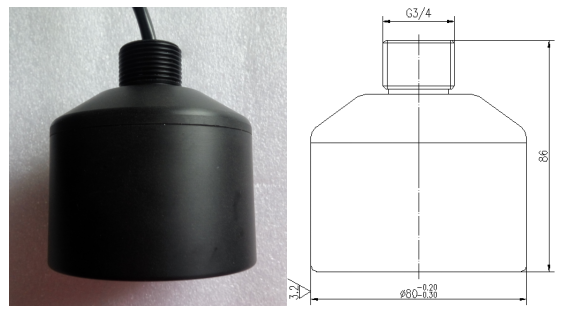

300Khz probe dimensions
300Khz

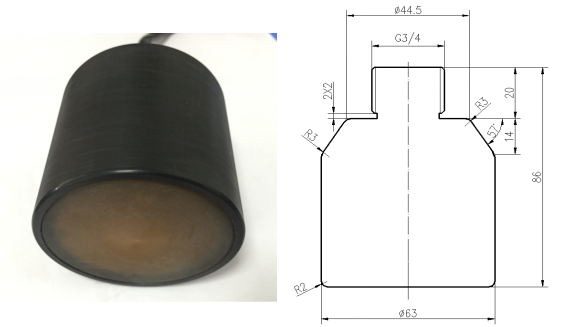

400Khz probe dimensions
400Khz

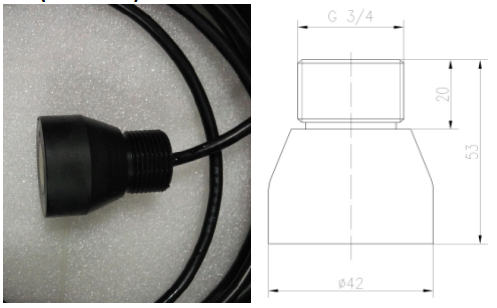

500Khz probe dimensions
500Khz

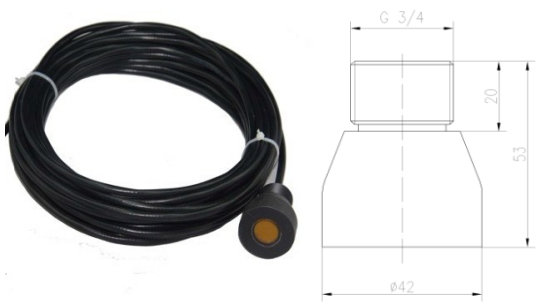

650Khz probe dimensions
650Khz
