Servo Driven Pillow Packaging Machine 50-100 Bags/Min

Servo Driven Pillow Packaging Machine 50-100 Bags/Min

Servo Driven Pillow Packaging Machine 50-100 Bags/Min
Servo Driven Pillow Packaging Machine 50-100 Bags/Min
Categories Horizontal Packing Machine
Brand Name: PL
Model Number: PL250/350/450/650/850
Certification: CE
Place of Origin: China
MOQ: 1
Price: USD4500-6500/unit
Payment Terms: T/T,Western Union
Supply Ability: 500 units in a month
Delivery Time: 15-30 work days
Packaging Details: wooden case
Product Name: Pillow Packaging Machine
Material: Carbon Steel + Stainless Steel
Usage: Usage
Function: Forming, Filling, Sealing, Cutting
Bag Size: L:60-280mm, W:20-100mm
Speed: 50-100 bags/min
Advantage: 3 Servo Motors, Stable Performance
Customizable: Custom Design Available
Contact Now
Company Info.
Guangzhou Penglai packing Machinery Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Servo Driven Pillow Packaging Machine 50-100 Bags/Min

High-Speed Servo Driven Pillow Packaging Machine
Automatic Biscuit & Daily Product Bagging Equipment
Product Overview
The PL series pillow packaging machine is a high-efficiency automatic packaging solution designed for food, daily necessities, stationery, and hardware industries. Equipped with a 3-servo drive system, it ensures stable performance and a packaging speed of up to 100 bags per minute. The machine supports adjustable bag sizes and is compatible with composite film materials. It integrates forming, filling, sealing, and cutting in one process. With a user-friendly touchscreen interface, it's ideal for small to medium-sized enterprises aiming to upgrade to automated packaging systems.
PL series pillow packaging machine overview PL series machine close-up view
Technical Specifications
Packaging MaterialPlastic, Paper, OPP/CPP/PE
Packaging TypeCANS, Stand-up Pouch, Bags, Film, Pouch, case, Sachet/Pillow bag/Back bag
ApplicationFood, Beverage, Commodity, Chemical, Machinery & Hardware
Driven TypePneumatic
Filling MaterialPowder, Granule, Solid
Warranty1 Year
Voltage220V50/60Hz
FunctionFILLING, Wrapping, Labeling, Sealing
Automatic GradeAutomatic
Core Componentsmotor, Pressure vessel, PLC, Gear, Bearing, Engine, Gearbox
Weight200 KG
Dimensions (L×W×H)4020 × 745 × 1450 mm
Speed30-45 bags/min
Machine MaterialSS201/SS304/SS316
Packaging and Delivery
Selling UnitsSingle item
Package Size350 × 120 × 150 cm
Gross Weight200.000 kg

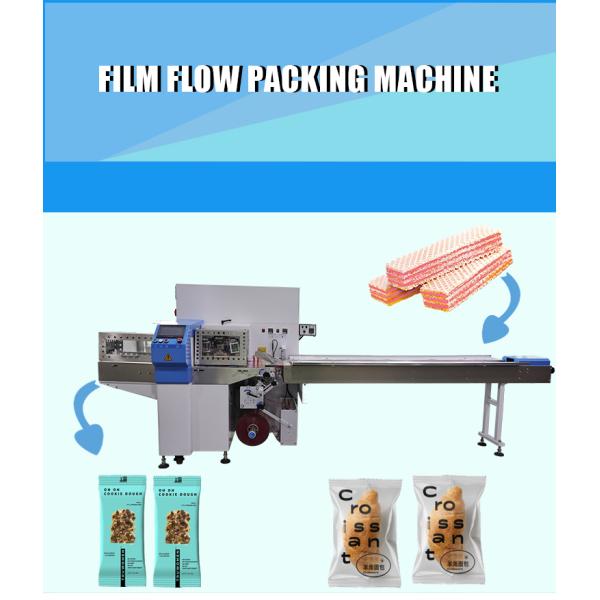

Packaging machine delivery packaging
Main Features
  • Servo motor control with accurate bag length setting
  • 7-inch touch screen with multiple language options for easy operation
  • PID Temperature control for low-temperature sealing, increasing packing speed and reducing film burning
  • Compatible with various packing films including aluminium film, paper film, PE film, and composite film
  • High sensitivity photoelectric eye color tracking for precise cutting
  • 10 product packing data memories for easy setting and recording
  • No product, no pack feature
Working Process
Horizontal flow packing is a fully automatic process that includes: product feeding → film forming → product wrapping → bag sealing → bag packing

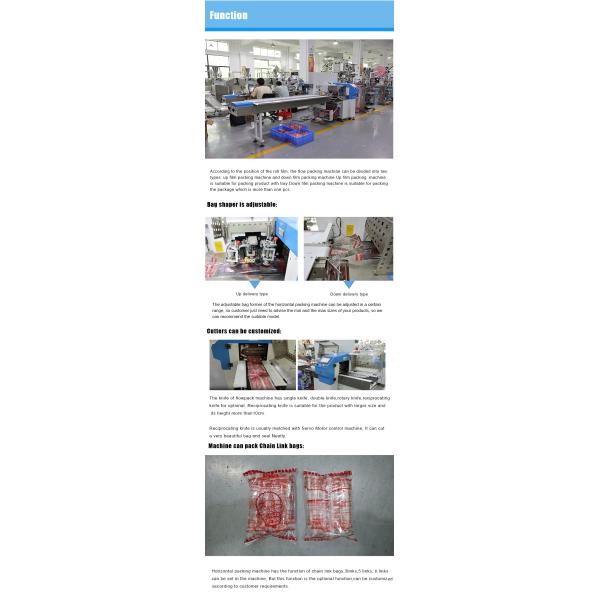

Packaging machine working process Packaging machine operation Packaging machine detail view Packaging machine in operation
Key Benefits
Easy to Operate High-accuracy Long Service Life Competitive Price High Productivity Multifunctional
