Coaxial Flush Mount Ceiling Speaker 8 Ohm Impedance Waterproof

Categories	Ceiling Speaker
Place of Origin:	Guangdong, China
Model Number:	CL-305CS
MOQ:	100
warranty:	3years
dimension:	245*150
power source:	Other
output power:	30/15/7.5/3.8W/8ohm
Shell Material:	ABS
the body material:	plastic
Radio function:	NO
Special Feature:	Waterproof
Operating Voltage:	8ohm
Installation:	Flush Mount
Impedance:	8ohm
Frequency response:	80-20KHz
Magnet Material:	Ferrite, Neodymium

Contact Now

Add to Cart

Company Info.

VOXPA Electronics Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Coaxial Flush Mount Ceiling Speaker 8 Ohm Impedance Waterproof

High Quality 5 Inch Coaxial Flush Mount Ceiling Speaker ABS White with Neodymium Magnet 8ohm Impedance

CL-305CS 5 Inch Coaxial Flush Mount Ceiling Speaker ABS White with Neodymium Magnet 8ohm Impedance

Product Overview

The CL-305CS is a high-performance 5-inch coaxial ceiling speaker designed for commercial applications including hotels, coffee shops, and bars. Combining advanced design with reliable performance and easy installation, it delivers exceptional audio quality for business environments.

Key Features

Structural and Design Features

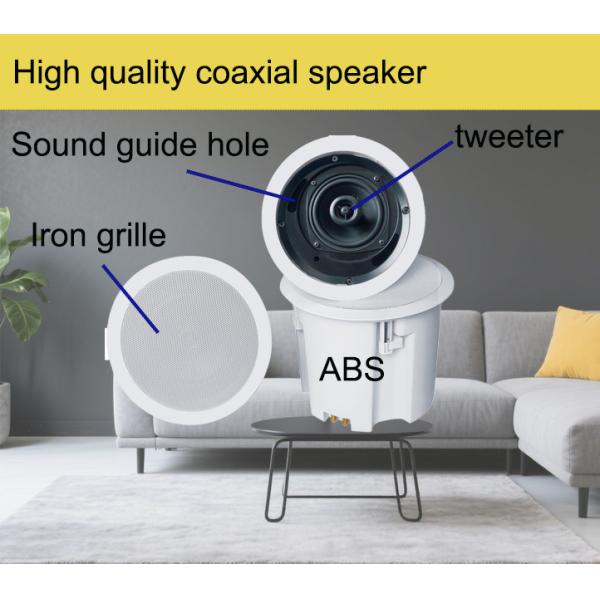

5-inch coaxial speaker unit with metal grille, ABS baffle, and white ABS back cover for durability and aesthetic appeal
Phase-reflect design enhances stereo sound quality and creates immersive audio experiences

Performance Specifications

Power options: 30/15/7.5/3.8W with 8-ohm impedance, compatible with 100V/70V systems
89dB sensitivity for efficient sound conversion and clear audio output
Frequency range: 80-20KHz for full-spectrum sound reproduction from deep bass to crisp highs

Installation and Dimensions

Flush-mount design for easy ceiling installation and space-saving integration

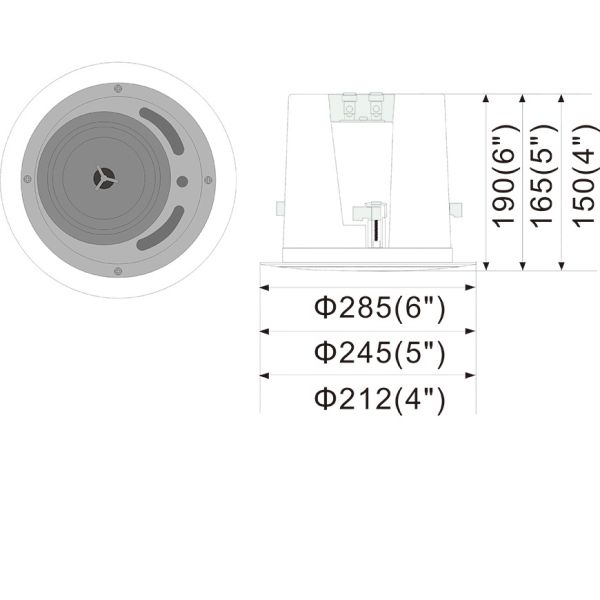

Product dimensions: 245×150mm (Mounting hole: 210mm)
Weight: 2kg - lightweight yet durable for commercial applications

Model Comparison

Model	Speaker Size	Power	Voltage	Sensitivity	Frequency Response	Dimension (mm)	Material	Mounting Hole
CL-304C	4" Coaxial	20W	8ohm	88DB	90-20KHz	220×165	ABS	180
CL-305C	5" Coaxial	30W	8ohm	89DB	80-20KHz	245×150	ABS	210
CL-306C	8" Coaxial	40W	8ohm	90DB	70-20KHz	285×190	ABS	250
CL-304CS	4" Coaxial	20/10/5/2.5W/8ohm	100V/70V	88DB	90-20KHz	220×165	ABS	180
CL-305CS	5" Coaxial	30/15/7.5/3.8W/8ohm	100V/70V	89DB	80-20KHz	245×150	ABS	210
CL-306CS	8" Coaxial	30/15/7.5/3.8W/8ohm	100V/70V	90DB	70-20KHz	285×190	ABS	250

Product Tags:

Coaxial Flush Mount Ceiling Speaker

Flush Mount Ceiling Speaker 8 Ohm

Waterproof 8 Ohm Ceiling Speaker

Coaxial Flush Mount Ceiling Speaker 8 Ohm Impedance Waterproof
