Fire Fighting Grooved Swing Check Valve

Categories Check valve
application: General
warranty: 1 year
Place of Origin: Henan, China
power: Manual
structure: Check
customized support: OEM
Product name: Fire Fighting Grooved Swing Check Valve
Keyword: check valve
Calibration range: DN50~DN200
Pressure level: 1.0~2.5MPa
Temperature range: -10℃~+100℃
Transmission mode: Automatic
Applicable media: Water, oil, gas, etc
Main material: Ductile iron
Type: Check valve
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Fire Fighting Grooved Swing Check Valve

Fire Fighting Grooved Swing Check Valve


The use of groove check valves

The main function is to prevent medium backflow, prevent pump and drive motor from reversing, and prevent the discharge of container medium. It can also be used on pipelines that provide supply to auxiliary systems whose pressure may rise above the system pressure.


The characteristics of groove check valves

The valve disc is in a circular shape and rotates around the axis of the valve seat channel. Due to the streamlined channel inside the valve, the flow resistance is smaller than that of the butterfly check valve. It is suitable for large diameter applications with low flow rates and infrequent flow changes, but not suitable for pulsating flow. Its sealing performance is not as good as that of the lifting type.


Main technical parameters

Nominal pressurePN10/PN16/PN25

Grooved connection standard

AWWA C508/C606

Test standardGB/T13927-2008, API598
Applicable mediaWater, oil, gas, etc.

Maximum pressure conditions

SizeMax pressure (bar)Min/Max Temp (℃)Test Pressure (bar)
ShellSeat
DN50-DN20010.0/16.0/25.0-10℃ +100℃15.0/24.0/37.511.0/17.6/27.5

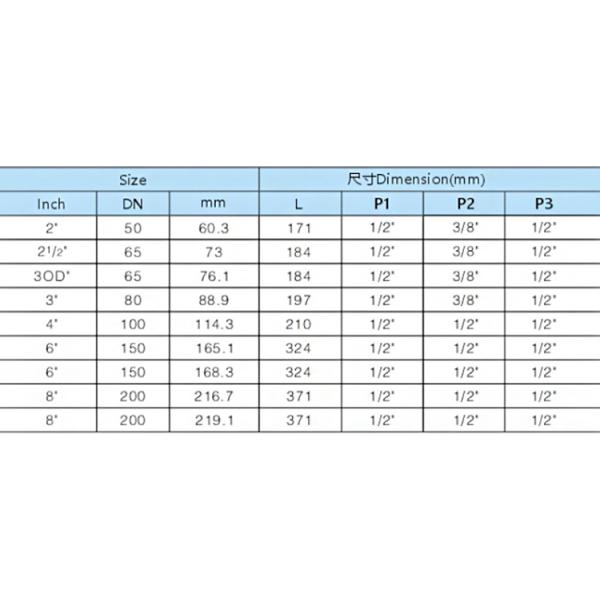

Dimensions


FAQ:

Q. Can I have my own Logo on the product?

A: Yes, OEM service is available.


Q.What information should I let you know if I want to get a quotation?

A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.


Q: What is your terms of delivery?

A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.


Q: What's the package and how do you ship the goods?

A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
