Four Column Medium Block Cutting Machine for Cutting Thick Granite
Marble Slabs Curbstone
Basic Information
Model No.: MGKQ-1200/1400
Type: CNC Cutting Machine
Usage: Granite, Marble
Application: Machinery & Hardware, Construction, Mineral Industry, Stone
Industry
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Control: CNC
Certification: CCC, ISO, CE
Blade Diameter Range: 700-1200 mm
Trolley Size: 3000*2000 mm
Worktable Rotating Angle: 0-90°
Main Motor: 22 Kw
Specification: 6150*4800*4000 mm
Trademark: Xianda
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Production Capacity: 1000 Sets/Year
Product Description

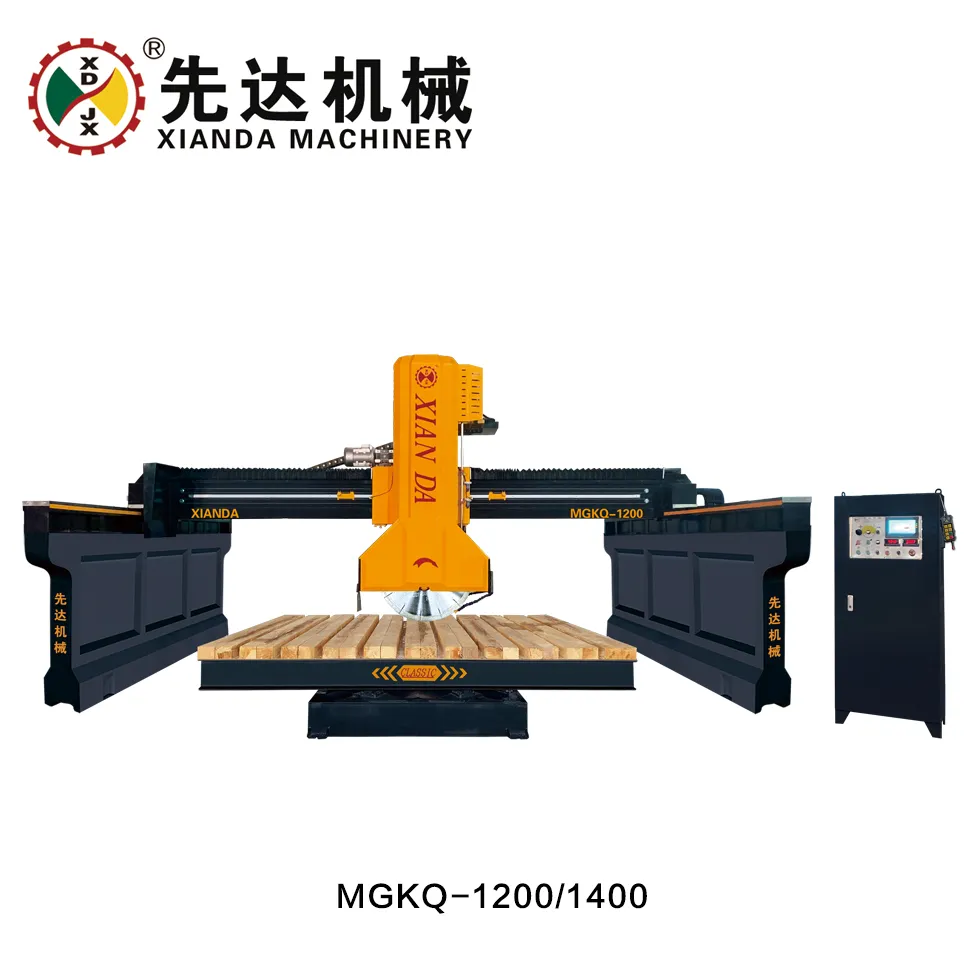

MGKQ-1200/1400 Four Column Medium Block Cutter Machine - designed for cutting thick slabs and curbstone.
This machine features 4 guide rods, double hydraulic cylinders, and
a heavy-duty structure with quick lifting capability. It delivers
strong power and stable cutting performance, making it the optimal
choice for processing thick slabs and curbstone.
Technical Parameters
| Parameter | Unit | MGKQ-1200 | MGKQ-1400 |
|---|
| Blade diameter range | mm | Φ700-Φ1200 | Φ1000-Φ1400 |
| Trolley size | mm | 3200*2000 | 3200*2000 |
| Worktable rotating angle | ° | 0-90° | 0-90° |
| Main motor | kw | 22-6/30-6 optional | 22-8 |
| Gross motor | kw | 29/37 optional | 30 |
| Outline dimension | mm | 6150*4800*4000 |
| Including foundation height | mm | 6150*4800*4300 |
| Gross weight | kg | 7300 | 7600 |
| Water consumption | m³/h | 4 | 4 |

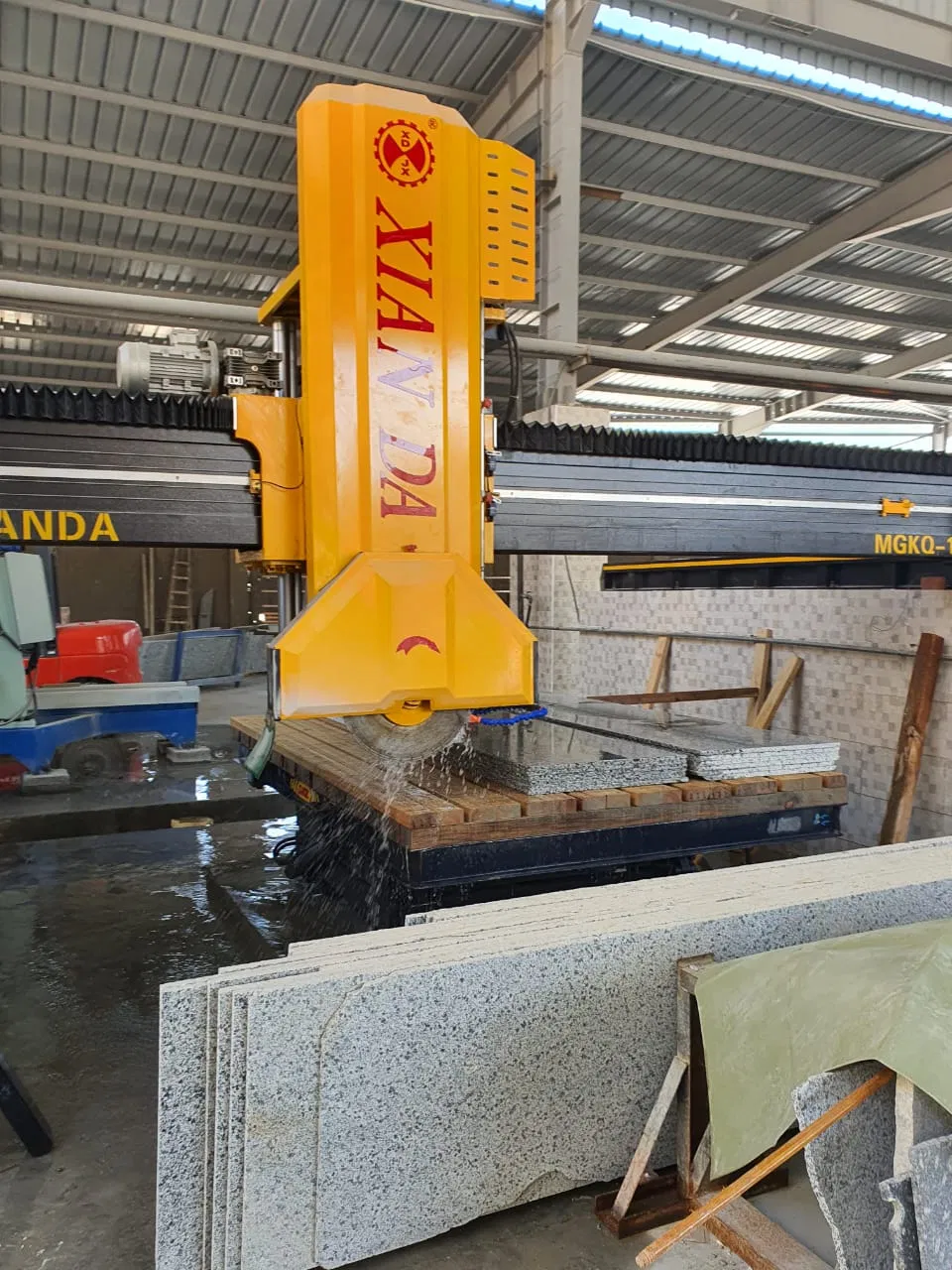

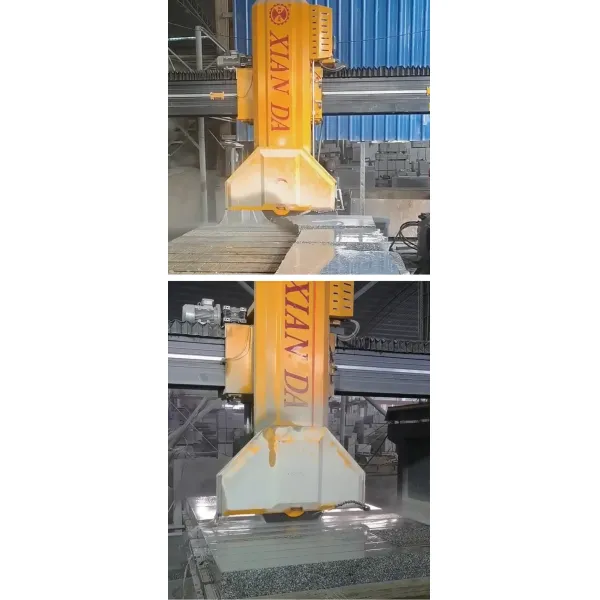

Product Images

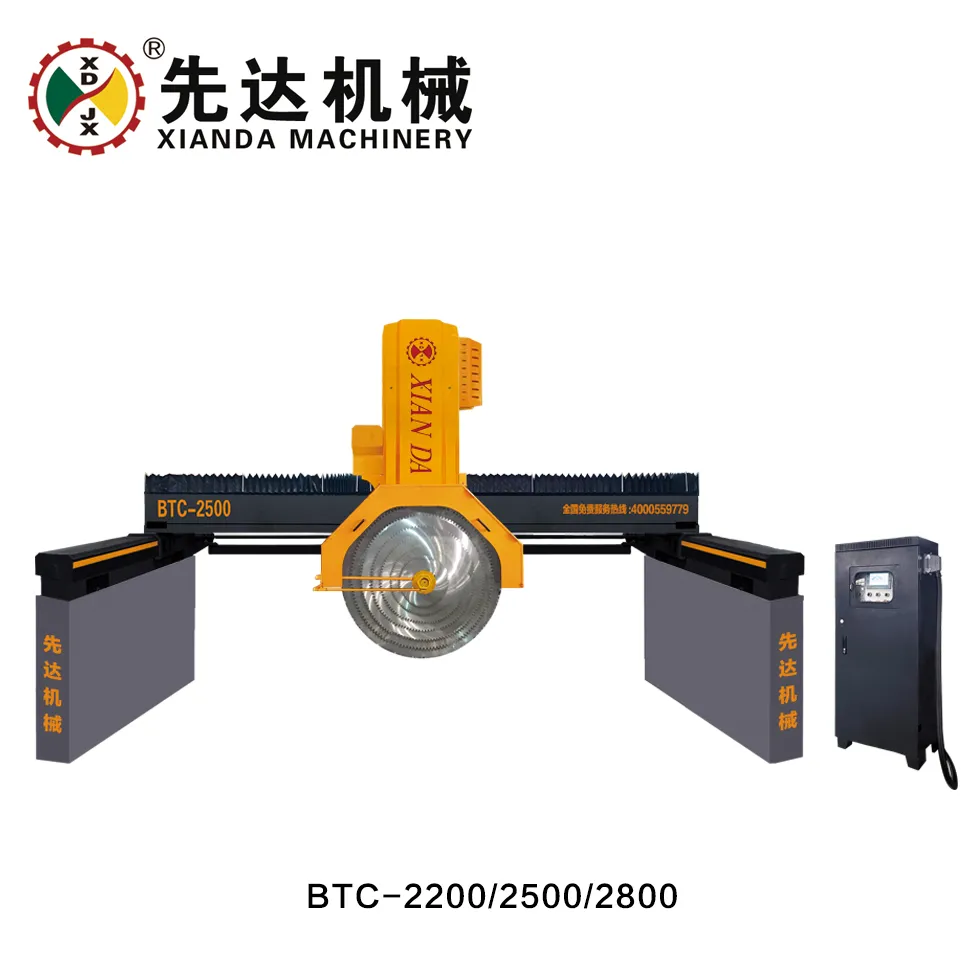

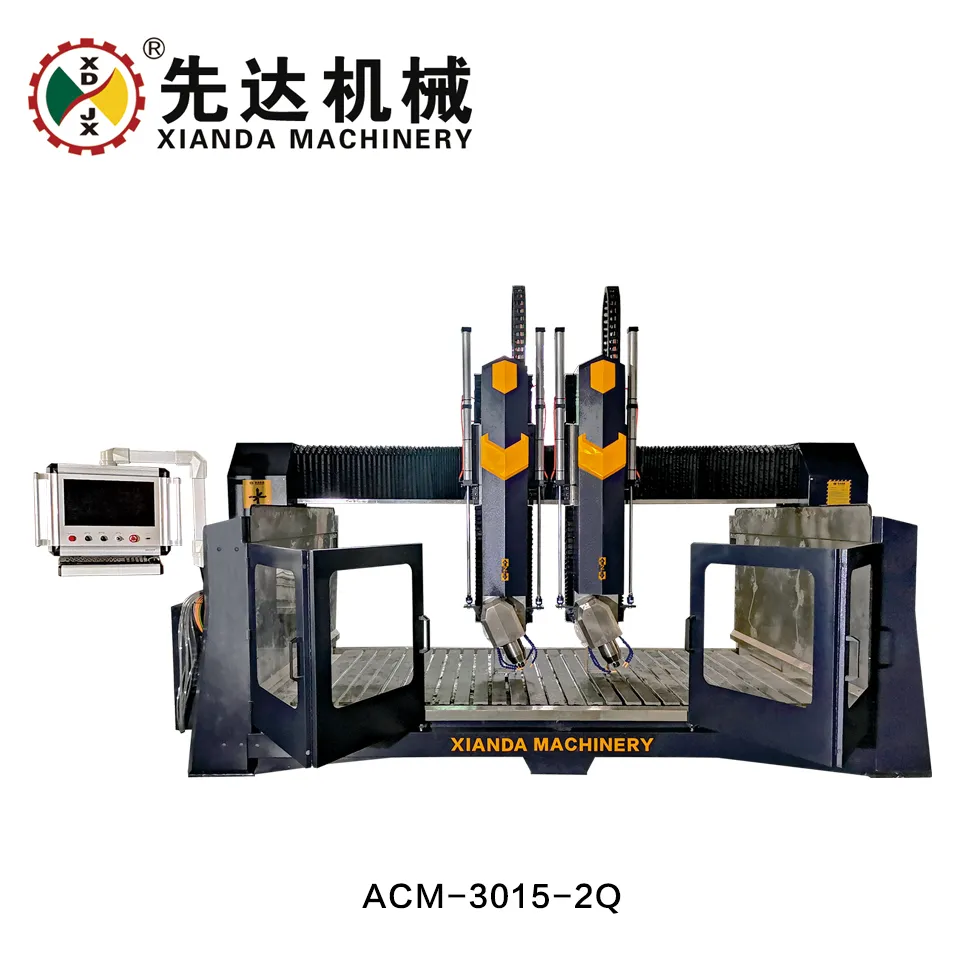

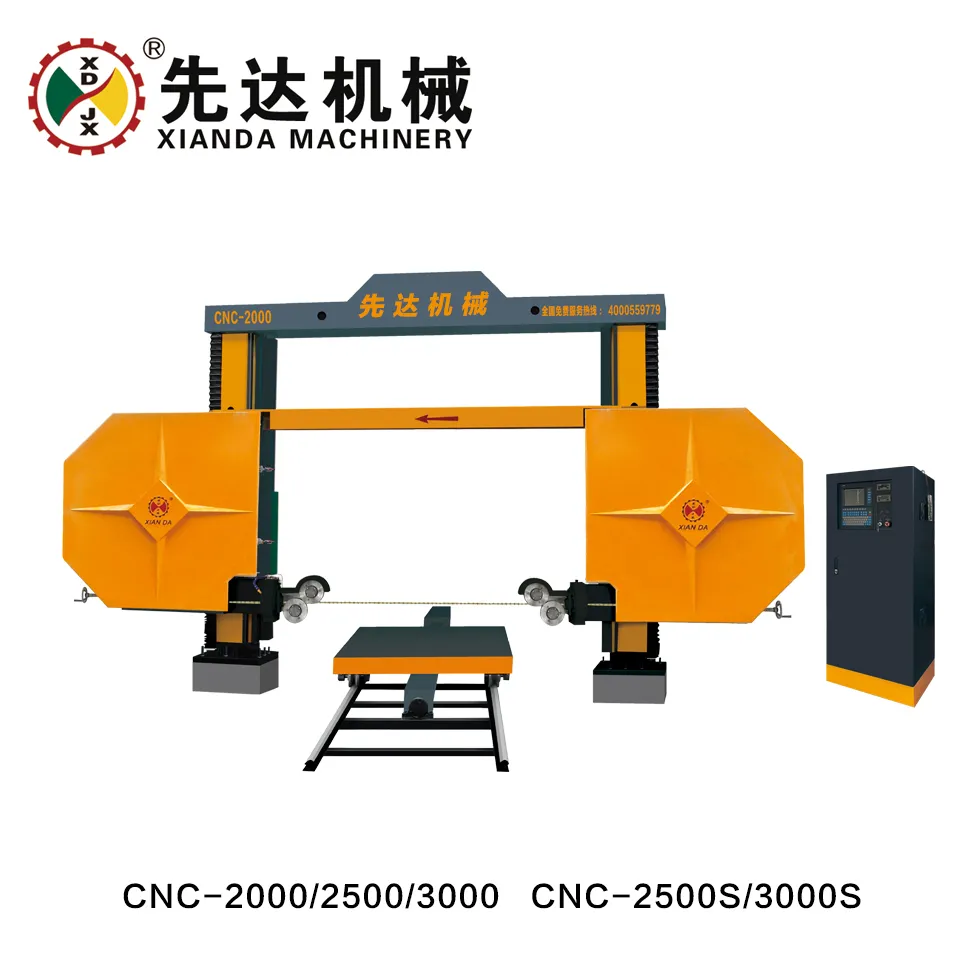

Similar Products

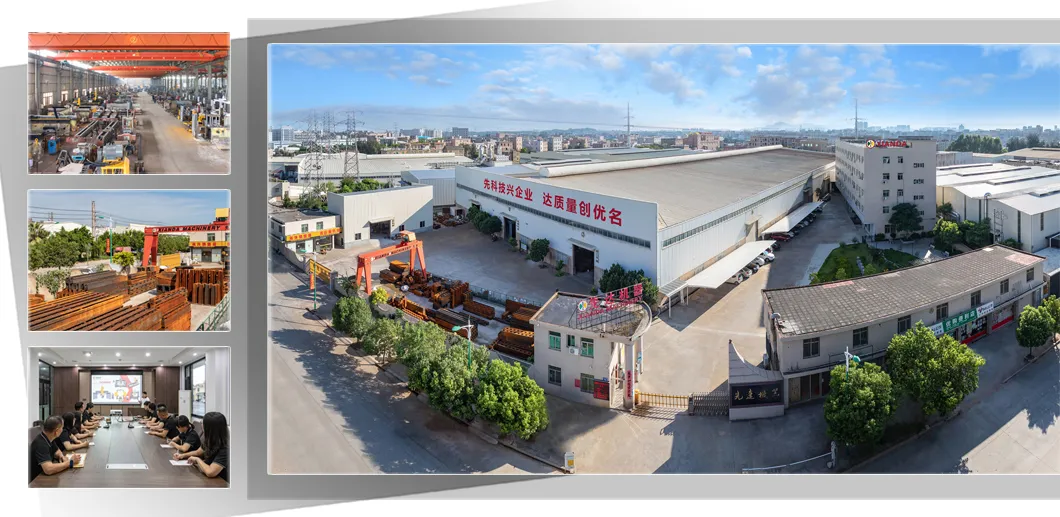

Company Profile
Fujian Xianda Machinery Co., Ltd is a leading manufacturer of stone cutting machines and tools in
China, established in 1985 with a 20,000m² facility located in
Jinjiang Wuli Industrial Area. The company is strategically
positioned near the historic Wuli Bridge and the world's largest
stone market in Shuitou.
With over 34 years of experience, Xianda specializes in developing
and producing diamond wire saw machines, column processing
machines, bridge cutting machines, carving machines, and profiling
linear machines. The company holds approximately 80% of China's
market share for column processing machines and serves customers in
more than 30 countries worldwide.
Since its founding, Xianda has maintained "Top Technology and
Superior Quality" as its standard, earning CE and ISO
certifications along with numerous quality awards. The company has
been recognized as a "China Recommend Building Manufacture
Enterprise" and holds a "3A Enterprise Credit Evaluation" rating.
Certifications
Our Advantages
- Comprehensive training for machine installation and operation
- Engineers available for overseas machinery service
- 24-hour online after-sales support
- Immediate response from our sales and customer service departments
Keywords: stone cutting machine, wire saw machine, stone profiling
Manufacturer Profiles & Quality Control
| Manufacturer Profiles | Quality Control |
|---|
- Top 10 stone cutting machine manufacturer with ISO & CE
certification since 1985
- 70% China market share in special shape stone cutting machines
- Specialized in producing stone machines for export markets
| - Experienced quality control team
- Strict inspection process for all machines
- Testing video available for each machine before shipment upon
request
|
| Delivery Time | Warranty |
|---|
| Typically three weeks against payment (varies by order quantity) | One-year warranty on all machines |
After Sales Service
- 24-hour response time from our marketing team
- Technical support available at any time
- Free replacement for failures confirmed to be caused by product
quality
Frequently Asked Questions
Q: How to place order to your company?
A: 1. Inquiry - Professional quotation
2. Confirm price, lead time, logo, payment terms
3. Xianda sales sends Proforma Invoice with seal
4. Customer makes deposit payment
5. Sales confirms payment receipt and arranges production
Q: How is After-sales Service Provided?
A: Engineers can be dispatched for machinery assembly
Q: Are you Manufacture Factory?
A: Yes, we have been a stone machinery factory for over 30 years
Q: What about the warranty time of the machine?
A: We provide one year parts warranty service
