Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans

Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans

Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans
Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans
Categories Automatic Labeling Machine
Place of Origin: Shanghai, China
Brand Name: Leadworld
Voltage: 220V/380V, AC200V50/60Hz
Weight: 1500 KG
Material: Stainless Steel
Power supply: Three-phase 380V 50 Hz 16KW
Equipment length: 3000mm
Equipment width: 2500mm
Conveyor speed: 30m/min
Label feed speed: 100 meters/min
Labeling speed: 9000 BPH (500ml)
Labeling accuracy: ± 1mm
Maximum label width: 150mm
Maximum label length: 500mm
Maximum label diameter: 600mm
Paper core diameter: 152 mm
Gluing temperature: 120~160℃
Contact Now
Company Info.
SHANGHAI LWT INTELLIAENT TECHNOLOGY CO.,LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans

LWT Hot Melt Labeling Machine for Metal Cans Oil-Resistant Adhesive Technology for Lubricant & Glue Containers
Product Specifications
AttributeValue
Packaging TypeBags, Bottles, CANS, Cartons, Barrel, Stand-up Pouch, Film, Foil, Belt, Pouch, case
Packaging MaterialPlastic, Paper, Metal, Glass, Wood
Automatic GradeAutomatic
Driven TypeElectric
Voltage220V/380V, AC200V50/60Hz
Dimension (L×W×H)Customizable to your requirements
Warranty1 Year
Key Selling PointsMulti Color, Easy to Operate, Remote Monitoring, Low Noise Level, High-accuracy, Energy saving, Long Service Life, Remote Control, High Safety Level, Flexible Manufacturing, Competitive Price, High Rigidity, Eco-Friendly, Multifunctional, High Productivity
Core ComponentsPLC, Pressure vessel, Gear, motor, Engine, Bearing, Gearbox, Pump, Other
After-Sales ServiceVideo technical support, Onsite Training, Field installation, commissioning and training, Online support, Free spare parts
Special FeatureTouch Screen
Bottle TypeSquare, ROUND, Rectangular, Oval
Weight (KG)1500
Printer TechnologyInkjet, Thermal Transfer, Laser, Direct Thermal
MaterialStainless Steel
Product Description
LWT Hot Melt Labeling Machine in operation

Containers are first grasped by the infeed star wheel and moved onto the container table. Rotation begins as they are securely centered between container plates and centering bells.

The feed roller adjusts its speed according to the required label length, maintaining consistent web tension. An integrated threading unit ensures smooth and stable film feeding. Inside the cutting unit, labels are precisely severed at the exact position through PLC-controlled servo motion.

Two narrow strips of hot melt adhesive are applied by a heated glue roller to both the leading and trailing edges of each label. The label—already coated with adhesive on its leading edge—is then transferred onto the container. This initial glue strip enables accurate label placement and strong initial adhesion. As the container rotates during application, the label is wound tightly around its surface. A final application of adhesive at the trailing edge secures a complete and reliable bond.

ComponentSpecification
Transportation Structure750W motor, frequency converter speed regulation; Industrial nylon chain plate conveyor belt
Mainframe Transportation StructureMotor 2.2Kw
Bottle Separation StructureFeed screw
Bottle Feeding StructureFeed screw and star wheel position feeding structure for accuracy and stability
Position StructureMechanical pre-location using cam wheel institution for bottle positioning
Labeling StructureRotary type bottle tray carries the bottles during labeling rotation
Label Feeding StructureHigh speed servo OPP label supply system (drive by servo-motor)
Label Pressing StructureArc shape brush unit
Bottle Guiding StructureAdjustable by double coordinate section guide rail
Glue Supply SystemHot melt glue supply system ensures accuracy and uniformity of gluing

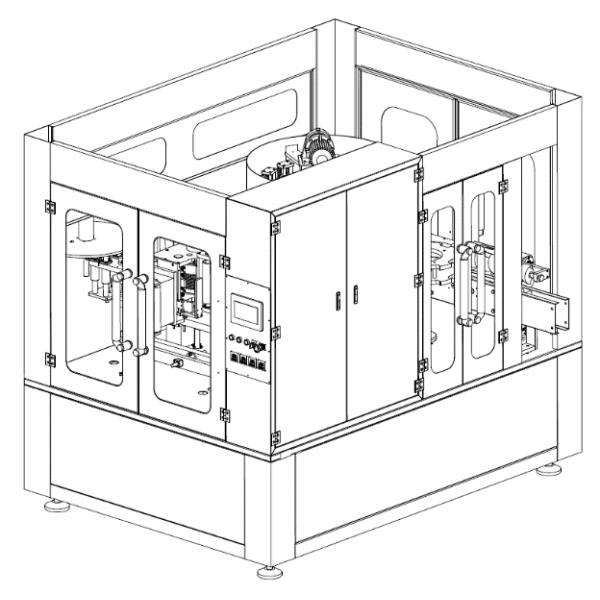

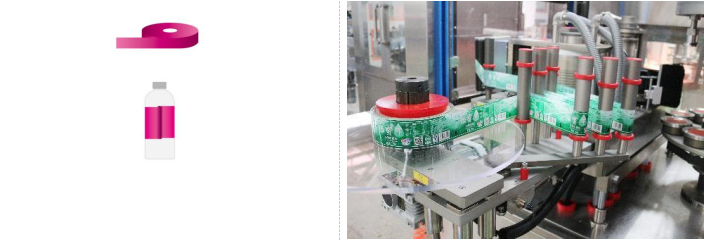

Labeling machine components diagram Labeling machine operation view Labeling machine close-up Labeling machine full view
Technical Parameters
ParameterSpecification
Power SupplyThree-phase 380V 50 Hz 16KW
Equipment Length3000mm (conveyor length adjustable based on production lines)
Equipment Width2500mm
Conveyor Speed30m/min (adjustable according to production needs)
Speed Adjustment MethodUninterrupted rate adjustment
Maximum Label Feed Speed100 meters labels/min
Maximum Labeling Speed9000 BPH (500ml)
Labeling Accuracy± 1mm
Integrated Labeling Accuracy± 1mm
Maximum Label Width150mm
Maximum Label Length500mm
Maximum Label Diameter600mm
Paper Core Diameter152 mm
Labeling GlueLeading and trailing edge gluing with hot melt
Gluing Temperature120~160℃
Label TypesOPP label, paper-plastic composite film label, paper label
Labeling Workstations9 per cycle
Machine WeightApproximately 3000 Kg

Related Labeling Machines
Round Bottle Labeling Machine
The circular bottle labeling device utilizes self-adhesive roll label paper and applies labels through a rolling process. This self-adhesive labeling system offers cleanliness, no need for molds, attractive aesthetics, strong adhesion, prevention of label peeling, and enhanced production efficiency. In other words, this machine adheres labels using self-adhesive paper, ensuring hygienic, mold-free, visually pleasing, securely attached labels that boost productivity.

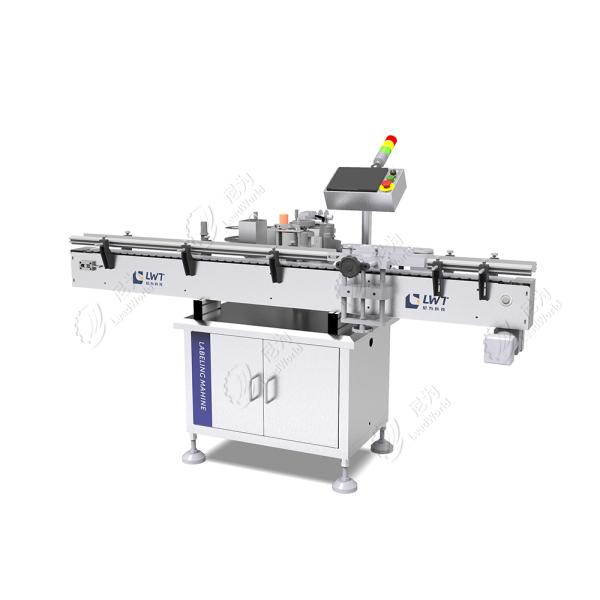

Round bottle labeling machine
Double Sided Labeling Machine
The dual-sided labeling equipment provides automated application of self-adhesive labels and films on various surfaces of products, including side planes, large curved surfaces, and square perimeters. This versatile machine finds extensive applications across industries such as food, toys, daily essentials, electronics, hardware, plastics, printing, and more. In essence, this machine automates the attachment of labels and films on multiple product surfaces, catering to diverse industry needs effectively and efficiently.

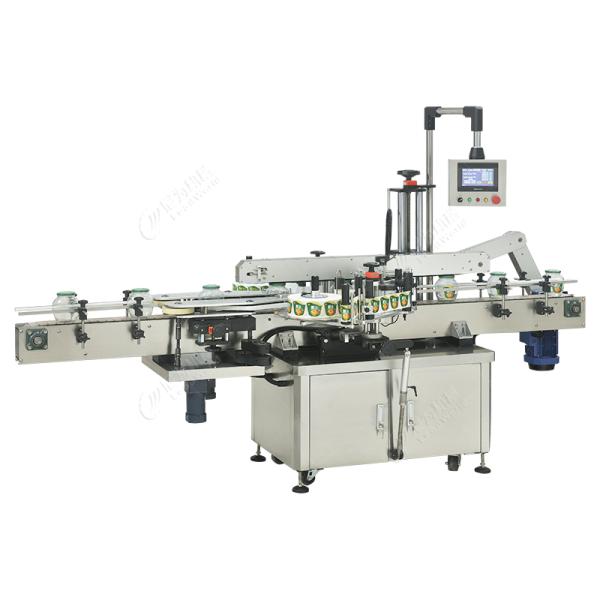

Double sided labeling machine
Plane Labeling Machine
The flat labeling machine can complete automatic front and back labeling on both sides. It is suitable for automatic labeling on both sides of various flat and square products and on the circumference of round bottles in food, daily chemicals, beverages, and other light industry industries.
Plane labeling machine
Horizontal Wet Glue Labeling Machine
The horizontal wet glue labeling machine is suitable for canned food. The cans automatically enter the equipment, and the belt presses the cans to move and rotate. When the jar passes through the glue sticking station, the glue will automatically stick to the jar. The label is then automatically affixed to the can as it rotates.

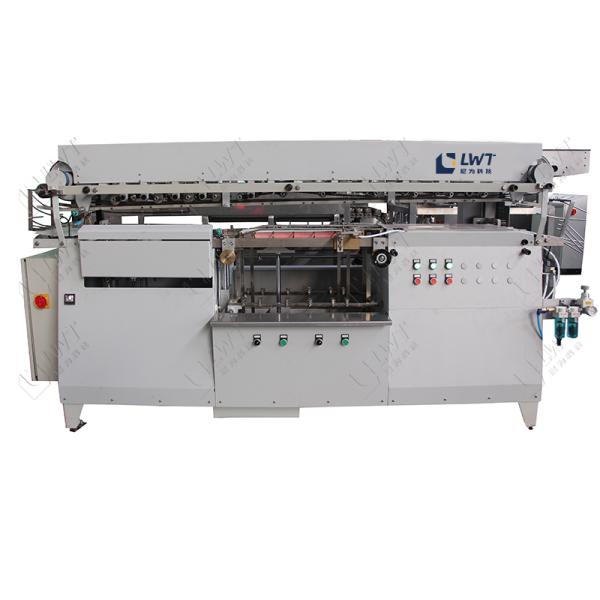

Horizontal wet glue labeling machine
Vertical Wet Glue Labeling Machine
It is stable and reliable to apply slurry to pick up labels with high working efficiency. Screw is used to feed the bottle, so the bottle runs stably and the positioning is reliable. The rolling mechanism is adopted to ensure the good adhesion of labels, enhance the reliability of labeling.

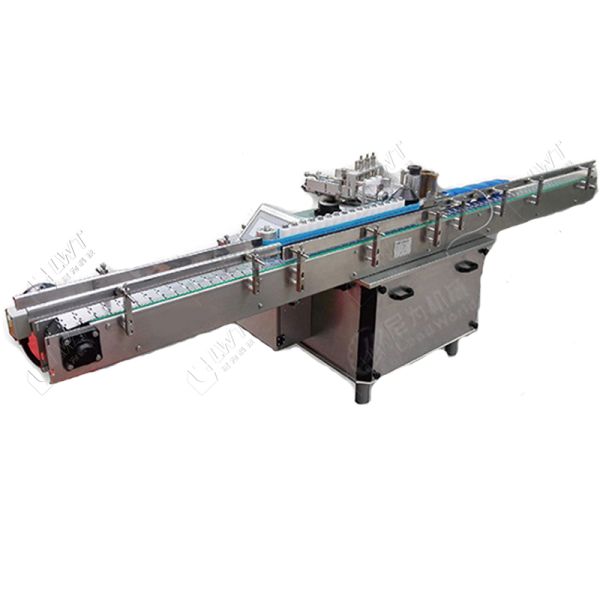

Vertical wet glue labeling machine
Multi-Function Labeling Machine
Customers can install other mechanisms as needed to meet usage requirements. Product counting, output settings, labeling quantity, and output can all be displayed on the touch screen. Multiple groups of parameter configurations allow management of parameters for multiple application bottle types.
Multi-function labeling machine
