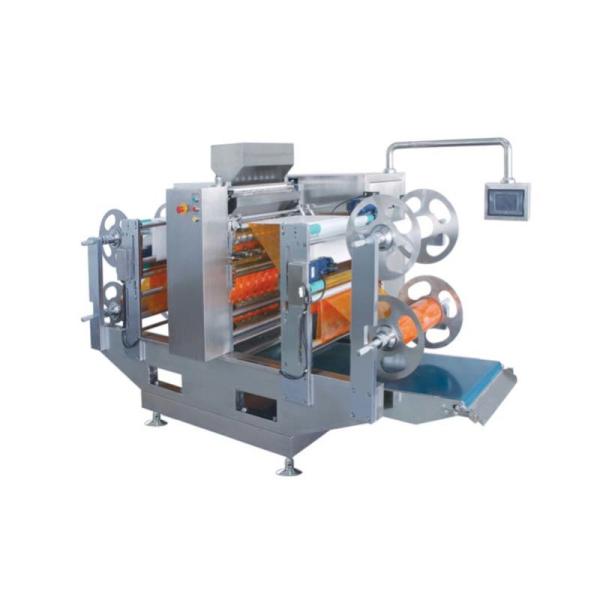

Back Sealing Packaging Machine 18000mm 5.5KW Automatic Packing

The SED-450-8KDB-A is a fully servo-driven packaging machine featuring PLC control, stepless speed regulation, and intuitive human-machine interface operation. Designed for low noise and user-friendly performance.

• Advanced Motor System: Five independent servo motors power each station including vertical sealing, horizontal sealing with easy-tear notch, secondary horizontal sealing with batch number printing, dotted-line cutter, and cutting knife
• Precision Alignment: Imported Banner components ensure accurate alignment with deviation range of 0.5mm to 1mm
• Quick Adjustment: Bag length can be adjusted via touchscreen in under 1 minute with automatic station alignment
• Batch Number Printing: Independent servo-driven system delivers clear, accurately positioned batch numbers
• Temperature Control: Omron intelligent controllers maintain sealing temperature with ±1°C accuracy
• Precision Metering: Triangular measuring cups ensure high accuracy with adjustable volume settings
• Automatic Correction: Optical sensor system maintains film alignment with 0.5mm to 1mm accuracy
• GMP Compliance: All material-contact parts use 316L stainless steel; other components use 304 stainless steel or anti-corrosion treatment

This equipment can be integrated into automated production lines for complete packaging solutions including feeding, bag making, printing, cutting, and cartoning operations.

Ideal Applications: Packaging of loose, non-sticky powdery and granular materials in pharmaceutical, food, pesticide, and daily chemical industries. Suitable for products like small pills, sugar, salt, cereal, seeds, and Chinese medicine granules.
