Z Type Bucket Elevator 20m3/h Capacity for Food Processing

The Z-type elevator is a highly space-efficient material conveying equipment designed for vertical lifting and horizontal transportation of materials. Its innovative Z-shaped path operation makes it ideal for facilities with limited space while maintaining high efficiency and material protection.

The drive mechanism powers a closed circulating chain with attached hoppers that move along a Z-shaped path. Materials are loaded using inflow feeding (reducing breakage), vertically lifted to the required height, then horizontally conveyed before being discharged. The enclosed structure minimizes dust and material leakage throughout the process.

• Optimized space utilization with Z-path operation for vertical and horizontal transport in compact layouts
• Versatile material handling for powders, granules, and small blocks with customizable hopper options
• Multiple feed/discharge port configurations for complex production processes
• Energy efficient operation with variable frequency speed regulation
• Reliable performance with automatic tensioning and enclosed construction
• Material protection through inflow feeding and dust-proof enclosure

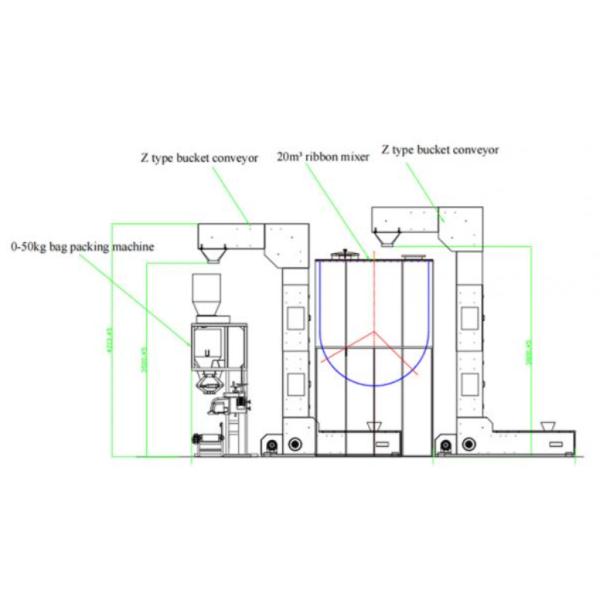

1. Z-type conveyor feeds material into mixer
2. Mixer with optional spray/heating devices
3. Z-type conveyor transports mixed material to packing machine
4. Packing machine seals finished product
