API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling

Categories	Cementing Float Equipment
Place of Origin:	Jiangsu, China
Brand Name:	SWS
MOQ:	1
Dimension:	5"-20"
Weight:	10 KG
Thread type:	STC LTC BTC EUE NUE XC
Material:	Carbon Steel/Aluminum Alloy
Core Components:	valve
Bore O.D.:	6", 7 5/8", 10 5/8", 14 3/8"
Bore I.D.:	4 3/4", 6 1/4", 8 5/8", 12 3/8"
Min Bore:	2", 2 3/8"
Pressure rating:	70MPa
Temperature rating:	204°C
Valve size:	70mm, 90mm
Seal material:	HNBR
Spring material:	Phosphor bronze C510
Production capacity:	≥10000 pcs per month
MOQ:	1

Contact Now

Add to Cart

Company Info.

Jiangsu Service Petroleum Technology Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

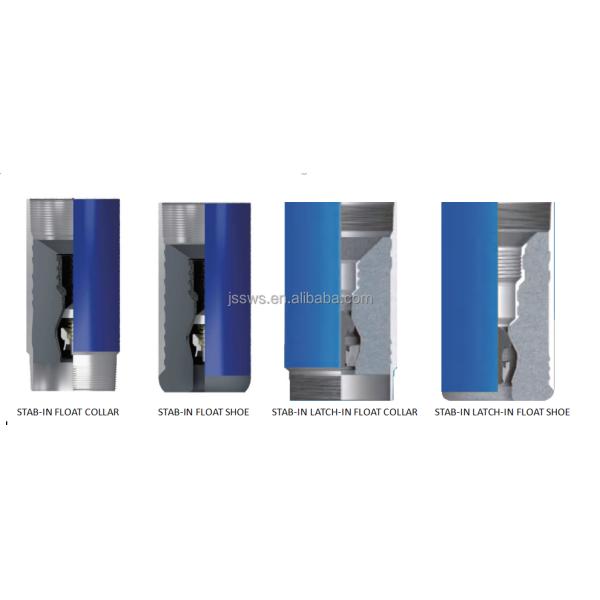

API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling

High Quality API Cementing Tools - Casing Float Collar & Float Shoe

API Cementing Tools - Float Collar and Float Shoe

Product Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Key Features and Benefits

Essential components for primary cementing operations in oilfield drilling
Guides casing to total depth while preventing contaminated mud entry
Provides landing point for casing wiper plugs
Reinforces lower end of casing string for improved structural integrity
Ensures precise cement slurry displacement accuracy
Hi Flow valves minimize fluid erosion and pressure drop (available in 70mm and 90mm sizes)
PDC drillable composite plastic materials for valve components
Standard seal rated to 150°C with optional 204°C seal capability

Technical Specifications

Valve body constructed with fiber phenolic material, rated for 70MPa and 204°C seal. Spring components sourced from Canada Victory Spring Company, made from phosphor bronze C510 material for high restoring force and drillability. Plunger seal top molded with HNBR, rated for 70MPa and 204°C operation.

Frequently Asked Questions

When can I get the price?

We typically provide quotes within 24 hours of receiving your inquiry. For urgent pricing requests, please indicate this in your email for priority handling.

Could I have prices of your products?

Yes, please contact us via email for current pricing. We respond to all inquiries within 24 hours.

Can I get a lower price if I order large quantities?

Yes, we offer volume discounts for larger quantity orders.

Do you inspect the finished products?

Yes, our QC department conducts thorough inspections at each production stage and performs final quality checks before shipping.

What about the lead time for mass production?

Production lead times vary based on order quantity and seasonal demand. We provide accurate timelines when processing your order.
