17mm cable Snap-On Ferrite Core Ring for Cable Noise Suppression and EMI Filtering

17mm cable Snap-On Ferrite Core Ring for Cable Noise Suppression and EMI Filtering

17mm cable Snap-On Ferrite Core Ring for Cable Noise Suppression and EMI Filtering
17mm cable Snap-On Ferrite Core Ring for Cable Noise Suppression and EMI Filtering
Categories Ferrite Rings Around Cables
Brand Name: VIIP
Model Number: V18017
Certification: Rohs Reach
Place of Origin: china
MOQ: 100PCS
Price: Negotiable
Payment Terms: T/T,Western Union
Supply Ability: 5k For one week
Delivery Time: 5-8 days
Type: Iron Powder Core
material: Nizn
Product name: ferrite materials
Application: Cable Noise Suppression
color: black
Model: V18017
Installation: Easy to snap onto cables
Compatibility: Suitable for various cable types
Mounting Type: Snap-On
Operating Temperature: -25°C to 85°C
Manufacturer: Various manufacturers available
Durability: Long-lasting
Country Of Origin: China
Impedance: Various options available
Certifications: RoHS, REACH,
Package Type: Bulk
Material: Ferrite
Frequency Range: 1MHz to 1GHz
Size: Various sizes available
Contact Now
Company Info.
Shenzhen VIIP Electronics Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

17mm cable Snap-On Ferrite Core Ring for Cable Noise Suppression and EMI Filtering

Clip On Ferrite Core For Transformer
Transformer Ferrite Core Rings for Cables and Welding Transformers - ROHS & REACH Compliant
Product Overview

Dimensions
Initial Permeability
850
Relative Loss Factor
16(0.1MHz)
Relative Temperature Coefficient
5~10
Saturation Magnetic Flux Density
350(1600A/m)
Remanence
200
Coercivity
20
Curie Temperature
>110
Electrical Resistivity
10 to the fifth power
Applied Frequency Range
1-1000
Density
4.7
No.
Specifications

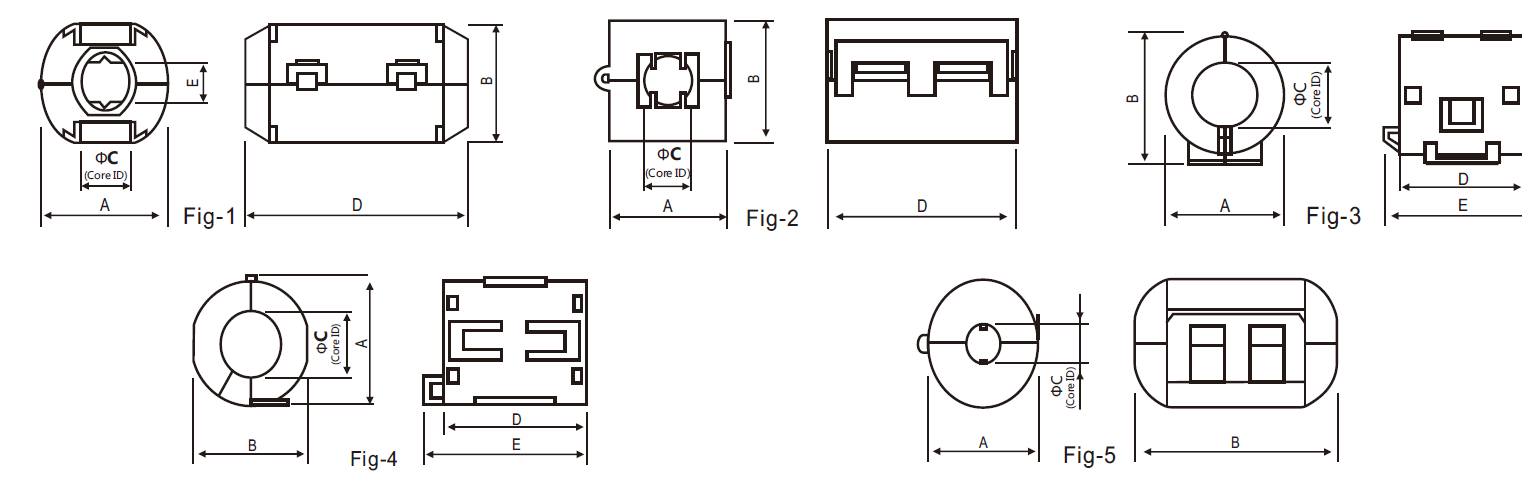

Fig
Dimensions:mm
Impedance(Ω)min
ΦA
B
ΦC
D
E
25MHz
100MHz
1
V18001A
1
13±1
11.8±1
3.5±0.8
25.2±1
2.5±1
135
260
2
V18001
1
13±1
12±1
5±0.8
25.2±1
2.5±1
90
190
3
V18002
1
16.5±1
14±1
7±0.8
30±1
2.5±1
80
195
4
V18002C
5
20.7±1
39.4±1
7.2±0.5
/
/
120
220
5
V18003
1
19.5±1
18±1
9±0.8
35±1
5.5±1
100
240
6
V18004
1
23.5±1
22.2±1
13.5±0.8
36±1
10.5±1
90
190
7
V18005
2
17.5±1
19.5±1
6.5±0.8
32.5±1
/
135
330
8
V18006
2
22±1
23.5±1
10±0.8
33±1
/
90
250
9
V18007
2
29±1
30±1
13±0.8
32.2±1
/
160
280
10
V18008
3
19.5±1
23±1
8±0.8
17±1
23±1
70
140
11
V18009
3
19.5±1
23±1
8±0.8
19.5±1
26±1
80
160
12
V18010
4
15±1
14±1
7±1
18±1
22±1
45
125
13
V18011
4
19.5±1
/
9±1
32±1
36±1
105
185
14
V18011A
4
20.5±1
20.5±1
11±0.8
32±1
36±1
80
155
15
V18011B
3
28±1
31±1
11.4±0.8
17.5±1
23.5±1
75
135
16
V18012
4
30±1
/
13±0.8
34±1
39±1
125
230
17
V18013
5
16.5±1
29.5±1
5±0.8
/
/
80
165
18
V18017
4
40.5±1
/
17±1
49.8±1
/
200
350
19
V18018
3
29±1
33±1
15±0.8
15.5±1
21.5±1
55
110
20
V18019
1
19.5±1
18±1
8±0.8
35±1
5.5±1
120
175
21
V18020
3
24±1
27±1
10±0.8
13.5±1
19±1
60
110
22
V18021
1
11.7±1
10.8±1
4±0.8
21.4±1
2.6±1
90
160
23
V18031
2
15±1
14±1
6±1
23±1
/
80
160
24
V18032
1
19.5±1
18.0±1
5.0±1
35±0.8
/
190
320
25
V18033
4
19.5±1
/
8±0.8
32±1
36±1
120
175
Product Characteristics
This ferrite ring is non-magnetic and features excellent eddy current isolation, low permeability, and superior interference suppression capabilities.
Technical Specifications
Applications
Widely used in power transformers, current transducers, instrument transformers, inductors, chokes, ballasts, voltage stabilizers and regulators, welding transformers, broad band transformers, filters, and various EMI/EMC applications.
Ferrite core installation and usage
Frequently Asked Questions
About VIIP
Q: Are you a manufacturer or trading company?
Shenzhen VIIP is a manufacturer of EMI/EMC products located in Shenzhen, Guangdong, China.
About Products
Q: What certification do you have for your products?
We have obtained CE, ROHS, FCC certifications and more.
About Sample Order
Q: Can I have a sample order for your products?
Yes, we offer product samples, including mixed samples.
