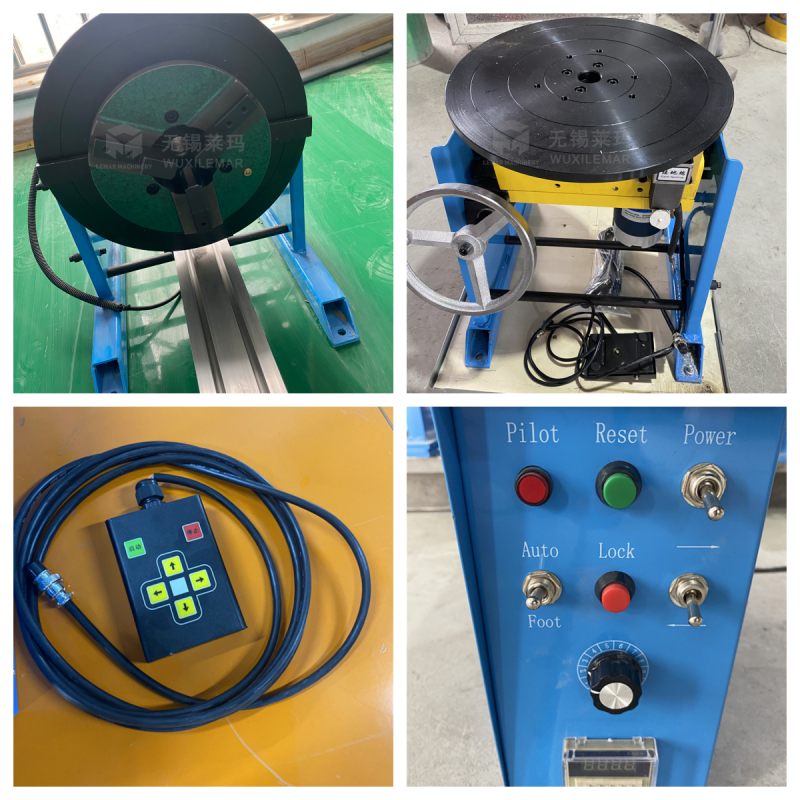

| Categories | Rotary Welding Positioner |
|---|---|
| Brand Name: | Lemar |
| Model Number: | BWJ-30 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | 500USD |
| Payment Terms: | L/C,D/A,T/T,D/P,Western Union |
| Supply Ability: | 500pcs/month |
| Delivery Time: | 3-5 days |
| Packaging Details: | Wooden box |
| Loading weight: | 300kg |
| Vertical loading: | 150kg |
| Rotation speed: | 0.2-2.5r/min |
| Drive motor: | DC 200W |
| Postioner table diameter: | 500mm |
| Tilt angle: | 0-90° |
| TIG Wire feeder: | Optional |
| Oscillator: | Optional |
| Company Info. |
| Wuxi Lemar Machinery Equipments Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Specification | Value |
|---|---|
| Horizontal Loading Weight | 300kg |
| Vertical Loading Weight | 150kg |
| Drive Motor | DC 200W |
| Rotate Angle | 0-360° |
| Tilt Angle | 0-90° |
| Rotation Speed | 0.2-2.5 r/min |
| Positioner Table Diameter | 500mm |
| Seat type welding positioner | This is the most widely used type. Its worktable can rotate around its own axis, and the entire worktable can also tilt or flip, offering high flexibility. It is suitable for welding small to medium-sized workpieces such as machine bases, flanges, pipe fittings, and discs, weighing from approximately 0.5 tons to 50 tons. |
|
| Dual-axis P type welding positioner | The main function of a dual-axis welding positioner is to assist welders or welding robots in flipping and rotating workpieces. |  |
| L-type welding positioner | It has two degrees of rotation freedom, providing good openness in the operating space. L-type positioners are more suitable for complex components such as loader front frames. |  |
| Headstock tailstock positioner | It uses a headstock (active rotation) and a tailstock (driven support) to clamp the workpiece. It is suitable for long shafts, box beams, or some complex-shaped components, and has a large load-bearing capacity and stable operation. It is often used in conjunction with welding robots. |  |
| Combined Welding Positioner | It adopts a modular structure, making it very convenient to assemble and disassemble the various components. It can precisely lock the workpiece at any angle. Combined with a chuck and pneumatic centers, it ensures the accuracy of workpiece positioning. Accessories such as the welding torch holder can also be freely adjusted. |  |
|
