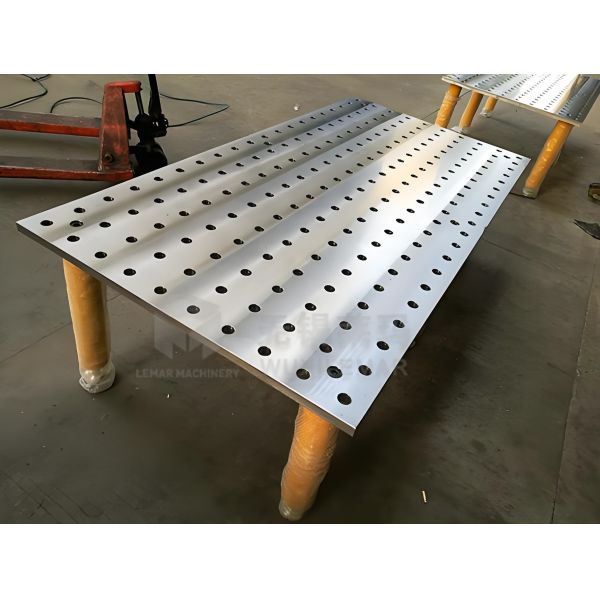

100mm Grid Holes Fixturing Table Q355 D28 2D Large Welding Table

The D28 Modular 2D Welding Table with 100mm Grid Holes is a two-dimensional flexible welding fixture platform specifically designed for heavy-duty, large-sized workpieces. Its core features are Φ28mm precision positioning holes and a 100×100mm standard grid hole system. It boasts high load capacity, high rigidity, quick clamping, and unlimited expandability, making it a mainstream heavy-duty welding/assembly fixture solution for heavy steel structures, engineering machinery, shipbuilding, and other industries.

• Greater Flexibility: One platform adapts to hundreds of workpieces, eliminating the need for frequent production of custom fixtures and reducing tooling costs by over 70%.
• Higher Efficiency: Quick assembly and disassembly reduce production preparation time from days to minutes.
• More Stable Accuracy: Grid-hole positioning ensures consistent workpiece clamping accuracy, resulting in stable welding quality and a low defect rate.
• Stronger Scalability: Multiple units can be freely combined to easily handle extra-large workpieces and flexibly expand production capacity.

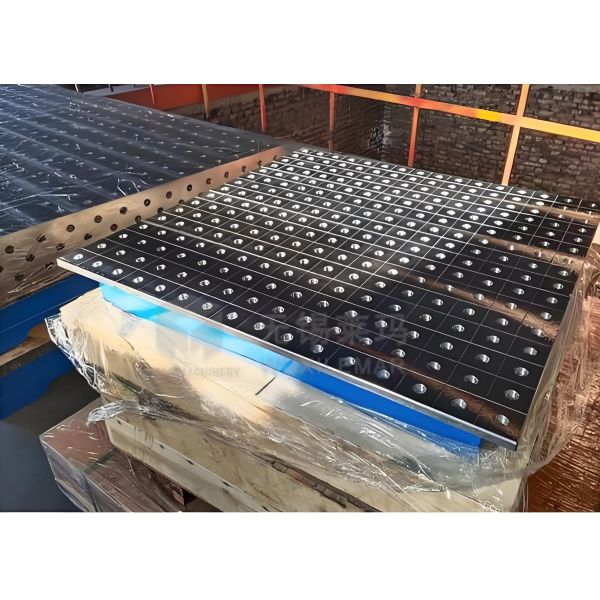

• The D28 Modular 2D Welding Table with 100mm Grid Holes features a modular design with separate packaging for the tabletop, support frame, and fixtures, ensuring safer transportation, smaller volume, and lower shipping costs.
• Installation is simple, requiring only a standard wrench for assembly, with no on-site welding or professional adjustments needed. A single person can quickly complete the assembly.
• It supports seamless splicing of multiple units, allowing expansion from a single small platform to an extra-long and extra-wide large production line platform, suitable for welding large workpieces.
• After splicing, the overall flatness and hole alignment accuracy remain consistent, allowing it to be used as a single, extra-large workbench.

Crafted with precision, empowering large-scale manufacturing. The D28 Modular 2D Welding Table with 100mm Grid Holes features a Φ28mm precision hole system, a 100×100mm standard grid, a 24–27mm thickened tabletop, and a heavy-duty quick-locking clamping system. It provides a high-rigidity, high-load-bearing, quick-clamping, and infinitely expandable two-dimensional welding fixture solution for heavy steel structures, construction machinery, shipbuilding, and other fields. We ensure precision through rigorous manufacturing processes and enhance efficiency through modular design, helping companies achieve precise positioning, stable welding, and efficient production of heavy workpieces, making it an indispensable basic tooling platform for large-scale manufacturing workshops.
