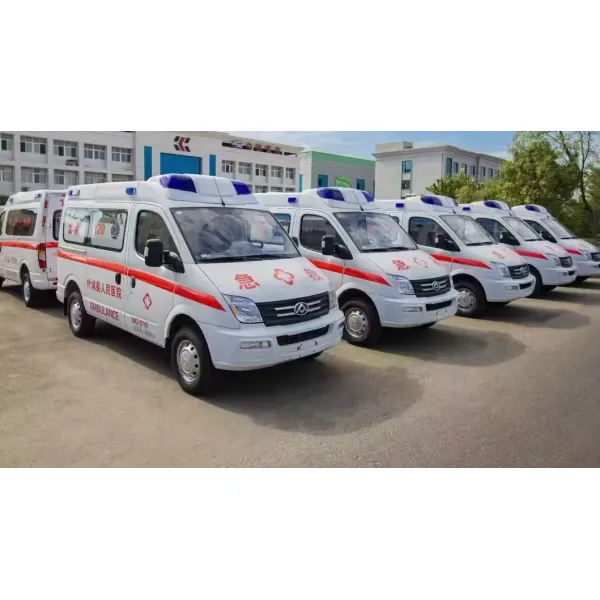

Type I and Type II Automatic Transmission Ambulance

Type I and Type II Automatic Transmission Ambulance

Type I and Type II Automatic Transmission Ambulance
Type I and Type II Automatic Transmission Ambulance
Categories Ambulance
Model NO.: CLW
Type: Ambulance
Certification: ISO9001
Transmission Type: Manual
Fuel: Gasoline
Emission Standard: Euro 4
Length: 3-8m
Medical Equipment: With Medical Equipment
Horsepower: 160-210hp
Axle: Single
Condition: New
Transport Package: Bulk Ship, RO-RO, Container
Specification: 4950X1998X2480, 2540
Trademark: CLW
Origin: Suizhou China
Production Capacity: 500 Unit/Month
MOQ: 1
Price: US $15,000-55,000
Place of Origin: CHINA
Packaging Details: Nuked
Delivery Time: 15 working days
Payment Terms: T/T,LC,
Supply Ability: 150 sets/month
Contact Now
Company Info.
Chengli Special Automobile Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

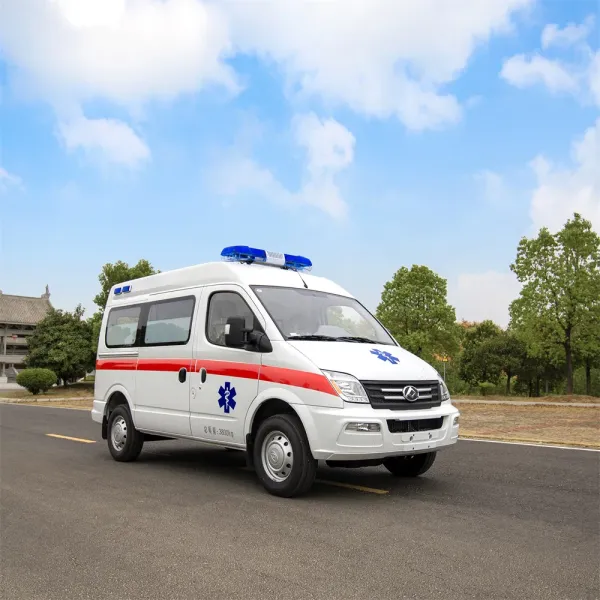

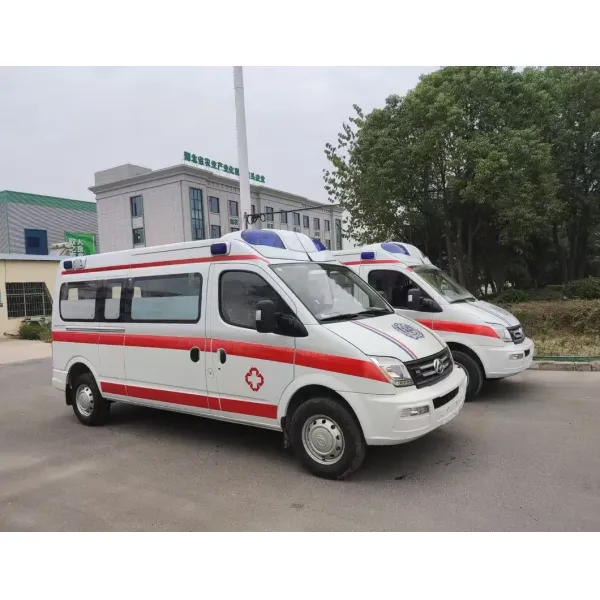

Type I and Type II Automatic Transmission Ambulance


 Type I and Type II Automatic Transmission Ambulance
Ambulance  the use of domestic leading boron steel plate, high steel chassis casting, multiple beams to increase the strength; the overall body centre of gravity is low, more stable, and effectively ensure the safety of the driver; medical cabin space is wide and reasonably designed; the whole car adopts the domestic leading medical car modification technology, suitable for all kinds of hospitals and emergency centres, especially suitable for patient transfer and city first aid.


order numberProduct model name
Vehicle technical parameters
  1.
overall dimensions of a car mm:4950×1998×2480,2540
  1.
wheel base mm:3100
  1.
Vehicle full load total mass kg:3800
  1.
suspended systemFront McPherson type independent suspension / rear leaf spring non-independent suspension
  1.
Fuel type:diesel oil
  1.
fuel tank capacity (L):80
  1.
engine typeSC20M125.1Q6
  1.
Chassis modelSH6521A2DB
  1.
operate mode:turbocharging
  1.
displacement:1996
  1.
Power / horsepower:93(kw)/126.48(ps)
  1.
curb weight:2420
  1.
effluent standard:country
  1.
Drive wayFront-engine
  1.
transmission:6 Speed manual transmission
  1.
Max. safety speed of km/h:160
  1.
Tire specifications and models215/75R16LT
  1.
brake assemblyFront disc rear disc
  1.
Rated passenger carrying capacity (including the driver)4-7 People

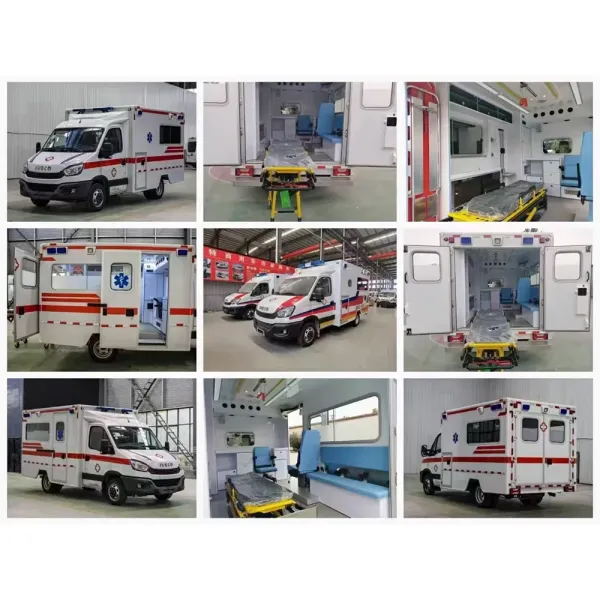

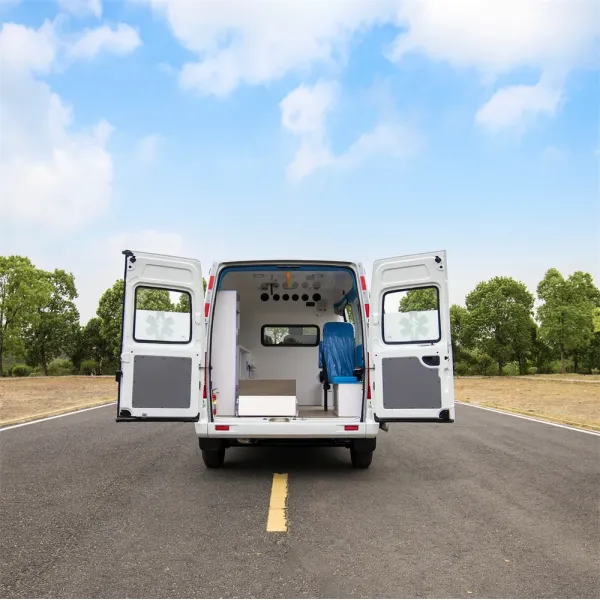

  • Interior trim configuration of the medical cabin:
order numberdescriptionquantity
Body coating
  1.
White body + red strong reflective belt and emergency map badgeA set
  1.
2 / 3 on the medical cabin windowA set
Alarm, lighting system
  1.
The 100W alarm deviceA set
  1.
Front roof minister strip lamp (or Megaolan lamp)A set
  1.
The left and right side of the body are flashing lightsTwo cups
  1.
Internal LED lighting in the medical cabinFour cups
  1.
The 500W sine-wave inverter systemA set
  1.
AC / DC (220V, 12V) power socket set3+1
  1.
Automobile low-voltage wire harness: meet the low-voltage and high-current characteristicsA set
Medical class configuration
  1.
Round disinfection lampA set
  1.
Heating and cooling gas system of the medical cabinA set
  1.
Medical cabin two-way ventilation systemA set
  1.
The medical cabin is mounted with yellow nylon antibacterial handrailsA set
  1.
Infusion hanger on top of medical cabinA set
  1.
Cab and medical compartment partition: with push-pull glass windowsA set
  1.
Original interior roofA set
  1.
Interphone systemA set
  1.
  1. The Walker plate medical device cabinet is installed on the left side of the medical cabin
  2. The Walker plate vertical oxygen tank is installed on the left side of the medical cabin
A set
  1.
  1. Independent forward seat on the right side of the medical cabin
  2. 2 people long soft bag seat and seat belt on the right side of the medical cabin
A set
  1.
1. Two 10-liter medical oxygen cylinders and special shock absorption hoops are installed in the oxygen tank
2. Hidden oxygen tube system of the medical cabin
3. The medical cabin is installed with 2 national standard oxygen ports
4. One humidified bottle		A set
  1.
The whole vehicle is installed with hidden safety embedded partsA set
  1.
- -Environment-friendly wear-resistant, anti-skid medical floor and cushion layerA set
Special equipment
  1.
Get on the stretcherOne
  1.
Stainless steel stretcher guide rail pad plateOne
  1.
Stainless steel stretcher guide plateOne
  1.
fire extinguisherOne
  1.
trash canOne
