0.85 Inch Square Type With MCU Interface TFT LCD Display
Product Overview
| Product: | 0.85" Inch Tiny TFT IPS | Resolution: | 128x128 Pixels |
|---|
| Driver IC: | NV3023A Or Equivalent | Outline Dim.: | 17.6 X 20.6 X 1.45 Mm |
|---|
| Touch Screen: | Without Touch (Resistive And PCAP Touch Optional) | Cover Glass Dimension: | Customizable |
|---|
| Viewing Direction: | All Viewing Angles IPS | Interface: | MCU 8 Bits (customizable) |
|---|
| Connection: | Soldering Type (can Be Customized) | Pin Number: | 28 Pins (Customizable) |
|---|
| Surface Luminance: | 350 Cd/m2 (nits) | Backlight Type: | White LED |
|---|
Product Introduction

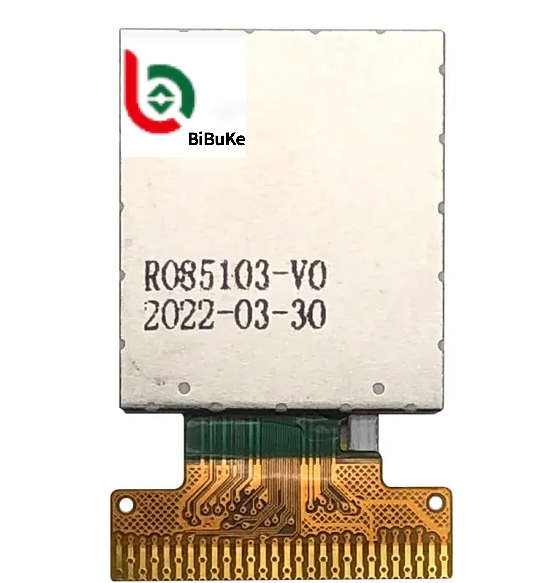

0.85-inch square TFT liquid crystal display (with single-chip
microcontroller interface) is a small-sized color liquid crystal
display module specifically designed for embedded systems. The core
adopts IPS-TFT panel technology and is equipped with common
communication interfaces for single-chip microcontrollers (MCU).
Core Parameters and Features
- Size: Physical size 0.85 inches (square), shape approximately
17.6×20.6mm, display area 15.2×15.2mm
- Resolution: 128×128 pixels, square dot matrix, clear and detailed display
- Color: 65K colors (RGB 16 bits), bright colors, good color reproduction
- Panel type: IPS full-view, viewing angles from top, bottom, left, and right
approaching 180°, no color shift or color change
- Driver and interface: Built-in GC9107, ST7735, or NV3023 etc. driver chips; supports
8-bit MCU parallel interface or 4-wire SPI serial interface, can be
directly connected to mainstream MCUs such as STM32, Arduino,
ESP32, 51 microcontroller, etc.
- Electrical characteristics: Working voltage 2.4V-3.3V, low power consumption; white LED
backlight, brightness about 300-450 cd/m², clear visibility both
indoors and outdoors
- Structure: Thin module (thickness approximately 1.45mm), FPC flexible ribbon
cable connection, supports soldering or socket connection
Main Applications
Due to its small size, full viewing angle, low power consumption,
and easy driving characteristics, it is widely used in various
compact intelligent devices and portable products:
Smart Wearable Devices
- Smart wristbands and watches: Display time, heart rate, steps,
message notifications and other small dial interfaces
- Bluetooth earphones charging case, smart rings: Status and battery
level indicators
Healthcare Equipment
- Portable glucometer, oximeter, thermometer: Display measurement
values and results
- Small hearing aids, rehabilitation devices: Parameter and mode
display
Consumer Electronics and Smart Home
- Mini Bluetooth speaker, TWS earphone case: Mode, volume, battery
level display
- Smart locks, cameras: Status indication and menus
- E-cigarettes, beauty devices: Working parameters and gears
Industrial and Industrial Control
- Small sensors, transmitters: Real-time data display
- Portable testers, handheld devices: Menu and results
- Internet of Things nodes (IoT): Status and simple interaction
interface
Other Applications
- Cryptocurrency hardware wallet
- Toys, drone remote controllers, small instruments
